Digital Projection E-Vision Laser 7500, 8500 & 10K Series
Connection Guide
SIGNAL INPUTS
Rev D August 2017

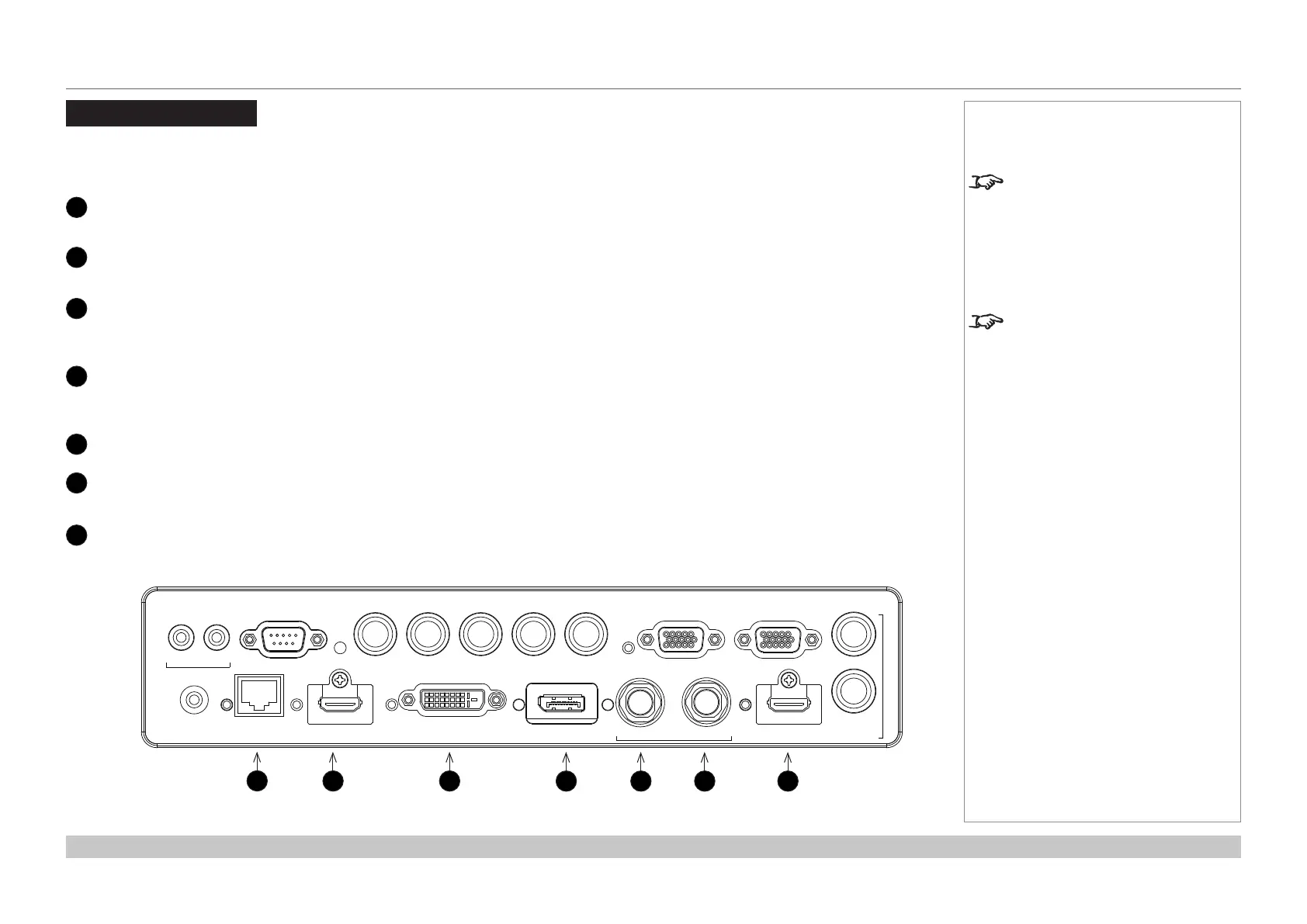

Signal Inputs
Digital inputs and outputs
1
HDBaseT
Receives digital signal from HDBaseT-compliant devices.
2
HDMI 1
HDMI 1.4a input. Connect an HDMI cable to the connector.
3
DVI-D
This input can receive digital signal from a compatible source.
Supports sources up to 1920x1200 resolution, 24-60 Hz. Supports HDCP.
4
DisplayPort
DisplayPort 1.1a input. Connect a DisplayPort cable to the connector.
Supports sources up to 1920x1200 resolution, 24-120 Hz. Supports HDCP.
5
3G-SDI in
6
3G-SDI out
Connect a 3G-SDI cable to distribute the 3G-SDI signal to another projector.
7
HDMI II
HDMI 1.4 input. Connect an HDMI cable to the connector.
Notes
For simultaneous HDBaseT and
LAN connectivity, a third-party
distribution product can be utilised
to combine HDBaseT video stream
with LAN connection for delivery to
the projector.
While the projector can receive
100/120Hz and display 3D at
100/120Hz, video processing is
limited to 60Hz.
WIRED
REMOTE HDBaseT/LAN HDMI 1 DISPLAYPORTDVI-D IN OUT HDMI II
IN
TRIGGER
I II
RS-232 V H
B/Pb
G/Y R/Pr VGA
OUT
MONITOR OUT
SDI 3D SYNC
1
2 3
4 5 6 7
