Digital Projection E-Vision Laser 7500, 8500 & 10K Series
Connection Guide
SIGNAL INPUTS
Rev D August 2017

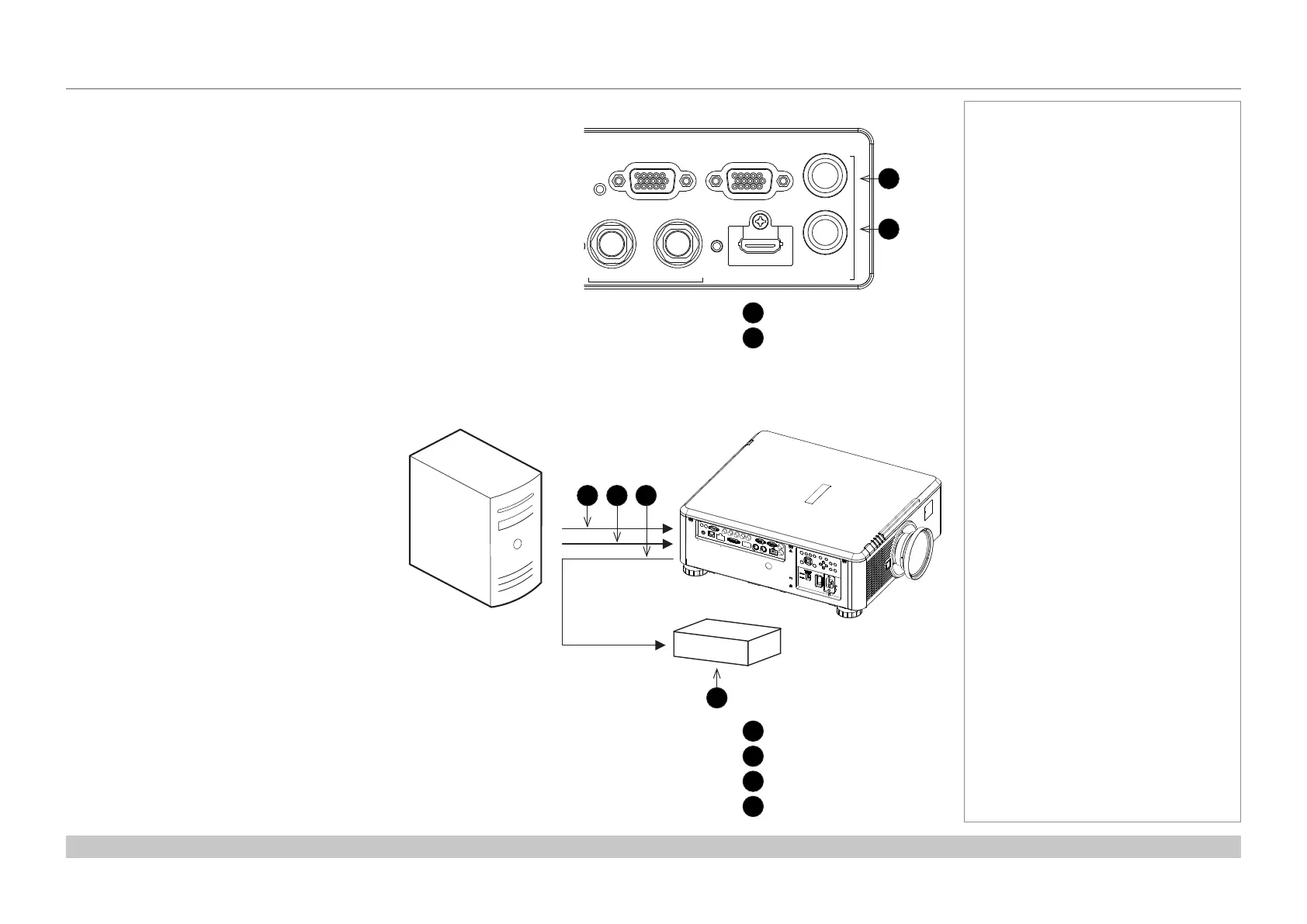

3D Sync
3D Sync in
Sync input signal.
• Connect the 3D sync from your graphics card
or server.
3D Sync out
Sync output signal. This may be affected by the
Sync Offset setting in the 3D Control menu.
Connect this to your IR emitter or ZScreen.
Notes
3 4 5
6
3
3D input
4
3D Sync In
5
3D Sync Out
6
IR emitter or ZScreen
1
Sync Out
2
Sync In
WIRED
REMOTE HDBaseT/LAN HDMI 1 DISPLAYPORTDVI-D
IN OUT HDMI II
IN
TRIGGER
I II
RS-232 V H
B/Pb
G/Y R/Pr
VGA
OUT
MONITOR OUT
SDI 3D SYNC
1
2
