11. Filling of external cylinders from the internal storage tank
The function is to be started manually.
1. Connect the SF
6
gas cylinder to the coupling pos. 105. The coupling is on the left side of the service
cart. Open the cylinder valve on the SF
6
gas cylinder. Open the ball valve on the storage tank.
The connecting hoses must be evacuated or filled with SF
6
-gas.

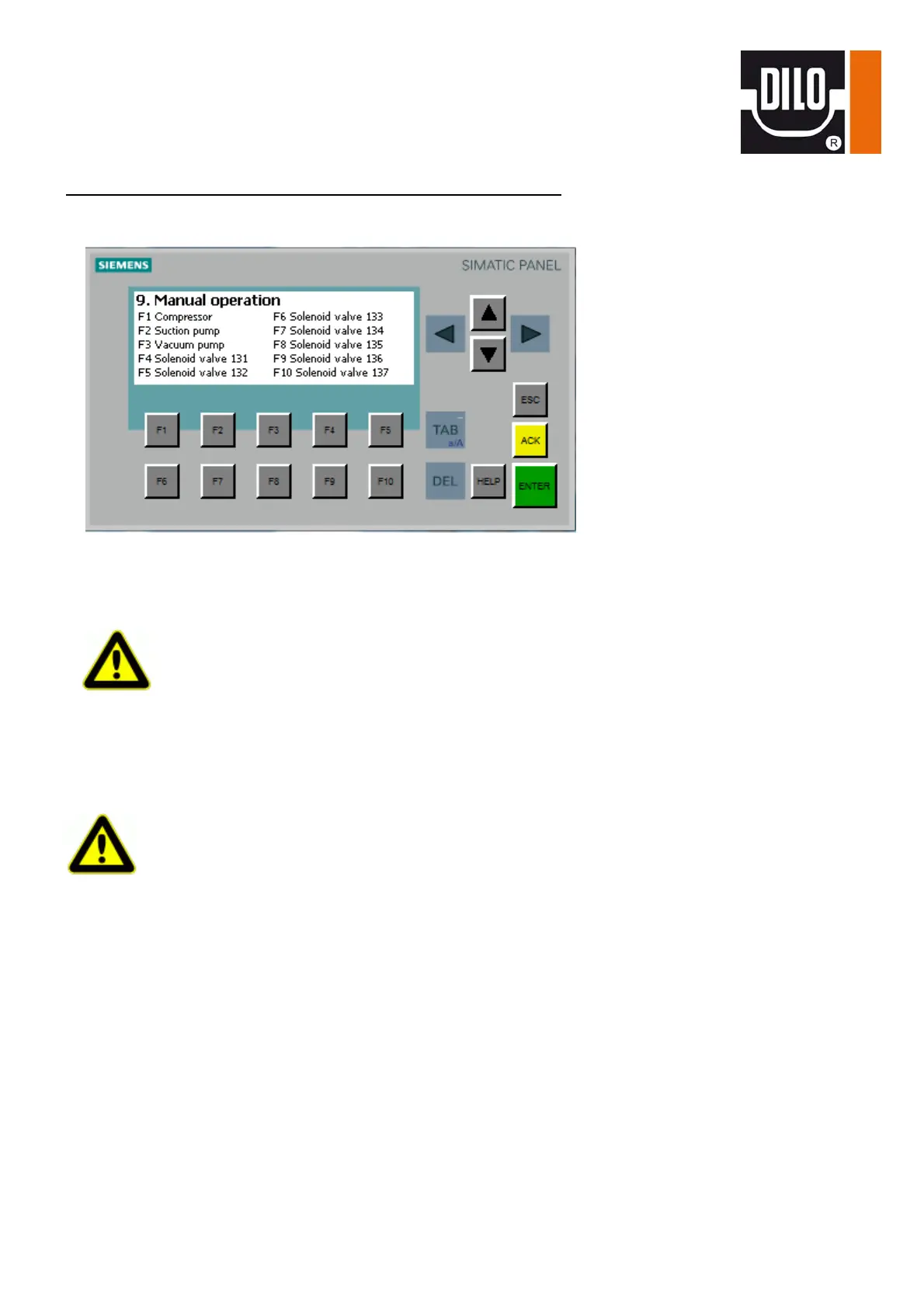

2. Start the compressor with the <F1> key.
3. Preselect the solenoid valve pos. 137 with the <F8> key. This solenoid valve only opens if the
evaporator has reached its operating temperature.
4. The cylinder pressure can be read on the gauge pos. 162 (at coupling pos. 105).
Observe the filling weight of the storage tank (1kg/l)!
5. After having reached the desired filling weight in the SF
6
cylinders switch off the solenoid valve pos.
137 and the compressor by means of the corresponding keys on the operating panel.
6. Close the cylinder valve on the SF
6
gas cylinder. Establish pressure compensation in the device and
disconnect the gas cylinder.
