Dry-running compressor | TM 5.0 B
www.dilo-gmbh.com | C 1610-10 | Page 11 / 18
Transport
To avoid damage to devices and life threatening injuries during transport:
lifting slings must correspond to local health and safety regulations!
slings should be chosen in accordance with the weight of the device.
(Weight see dimension sheet)
Only qualified and authorized persons should carry out transport operations.
Installation
The compressor is to be mounted on a frame correspondingly prepared.
Level up unevenness on the frame by distance disks.
The screws or nuts must be fastened.
Connections
Suction and back pressure side consist of a DILO union ML1-AD10-3 P.
The suction pressure must not exceed the indicated suction pressure range.
Therefore the suction pressure is to be reduced to its max. value by a pressure reducer before
compressing.
Furthermore a pressure-controlled switching contact (e. g. contact gauge or manostat) should be
installed on the back pressure side which turns off the compressor if the back pressure is
too high.

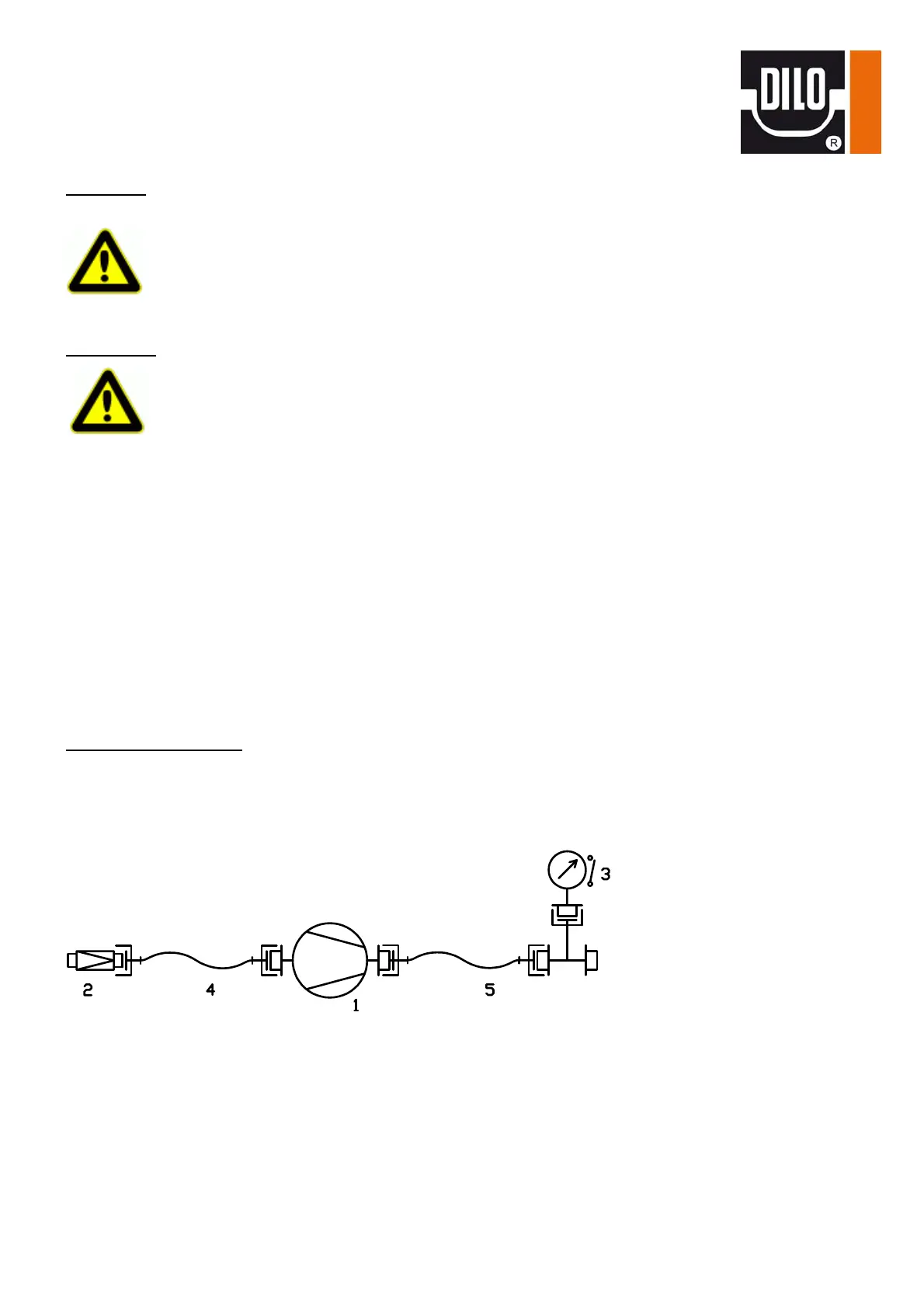

Connecting proposal:
1 = Dry running compressor
2 = Pressure reducer
3 = Contact gauge
4 = Hose
5 = Hose
Danger
Warning
