ASSEMBLY / DISASSEMBLY PROCEDURE

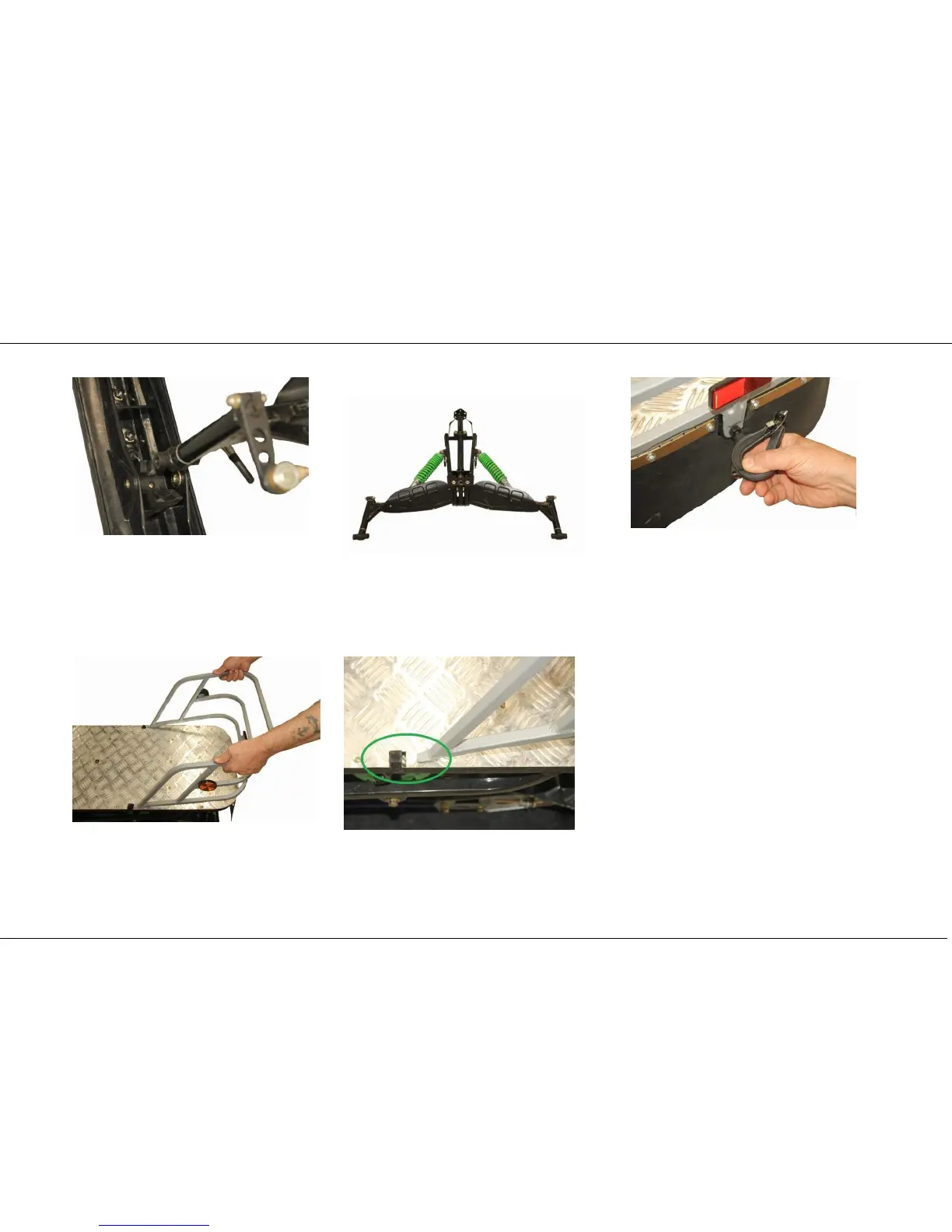

28. Take off skis from the front suspension
block.
29. After this procedure the ski block will
look like specified in the picture.
30. Unscrew a towing eye.
31. Take off a boot. Pay attention at a boot fixation method on the
snowmobile frame (highlighted in green).
PERFORM THE
SNOWMOBILE ASSEMBLY
IN REVERSE SEQUENCE
AFTER ASSEMBLY ONE SHOULD
CHECK A FUNCTION OF ALL
UNITS OF THE SNOWMOBILE
