TRACK ADJUSTMENT:
For track adjustment it is necessary to:

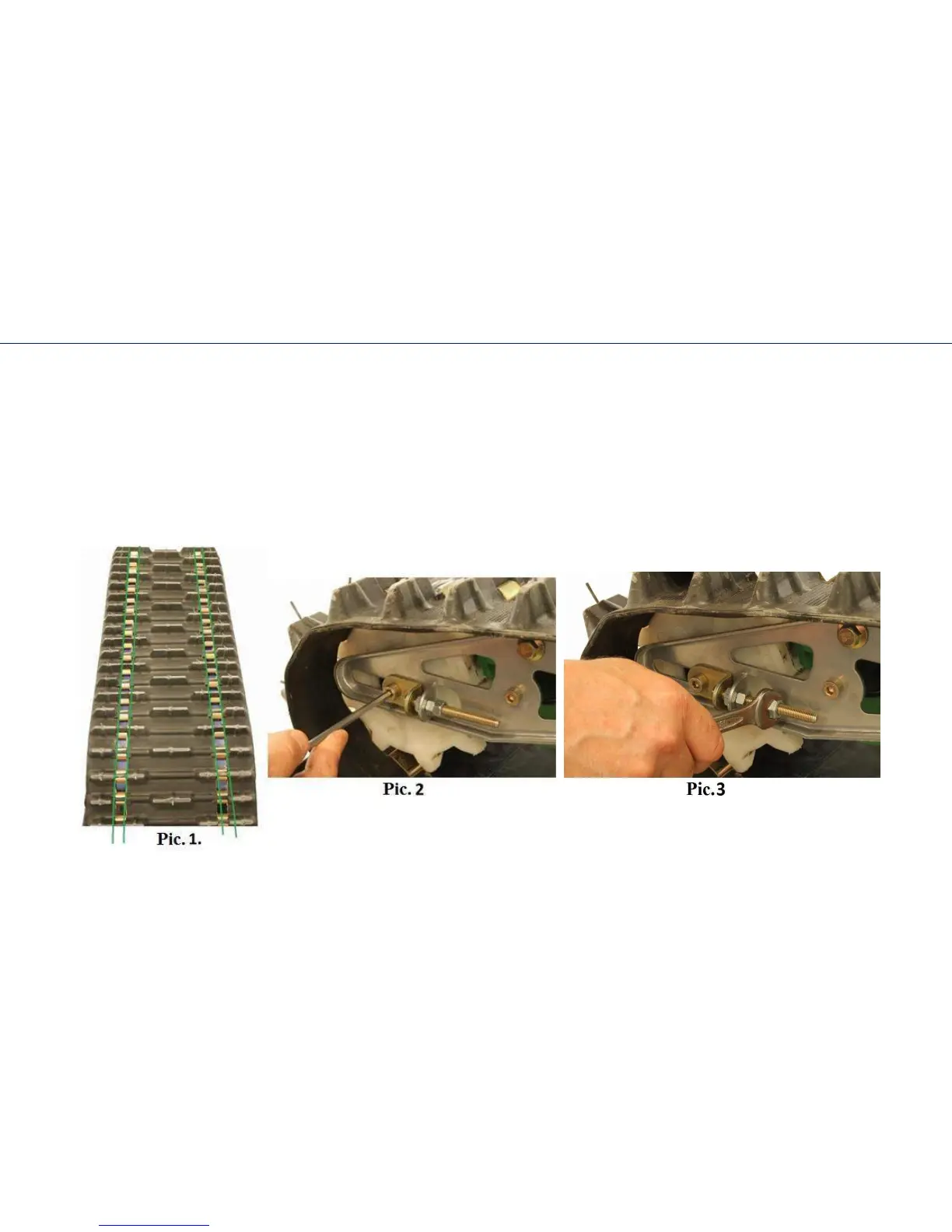

1. Preparation before adjustment. Track adjustment as well as its centering should be performed on a disconnected from the
remaining snowmobile track block. Check the track block (pic. 1). Clean a running gear from snow, ice and mud and check lining
wear of slides, effortlessness of rollers rotation, integrity of rollers circumference, plays in suspension.
2. Checking and regulation of track adjustment. Release tensioner fixing bolts (pic. 2, a 5 mm Allen key),
half nut (pic. 3, 13 mm spanner wrench), and track adjuster and recoil group nuts (pic. 4, 13 mm spanner wrench). Then, screwing up
track adjuster and recoil group nuts (pic. 5, 13 mm spanner wrench), look at track adjustment at a place specified in picture 6. Track
shouldn't slack, but at the same time it should sag by 1,5 – 2 cm at slight pressing with a hand.
