DINGO 150 - Structure of the Snowmobile

To Next Page

To Previous Page

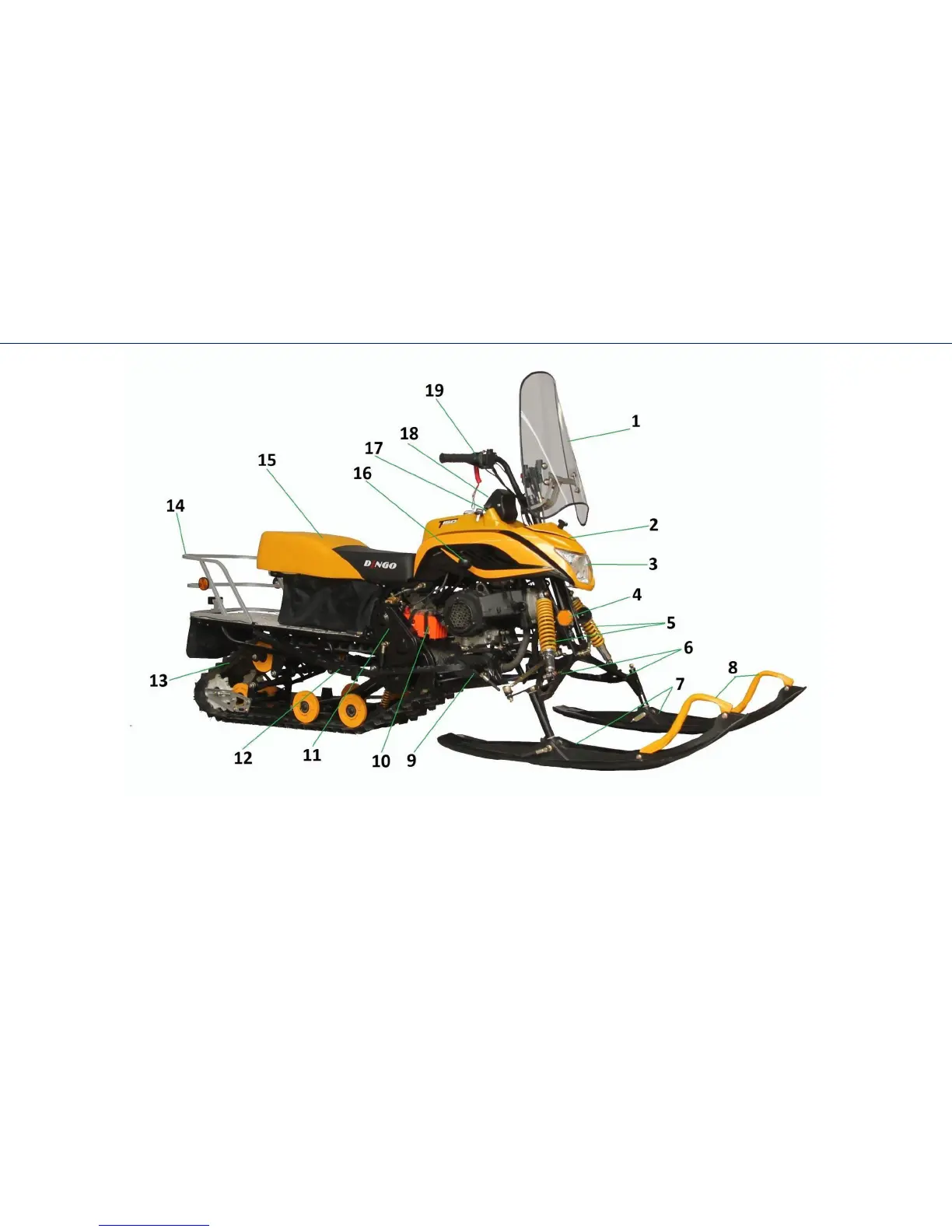

1. Wind deflector; 2. Motor block plastic; 3. Headlamp; 4. Head side deflectors; 5. Front shock insulators; 6. Front suspension levers;

7. Skis; 8. Ski end (handle); 9. Damper; 10. Accumulator battery; 11. Control chain protection cap; 12. Footboard; 13. Track; 14. Boot

/ lift handle; 15. Seat; 16. Transmission selector lever; 17. Ignition lock; 18. Instrument panel; 19. Wheel;

STRUCTURE OF THE SNOWMOBILE
