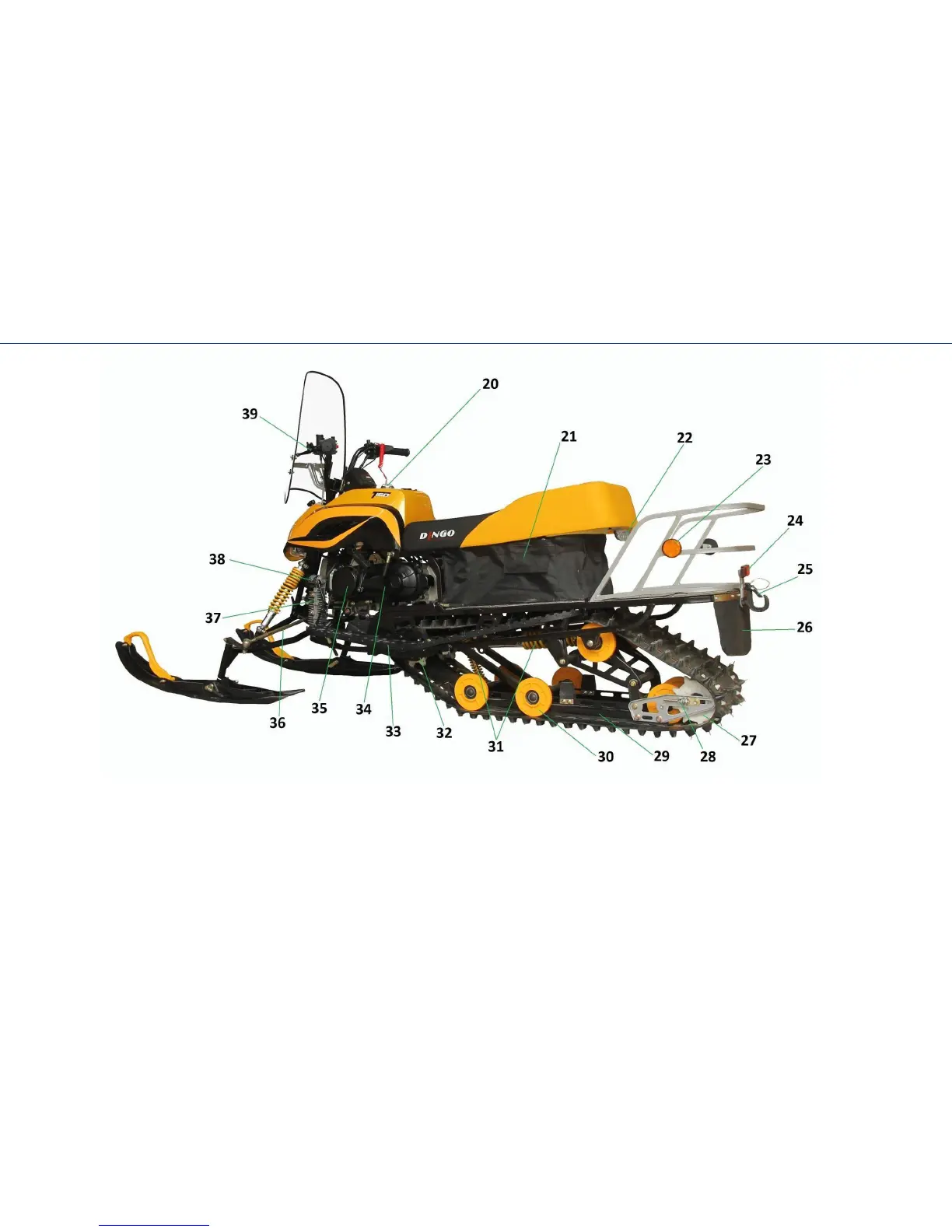

STRUCTURE OF THE

SNOWMOBILE

20. Fuel tank; 21. Closed undersaddle space; 22. Rear light / rear lamp; 23. Side deflector; 24. Side deflector; 25. Tow

bar; 26. Track apron; 27. Control shaft (directing); 28. Track adjustment; 29. Plain slideways (slides); 30. Lower track

wheel; 31. Insulator; 32. Control shaft; 33. Footboard; 34. Engine; 35. Engine manual starting control; 36. Control arm;

37. Oil radiator; 38. Oil filter; 39. Service brake control.

STRUCTURE OF THE SNOWMOBILE
