SETTING THE LENGTH OF CUT
FIGURE 48
Two factors will determine the length of cut:
1. The number of knives on the cutter head.
2. The length of cut (LOC) sprocket (item A) driving the feed rolls. LOC L (Low speed) or LOC H (High speed).

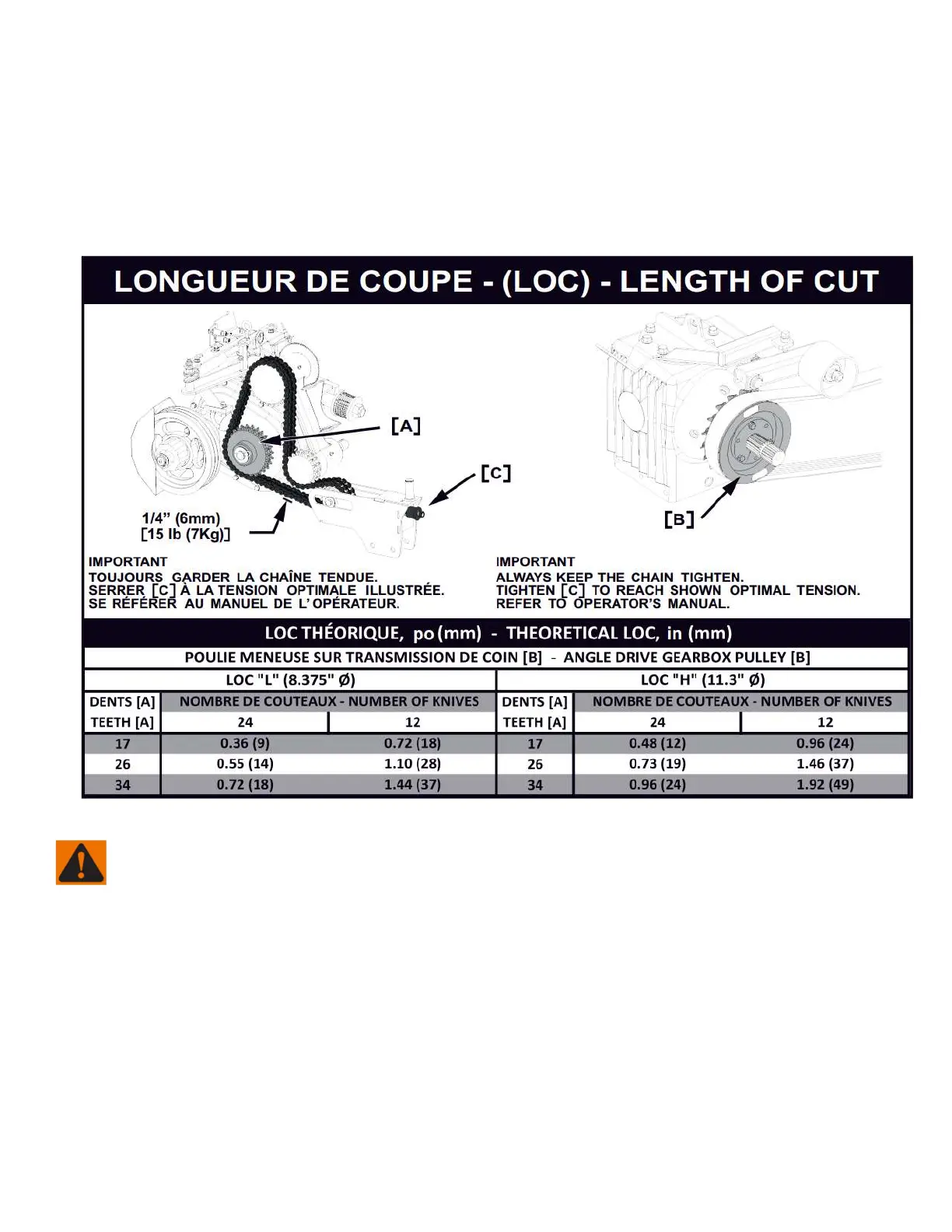

Refer to the following chart for the appropriate settings. Optional length of cut (LOC) range LOC « L » and LOC « H » are
factory installed but can be modified from one to the other with conversion kit available from your dealer.
Figure 48 Length of cut chart
WARNING: Stop the PTO and tractor engine before adjusting the harvester. Refer to the SAFETY RULES on
page 12.
