SETUP
65
TRANSPORT LIGHTS
FIGURE 75
The transport lights on the right-hand side can be raised to reduce the harvester overall width when storing the machine
or circulating in narrow spaces. To raise, remove the pin (item 1 configuration 2), then raise the light assembly and
reinstall the locking pin (item 1 configuration 3).
The lights can also be adjusted to two different positions, on both sides. Generally, regulations require that the extremity
of the light be less than 40cm (16in) from the outermost edge of the harvester, including the header, in transport position.
Check with your local authorities for the applicable requirements.
On the left-hand side, unbolt the support and move to the next set of holes.
On the right-hand side, an extension bar is provided with the light package to obtain the extended position that
may be required depending on the header width. Make sure the red lights and reflectors are located on the back
side.

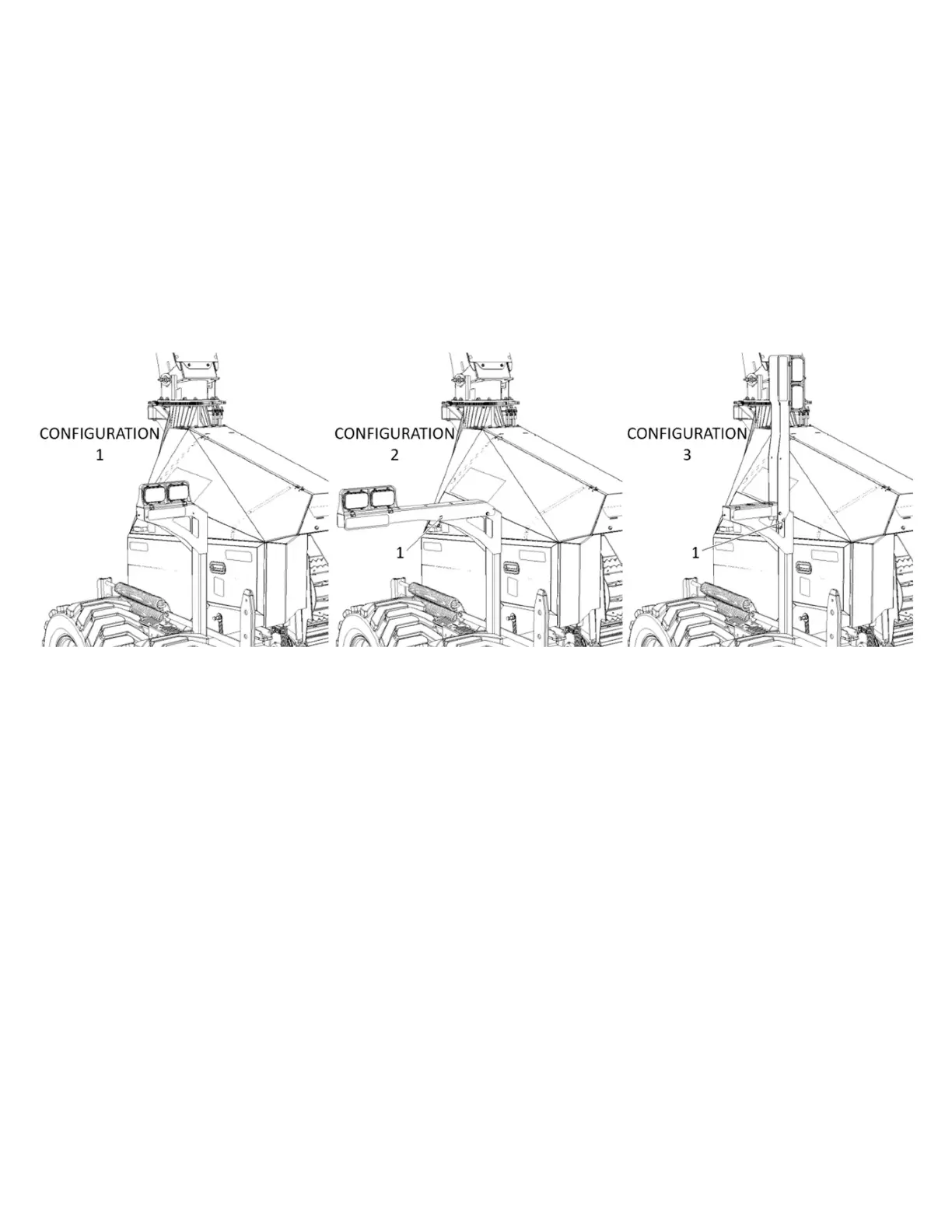

Figure 75 Transport light configuration
