LIQUID INCORPORATION SYSTEM
The system can be used to add preservative to the silage or to lubricate the crop channel and spout to maintain the
throwing capacity of the harvester in gummy conditions. The harvester is pre-wired for a liquid/inoculant incorporation
system. The application can be done at two locations: by default, over the accelerator chamber (Item 1, Figure 72) or on
the windrow pick-up.

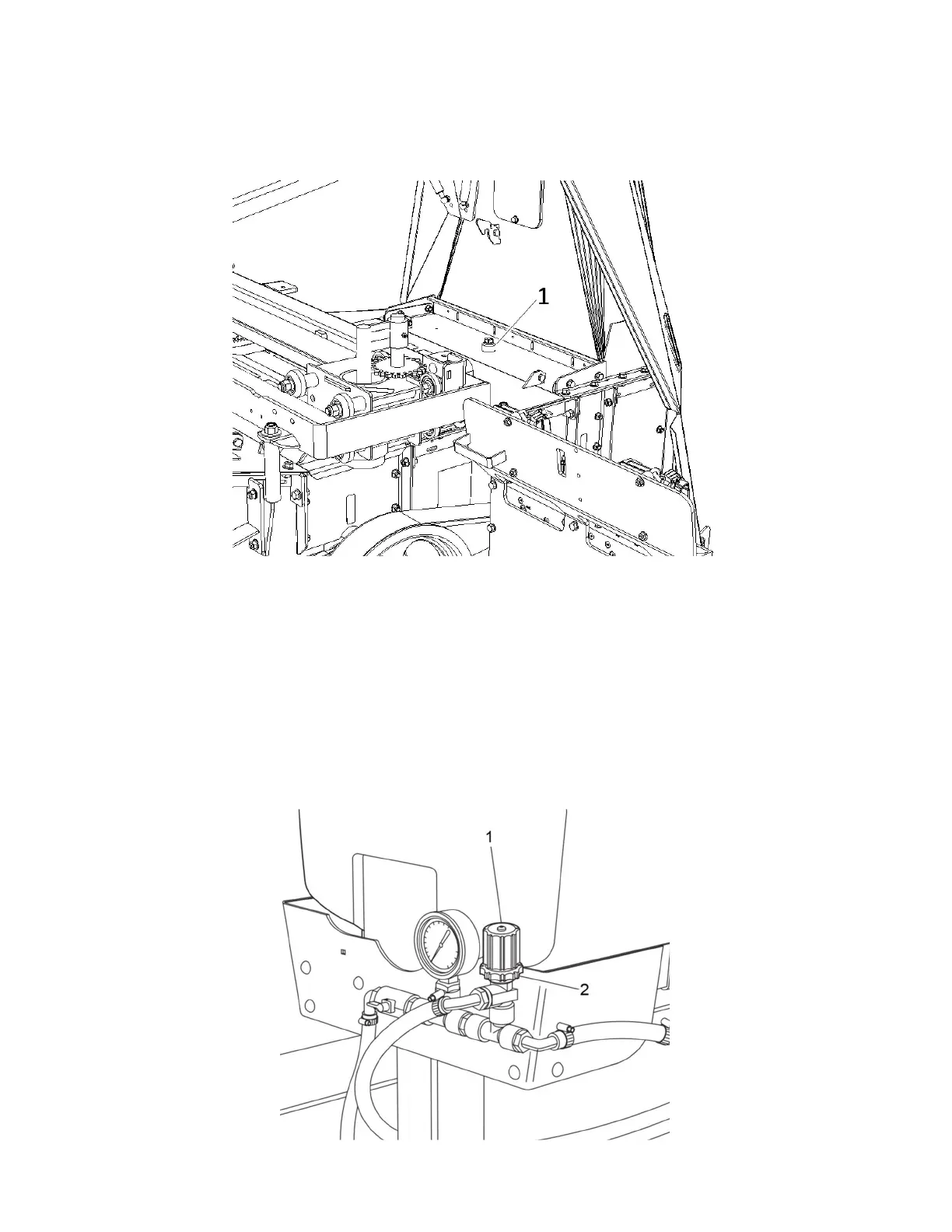

Figure 72 Default location of the liquid incorporation nozzle
The flow is regulated by adjusting the pressure at the pump. It must be adjusted to match the average throughput with
to obtain constant application rate. See Figure 66 for the control switch location.
PRESSURE ADJUSTEMENT
FIGURE 73
To adjust the pressure:
1. Refer to Table 2: Flow vs Pressure of the XR TEEJET XR8004 nozzle to select the right pressure to obtain the correct
amount of liquid applied to the crop.
2. Adjust the pressure by modifying the pressure regulator setting. Turn the handle (item 1), then lock with the ring
(item 2).
Figure 73 System pressure adjustment
