SETUP
56
CONTROL BOX FUNCTIONS
FIGURE 66
All harvester functions are controlled through the control box along with the hydraulic system. There is only one model
of controller offered and it’s equipped with all functions even though the options may not be installed on the harvester
(Metal detector or inoculant kit for example).

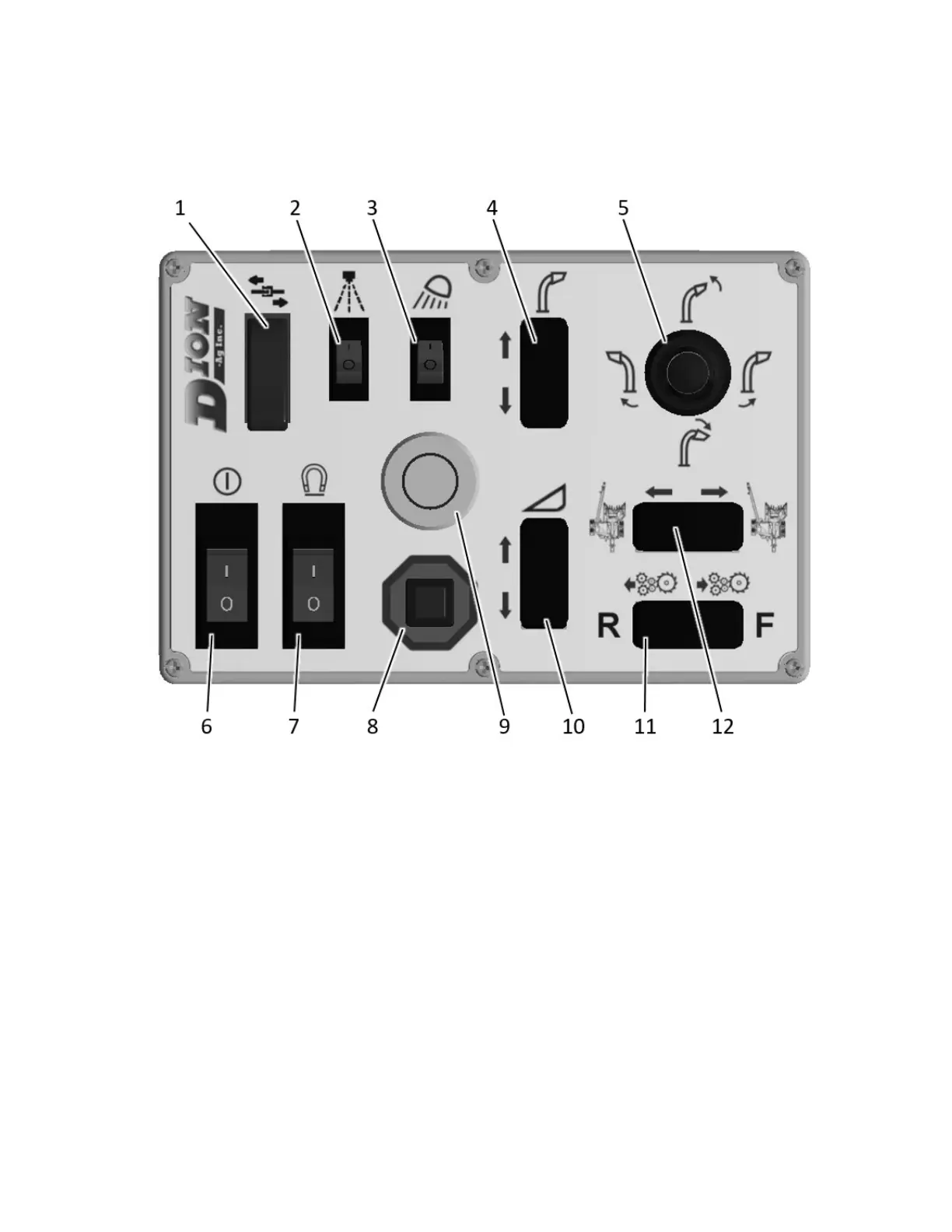

Figure 66 Control Box
1. Trailer quick disconnect with safety cap (OFF/MOMENTARILY ON) – Optional.
2. Liquid/inoculant incorporation system (ON/OFF) – Optional.
3. Spout and work light (ON/OFF) – Optional.
4. Spout height switch (UP/STOP/DOWN).
5. Spout rotation (LEFT/STOP/RIGHT) and deflector (UP/STOP/DOWN) joystick.
6. Main switch with integrated breaker (ON/OFF).
7. Metal detector switch with integrated breaker (ON/OFF) – Optional.
8. Emergency stop button (OFF/MOMENTARILY ON) – Active only with metal detector.
9. Sound and visual alarm – Active only with metal detector.
10. Header height control switch (UP/STOP/DOWN).
11. Transmission shifter switch.
a. Fully manual on models without metal detector.
b. Automated function with metal detector models, see WITH METAL DETECTOR page WITH METAL DETECTOR.
12. Drawbar position control switch (LEFT/STOP/RIGHT).
