MAINTENANCE & AJUSTEMENTS
85

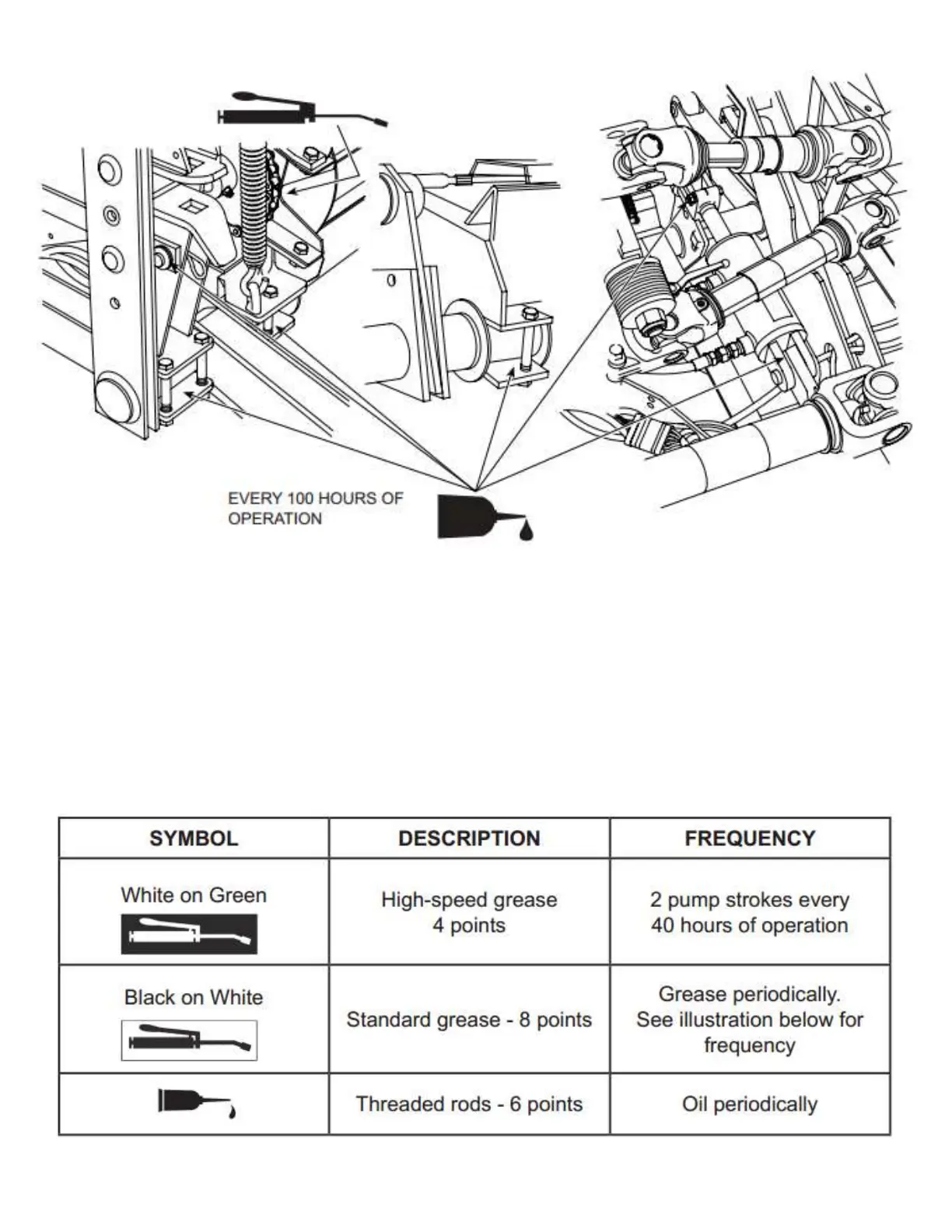

Figure 100 Header lift arms and cylinder
PROCESSOR ROLL LUBRICATION
In wet conditions, harvesting silage may produce large amounts of fluid when passing through the processor rolls. This
fluid may contaminate the roller bearings. It is highly recommended to increase the greasing frequency of the grease
chambers behind the bearing (item 1) every 4 hours of operation.
