STEP 2
1. Remove the two bolts (item 4) on the deflector module. The module is equipped with hooks (Item 5) that will
keep it in place during this operation.
2. Securely fasten the module with lifting straps and lift it to remove it.

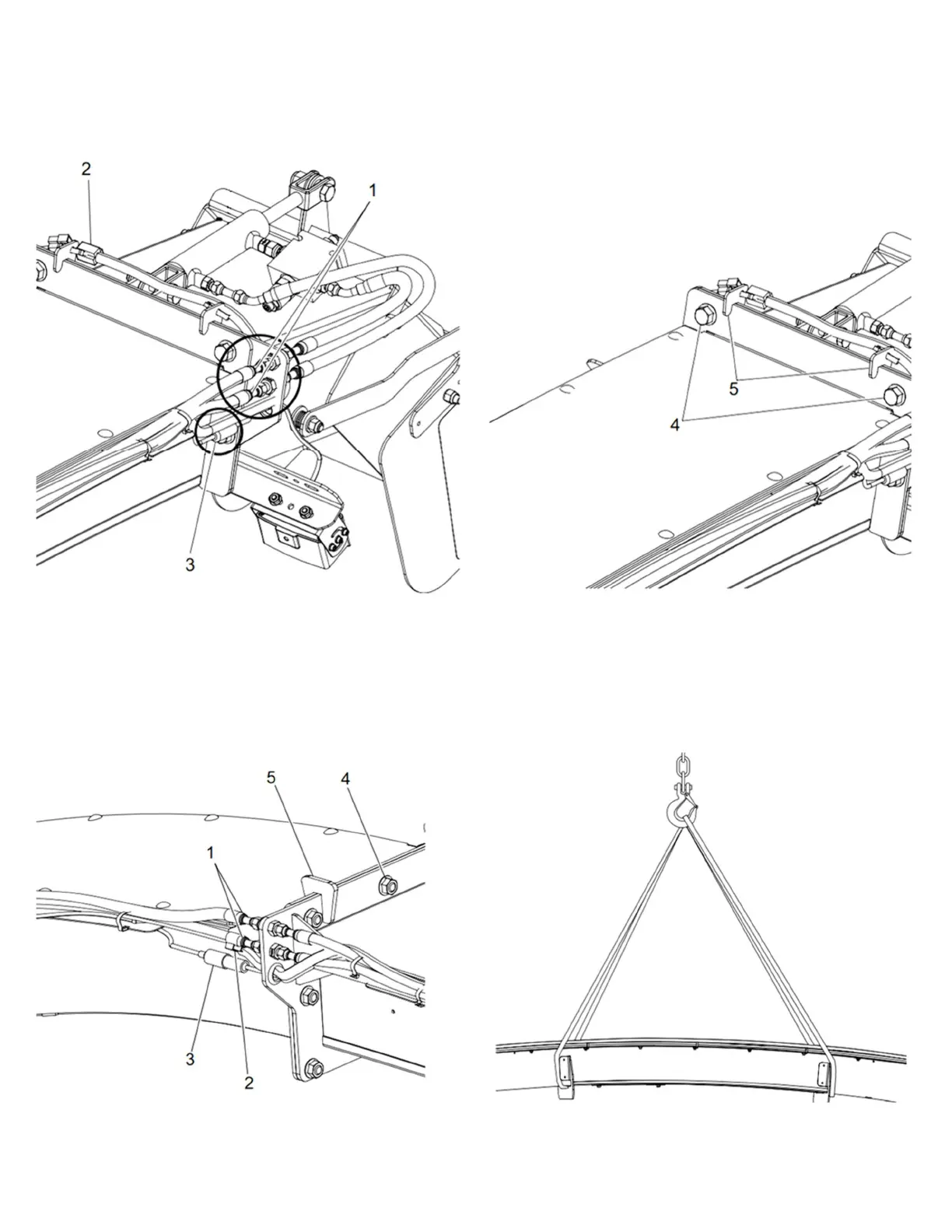

Figure 52 Spout conversion
STEP 3
1. Fasten the lifting straps on each side of the reinforcement brackets of the intermediate section to lift and remove
the middle section Figure 53 : Stinger spout conversion.
2. Repeat steps 1 and 2, but this time at the base of the intermediate section.
3. Reinstall the deflector module on the base of the spout and reconnect all hoses and electrical connections.
Figure 53 : Stinger spout conversion
