48
© 2009 Directed Electronics. All rights reserved.

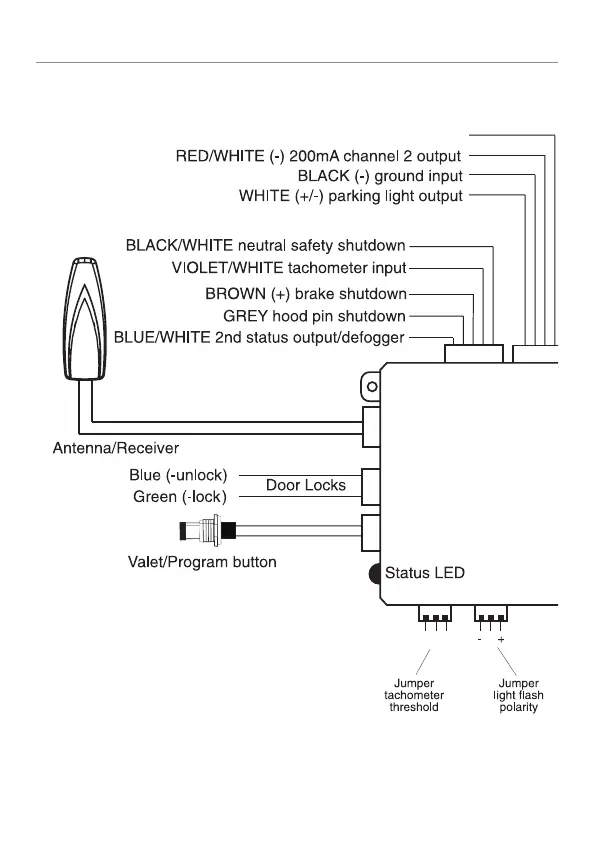

Wiring quick reference guide
ORANGE (-) ground when locked
BROWN (-) horn honk output
red 4 pin d2d
bitwriter port
Off On
