Primary harness (H1), 9-pin connector
H1/1
LIGHT GREEN/
BLACK
(-) FACTORY ALARM DISARM
This wire sends a negative pulse every time the remote start is activated
or the doors are unlocked. This can be used to pulse the disarm wire
of the vehicle’s factory anti-theft device. Use a relay to send a (-) or (+)
pulse to the disarm wire as shown in the following diagram

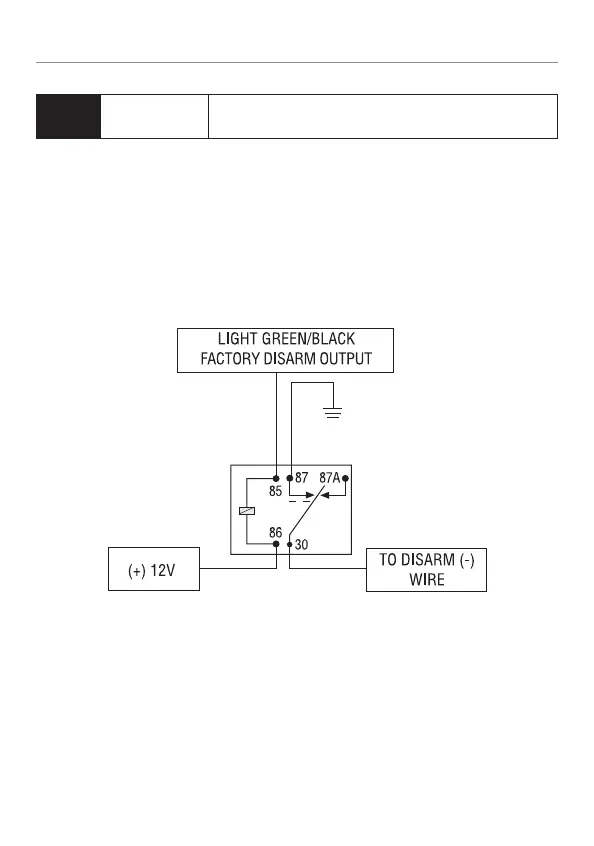

Relay for Negative (-) Disarm Wire
