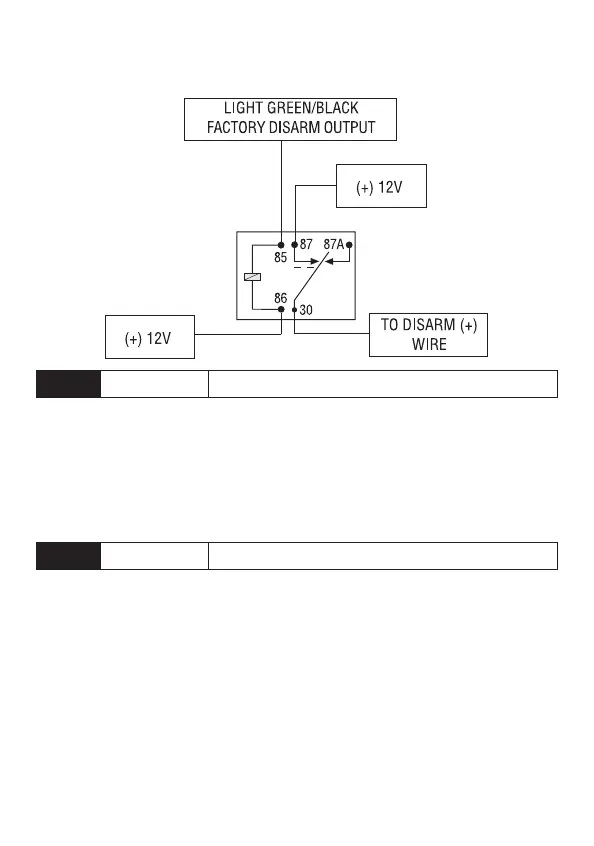

Relay for Positive (+) Disarm Wire
H1/2
GREEN/WHITE (-) FACTORY REARM
This wire sends a negative pulse every time the remote start shuts down
or the doors are locked. This can be used to pulse the arm wire of the
vehicle’s factory anti-theft device. Use a relay to send a (-) or (+) pulse
to the arm wire.
H1/3
YELLOW (+) IGNITION OUT (TO ALARM)
As a stand-alone system:
The H1/3 YELLOW wire should not be con-
nected to anything.
As an add-on car starter:
If connected, disconnect the ignition/ac-
cessory input of the remote controlled security or keyless entry system.
Connect the H1/3 YELLOW ignition output to the ignition/accessory
input of the remote controlled security or keyless entry system. The wire
will prevent the host system from sensing that the ignition is on during
remote start operation.
To Next Page
