Directed DIRECTWIRE DIRECTECHS THGMN4 User Manual

17
933.GM9 2.46.198.9 2022 Chevrolet Equinox (Smart Key)
©2023 Directed. All rights
Module programming for convenience features only (skip transponder programming)
Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.

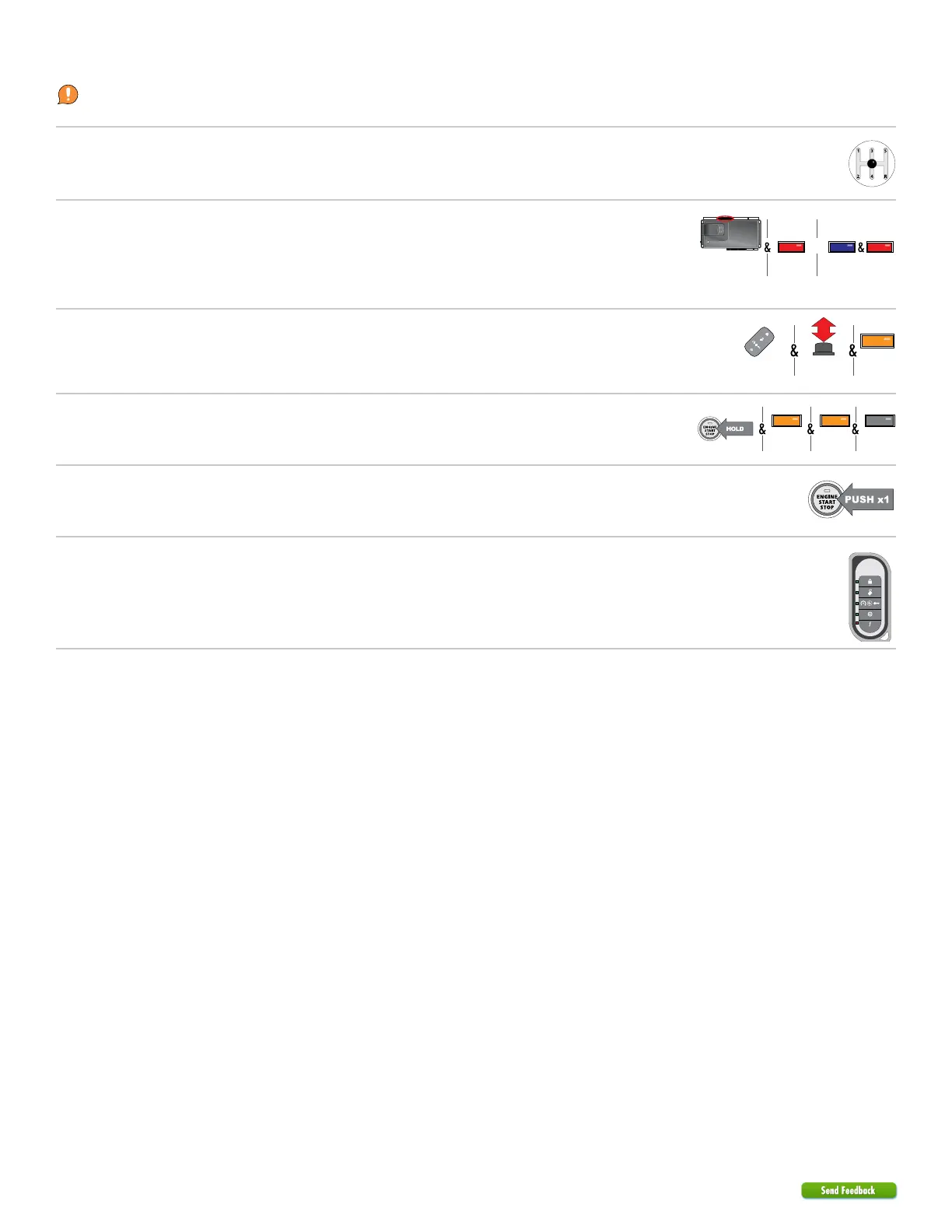

1
Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles
equipped with a manual transmission, make sure the gearshift is in the neutral position.
2
Connect the 12-pin main power harness to the module.
DS3+: Wait until the LED turns ON solid red then connect remaining harnesses to the module.
DS4+: The LED turns ON solid blue for 1 second to confirm Bluetooth communication. Wait until
the LED turns ON solid red, then connect remaining harnesses to the module.
4 2442
22 810 12
Must connect
12-pin FIRST
SolidSolid
DS3+ DS4+
Solid
1 Sec
OR
3
Enter the vehicle while making sure the factory remote is inside with you.
Press the programming button five (5) times.
The LED turns ON solid orange.
Key
Inside
Solid
Press &
Release x5
4
Press and hold the Push-to-Start (PTS) button until the ignition turns ON.
The LED flashes orange then turns ON solid orange for 3 seconds then shuts OFF.
Solid
x 3 sec
Flashes Off
5
Press once (1) more on the PTS button to turn the ignition OFF.
6
Pair remotes (if applicable).
For information on how to pair a specific remote, please refer to its corresponding owner
documentation, which can be found inside the product packaging of the complete system or on
www.directechs.com. Your aftermarket remote may differ from the model shown in the illustrations.
Pair
remotes
AFTERMARKET
You have successfully completed the module programming sequence.
