Directed DIRECTWIRE DIRECTECHS THGMN4 User Manual

20
933.GM9 2.46.198.9 2022 Chevrolet Equinox (Smart Key)
©2023 Directed. All rights
When used in conjunction with Directed SmartStart
®
To enable D2D communication between the DS3+/DS4+ and the Directed SmartStart
®
one of the following actions must be performed
before providing power to the Directed SmartStart
®
unit:

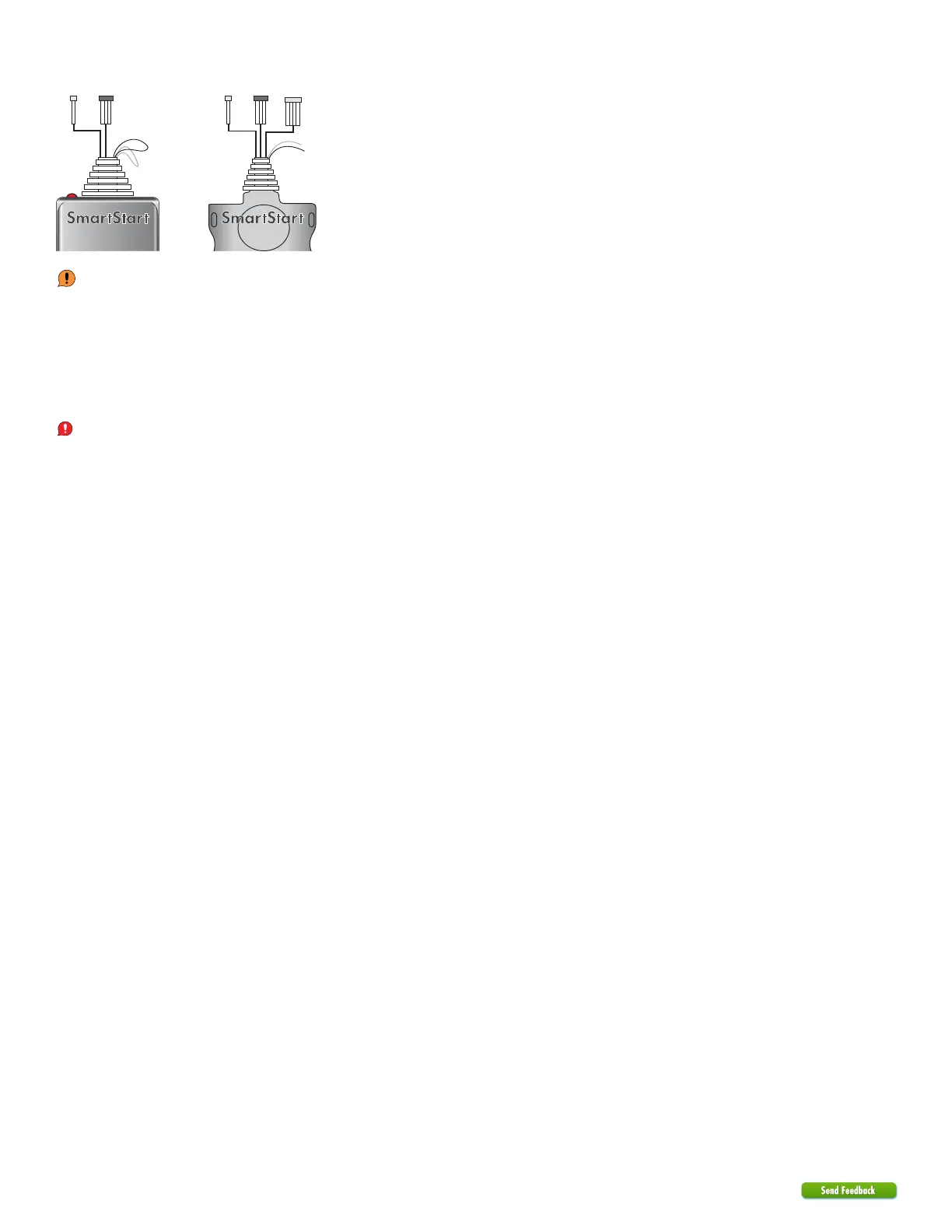

SmartStart with Loops – The brown loop must be cut.
SmartStart with Pigtails – The gray wire must be connected to a ground source.
Loops Pigtails
DO NOT connect the Directed SmartStart
®
2-pin power harness when using the DS3+/DS4+. Power and ground will be provided by the
D2D connector on the module. Refer to the Directed SmartStart
®
documentation for further details.
D2D port configuration
Caution! Do not connect the Control Center (antenna) or any digital sensors (8504D) to the white D2D1 port.
The white D2D1 port is reserved ONLY for SmartStart, Module flashing or 3rd Party bypass. The two black D2D2 ports are reserved for the
Control Center (antenna) and digital sensors (8504D).
