933.GM9 2.46.198.9 2022 Chevrolet Equinox (Smart Key)
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).

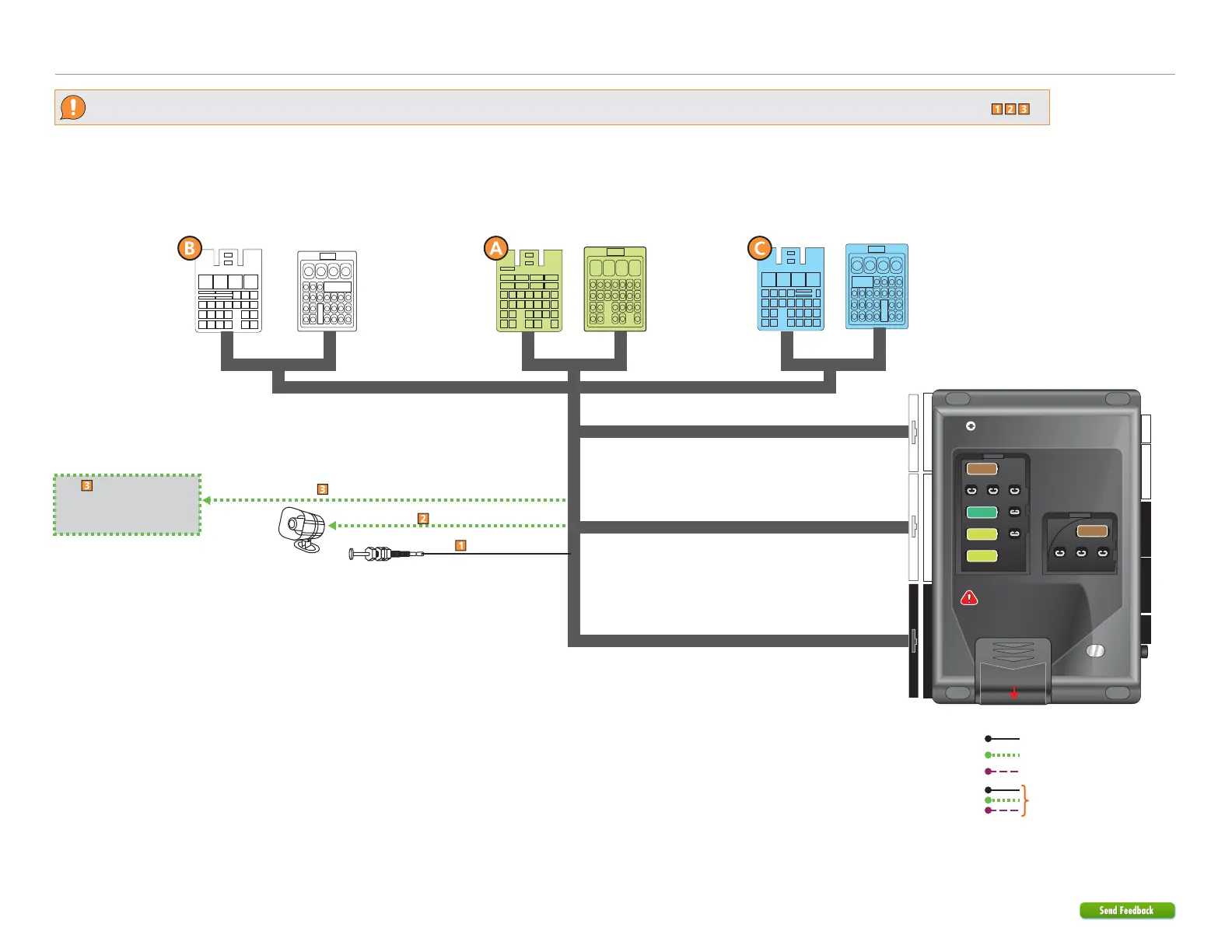

Wiring diagram with T-Harness (THGMN4)
8-pin White Connector
12-pin Black Connector
22-pin White Connector
12-pin Black Connector
THGMN4
(Optional T-Harness)
Siren
Hood Pin
(-) Hood Input: Gray
(+) Siren Output: Brown/Red
(-) Ground When Armed (GWA) Output: Blue/White
Refer to the
Optional starter disable
connection section for relay
and connection details.
BCM
(green conn. front of
center console)
BCM
(white conn. front of
center console)
BCM
(blue conn. front of
center console)
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT(15A) (+)
5
5
30
20
20
