933.GM9 2.46.198.9 2022 Chevrolet Equinox (Smart Key)
©2023 Directed. All rights

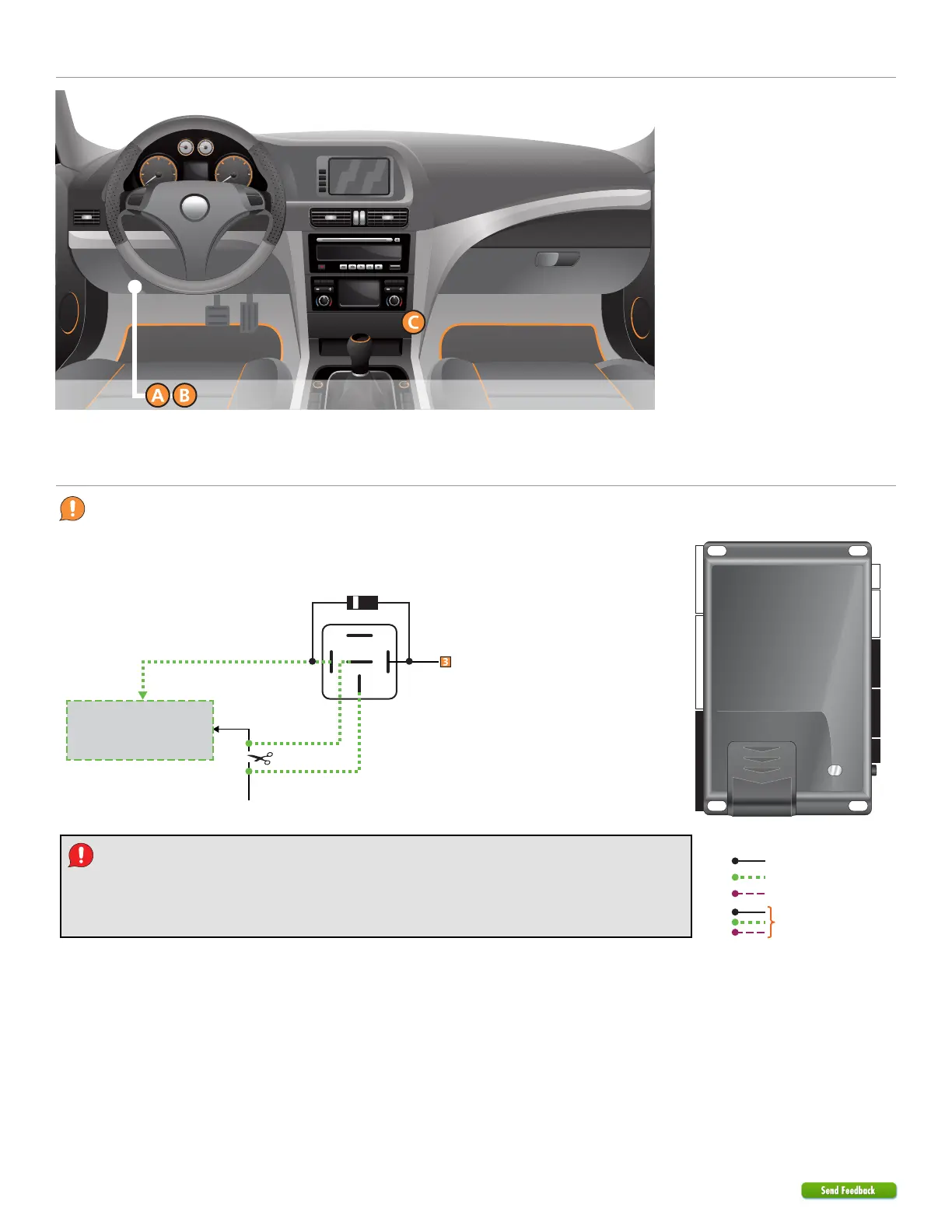

Locating components in the vehicle
Optional starter disable connection
When using an external relay, use a 1N4002 diode or larger.
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
(-) Ground When Armed (GWA) Output: Blue/White: 2
86 85
30
87a
87
Cut
Starter (conn. side)
Starter (veh. side)
(+) Ignition
Refer to the
Vehicle connections
section for wire and
connector details.
1A diode [1N4002+ ]
Important: When flashing your module for Security Only, the Ground When Armed (GWA)
function is pre-configured. When flashing your module for Remote Start & Security, you must
manually assign the designated output to Anti Grind (AG) Starter Kill.
(Applicable to CORE 194+.)
