Directed DIRECTWIRE DIRECTECHS THGMN4 User Manual

6
933.GM9 2.46.198.9 2022 Chevrolet Equinox (Smart Key)
©2023 Directed. All rights
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).

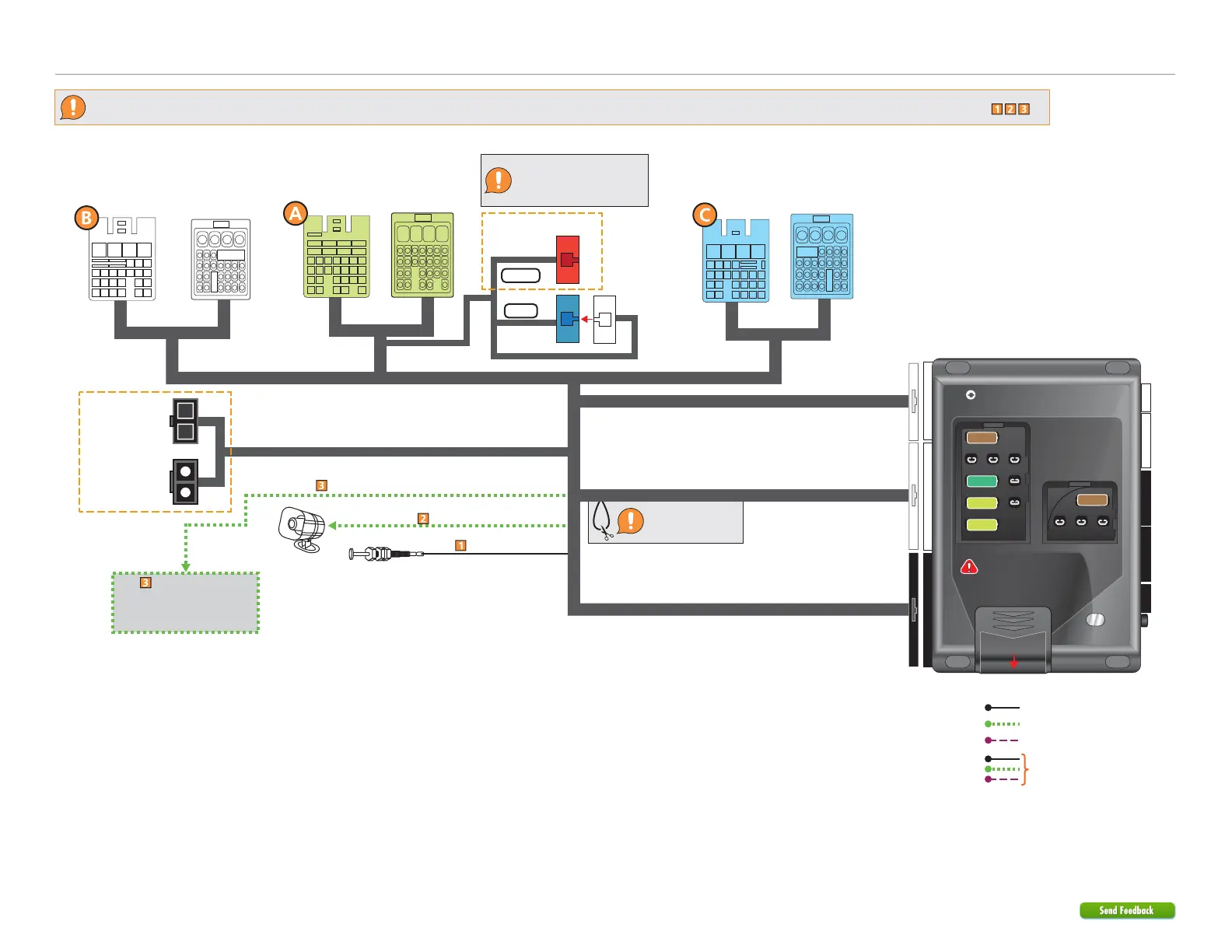

Wiring diagram with T-Harness (THGMN5)
Siren
Hood Pin
(-) Hood Input: Gray
(+) Siren Output: Brown/Red
THGMN5
(Optional T-Harness)
8-pin White Connector
12-pin Black Connector
BCM
(green conn. front of
center console)
BCM
(white conn. front of
center console)
12-pin Black Connector
22-pin White Connector
GM10
GM9
Cut the Brown/Black
loop to disable the
Horn Output.
BCM
(blue conn. front of
center console)
Security Only
Mandatory Connections
Remote Start Only
Legend:
Remote Start + Security
22 812
4 2442
Slide to open
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT(15A) (+)
5
5
30
20
20
CONNECT the white or blue
8-pin connector labeled
GM9 to the non-labeled
white 8-pin connector.
NOT USED
(-) Ground When Armed (GWA) Output: Blue/White
Refer to the
Optional starter disable
connection section for relay
and connection details.
NOT USED
Lock/Unlock
