933.GM9 2.46.198.9 2022 Chevrolet Equinox (Smart Key)
©2023 Directed. All rights

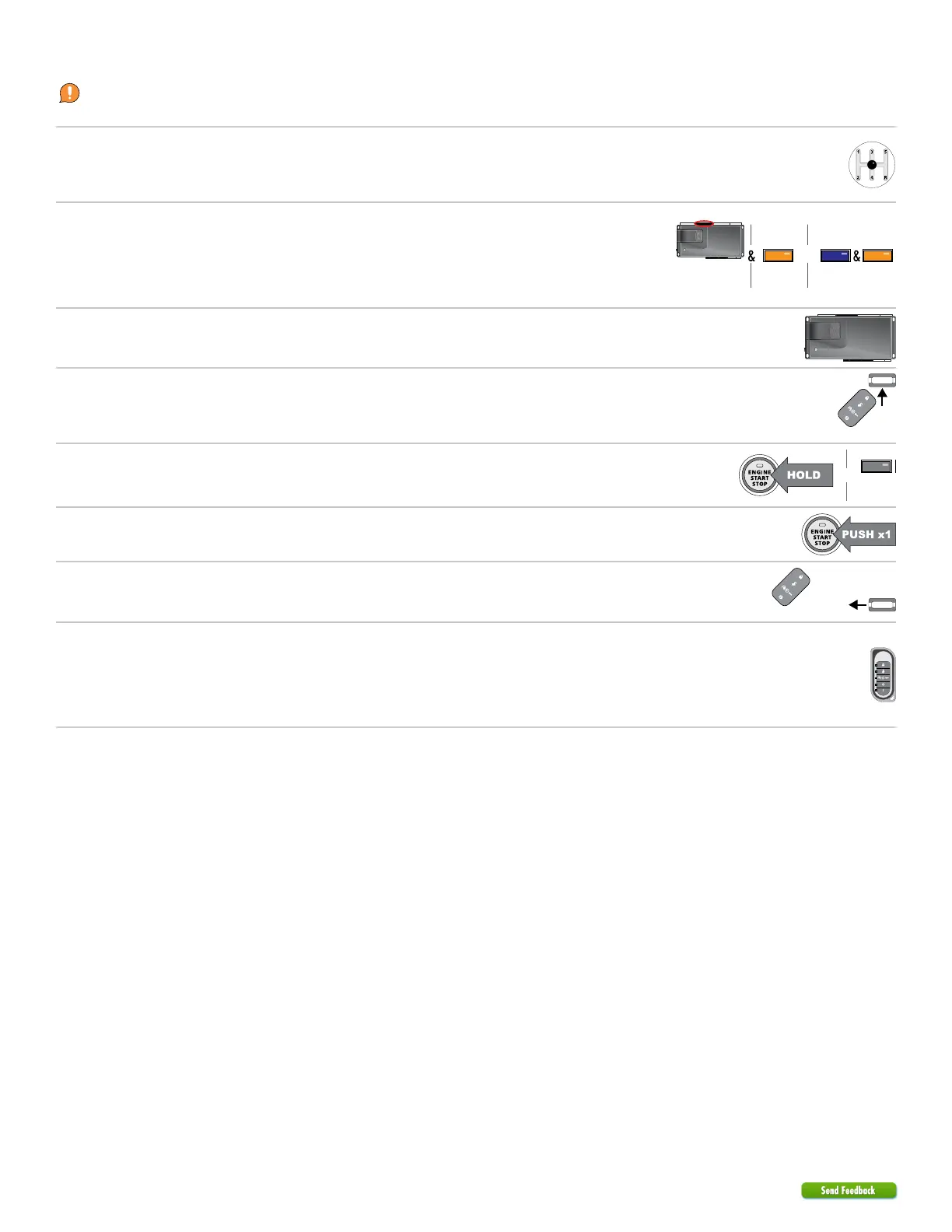

Module programming for security-only installations
Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.
1
Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles
equipped with a manual transmission, make sure the gearshift is in the neutral position.
2
Connect the 12-pin main power harness to the module.
DS3+: Wait until the LED turns ON solid orange then proceed to the next step.
DS4+: The LED turns ON solid blue for 1 second to confirm Bluetooth communication.
Wait until the LED turns ON solid orange, then proceed to the next step.
4 2442
22 810 12
Must connect
12-pin FIRST
SolidSolid
DS3+ DS4+
Solid
1 Sec
OR
3
Connect the remaining harnesses to the module.
Connect
remaining
harnesses
4
Insert the key fob in the keyport.
Note: Refer to the "Keyport location" section.
Key in
Port
5
Press and hold the Push-to-Start (PTS) button until the LED turns OFF.
&
Off
6
Press once (1) more on the PTS button to turn the ignition OFF.
7
Remove the key from the key port.
Remove Key
from Port
8
Pair remotes (if applicable).
For information on how to pair a specific remote, please refer to its corresponding owner
documentation, which can be found inside the product packaging of the complete system or on
www.directechs.com. Your aftermarket remote may differ from the model show in the illustration.
Pair
remotes*
AFTERMARKET
You have successfully completed the module programming sequence.
