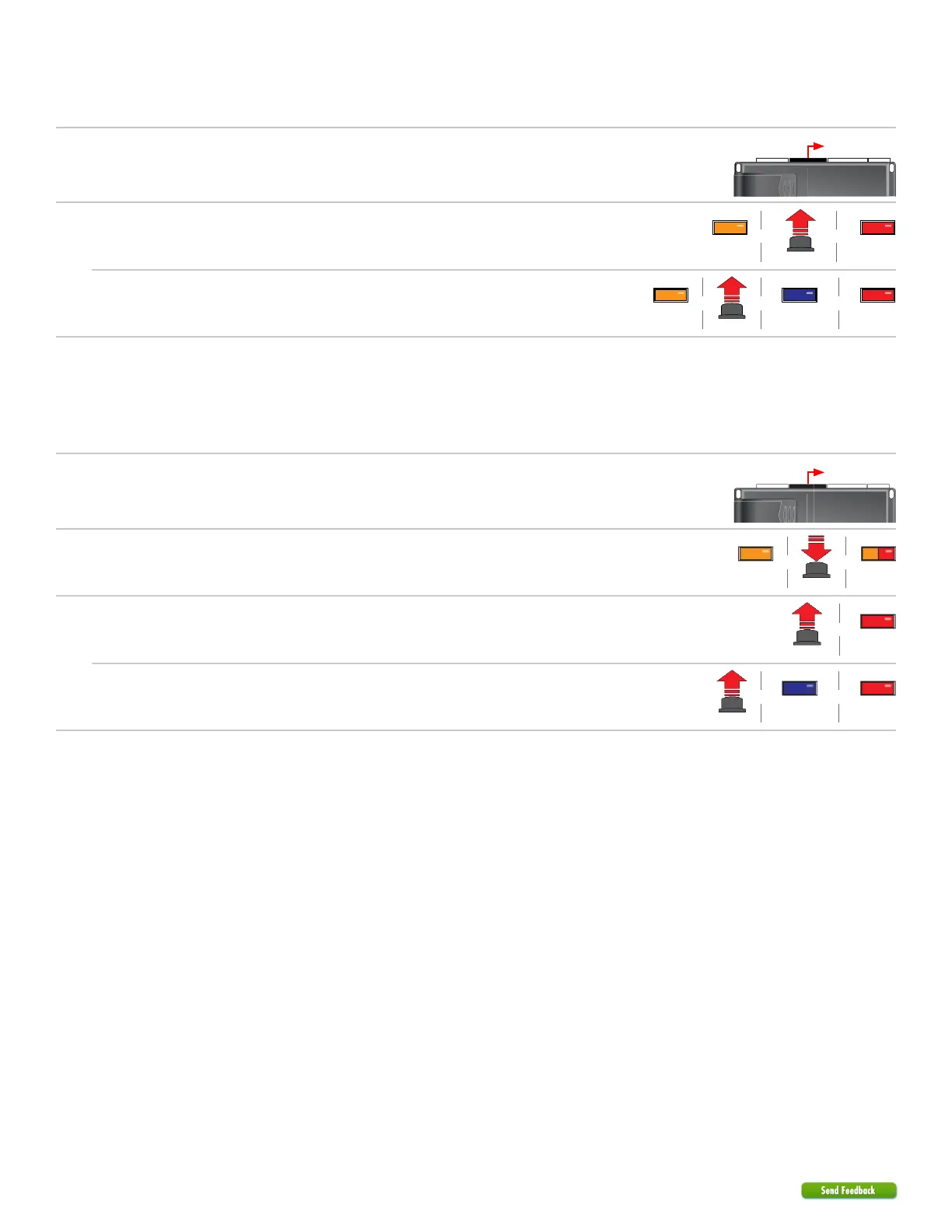

Soft reset
A module reset will only erase the steps perfomed in “Module Programming”. The firmware and settings flashed to the module will not be
affected.
1
If required for your installation, connect all the harnesses to the module, EXCEPT the 12-pin main
power harness. Press and hold the programming button, then connect the 12-pin harness to the
module.
Connect all but the
12-pin harness
2
DS3+: Wait 3 seconds until the LED turns ON solid orange then release the programming
button.
The LED turns ON solid red.
&&
Solid Solid
Release
DS4+: Wait 3 seconds until the LED turns ON solid orange then release the programming
button.
The LED turns ON blue for 1 second then solid red.
& &&
Solid Solid
Release
Solid
x1 Sec
Hard reset
Warning Against Executing a Hard Reset!
A hard reset will revert the flashed firmware back to its default factory settings. Depending on the installation, some settings may need to be
reconfigured. Connect your module to a computer and use the web configuration tool to edit its programmable features.
1
If required for your installation, connect all the harnesses to the module, EXCEPT the 12-pin main
power harness. Press and hold the programming button, then connect the 12-pin harness to the
module.
Connect all but the
12-pin harness
2
After 3 seconds the LED turns ON solid orange. Keep holding the programming button until the LED
flashes red, then orange slowly.
Solid Flashes
&&
Hold
3
DS3+: Release the programming button. The LED turns solid red.
&
Solid
Release
DS4+: Release the programming button. The LED turns ON blue for 1 second then solid red.
& &
Solid
Release
Solid
x1 Sec
