DITEC EL20 User Manual

GB
17
EL20 - IP1951

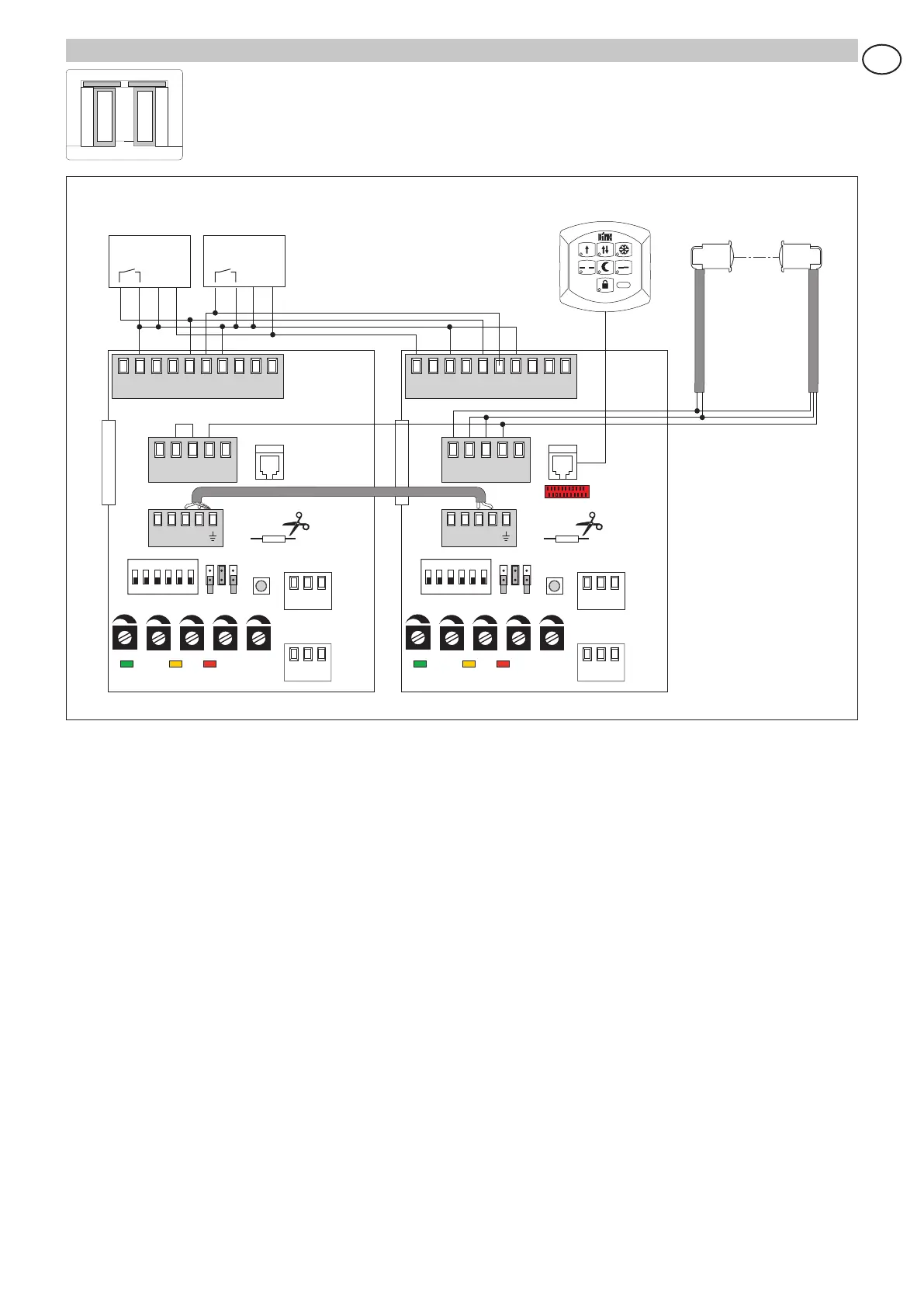

9. AUTOMATIONS IN PARALLEL
It is possible to command two automations [DRIVE1] and [DRIVE2] side by side, making the connections
indicated in the diagram with the electronic selector switch COME.
Set J1=OFF and J3=OFF on both control panels.
Note: adjust the automatic closing trimmers (TC) and the opening (VA) and closing (VC) speed trimmers in the
same position on both automations so as to obtain the simultaneous opening and closing of the door wings.
COM
VA
DIP
OPEN
VC TC RP R1
COM
on
off
POWER
ALARM
SA
IN
1 2 3 4 5 6
0 1 1 2 3A 3B 9 27 28 29
0 1 6 8 41
EL20
COME
SICUR2
1
4 5 6
3
2
RADAR B RADAR A
24 V
+
-
24 V
+
-
TX RX
P1 SP P2
R1 SR R2
VA
DIP
OPEN
J1 J2 J3
VC TC RP R1
on
off
POWER
ALARM
SA
IN
1 2 3 4 5 6
0 1 1 2 3A 3B 9 27 28 29
0 1 6 8 41
EL20
DRIVE1 DRIVE2
J1 J2 J3
P1 SP P2
R1 SR R2
0 1 21 22 0 1 21 22
All right reserved
All data and specications have been drawn up and checked with the greatest care. The manufacturer cannot however take any
responsibility for eventual errors, ommisions or incomplete data due to technical or illustrative purposes.

DITEC EL20 Specifications

General

Brand	DITEC
Model	EL20
Category	Control Panel
Language	English
