31
IP2251EN

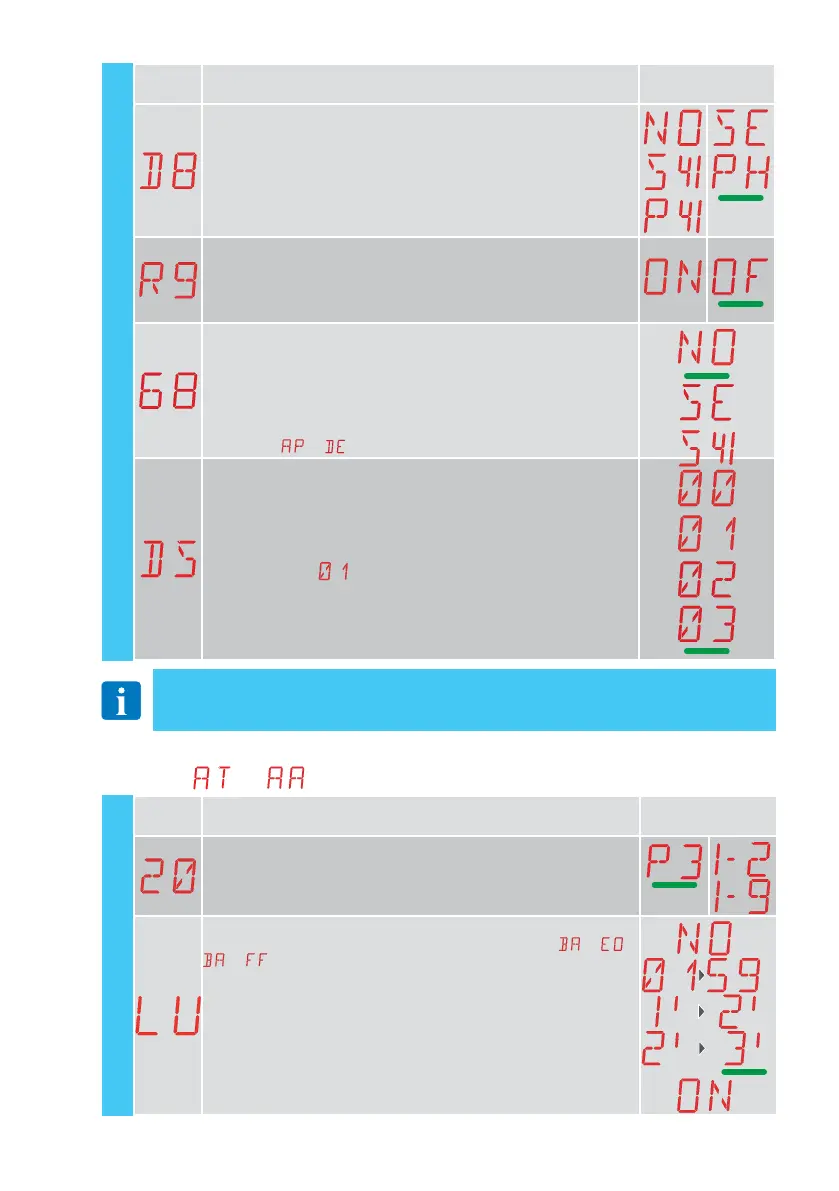

AP - Advanced Parameters
Display Description
Selections
available
D8 - Selection of device connected to terminals 1-8
NO - None
SE - Safety edge
S41 - Safety edge with safety test
PH - Photocells
P41 - Photocells with safety test
R9 - Enabling automatic closing after command 1-9 via radio (STOP).
ON - Enabled
OF - Disabled
When enabled (ON), after a command 1-9 via radio, the automation
carries out automatic closing (if enabled), after the set time.
68
- Selection of the device simultaneously connected to terminals 1-6 and 1-8
NO - None
SE - Safety edge
S41 - Safety edge with safety test
If different from NO, the simultaneous opening of inputs 1-6 and 1-8 causes:
- movement stop and reversal during a closing operation
- movement stop and disengagement of a duration depending on the
selection
→ during an opening operation
DS - Setting of display visualisation mode
00 - No visualisation
01 - Commands and safety devices with radio test (see paragraph 9.2)
Display of count down to automatic closing
02 - Automation status (see paragraph 12.1)
03 - Commands and safety devices (see paragraph 12.2)
NOTE: the setting
allows you to see when a radio transmission is
received, for range checks.
NOTE: make adjustments gradually and only after performing at least three complete
operations to allow the control panel to be set correctly and detect any friction during
operations.
11.9.1 Additional AP level parameters that can be configured (available
with
→ enabled)
Display Description
Selections
available
20 - Partial opening command of terminal 1-20
P3 - Partial opening command
1-2 - Enabling of automatic closure
1-9 - Stop input
LU - Setting the courtesy light switch-on time (s)
To enable this parameter, set at least one of the selections
→ or
→ as a courtesy light.
It is set with different intervals of sensitivity.
NO - Disabled
- from 01” to 59” with intervals of 1 second
- from 1’ to 2’ with intervals of 10 seconds
- from 2’ to 3’ with intervals of 1 minute
ON - Permanently enabled (switched off via remote control)
NOTE: the courtesy light switches on at the start of each operation.
AP
- Advanced Parameters
