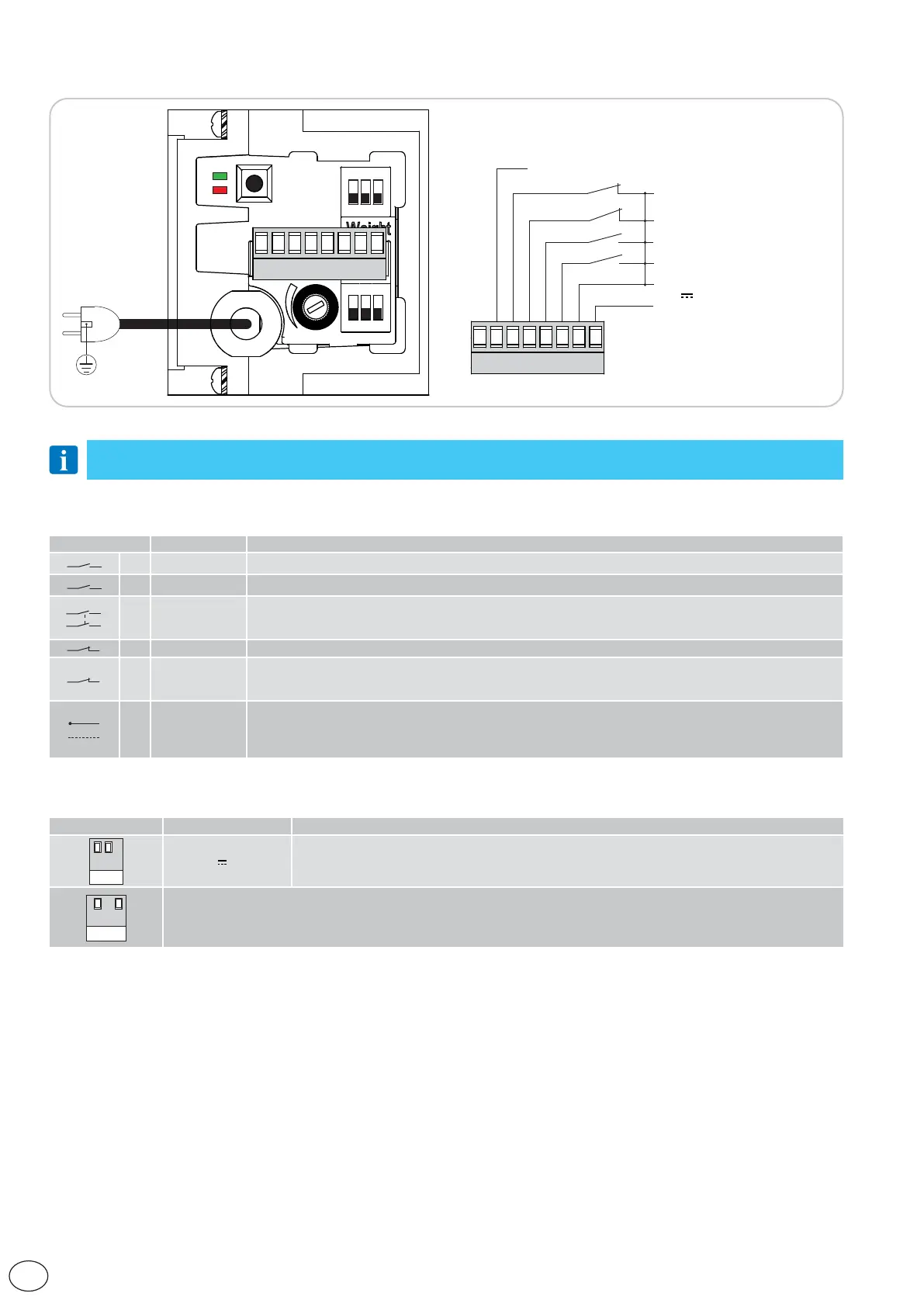

5. ELECTRICAL CONNECTIONS
TC
ON
ON


Alimentazione
230 V~ 0,2 A
Chiusura
Sicurezza in chiusura
Test sicurezze
Sicurezza in apertura
Apertura
-
+
24 V 0,36 A
0
1
3
46
8
41BL
0
1
3
46
8
41BL
5.2 Output and accessories
Output Value - Accessories Description
01
-+
24V 0,36A
Accessories power supply.
Power supply output for external accessories.
 %/
DO NOT USE
5.1 Commands
Command Funzione Descrizione
1
3 N.O. OPENING
The opening manoeuvre starts when the contact is closed.
1
4 N.O. CLOSING
The closing manoeuvre starts when the contact is closed.
1 3
1 4
N.O. STOP
The coincidence of an opening and closing command stops all movements.
WARNING: when the contact opens again the door proceeds with the
interrupted manoeuvre.
1
6 N.C. NOT USED
Make a jumper on contact 1-6 if DIP 3 =OFF, make a jumper on contact 41-6 if DIP 3 =ON.
1
8 N.C.
CLOSING
SAFETY
CONTACT
The opening of the contact reverses the movement (re-opening) during the closing operation.
NB: If no closing safety device is used and DIP3= ON, a jumper must be made on contacts 41-8.
41
(+)
0 (-)
N.C.
SAFETY
DEVICES
TEST
Terminal 41 activates a test of the safety device on each cycle. If the test fails the RED LED flashes briefly and
the test is repeated. With DIP3=ON connect terminal 41 and 0 of the control panel to the corresponding test
terminals on the safety device.
If the safety devices are not tested, see description DIP3=OFF.
Opening safety contact
Opening
Safety devices test
Power supply
Closing safety contact
Closing
-Max section of the wire that can be used on a single clamp = 1.3 mm ² (26AWG).
-If used wires with a larger diameter or more wires, make an external connection using a special terminal (not supplied).
