AGRAS T30
Unmanned Aircraft Flight Manual

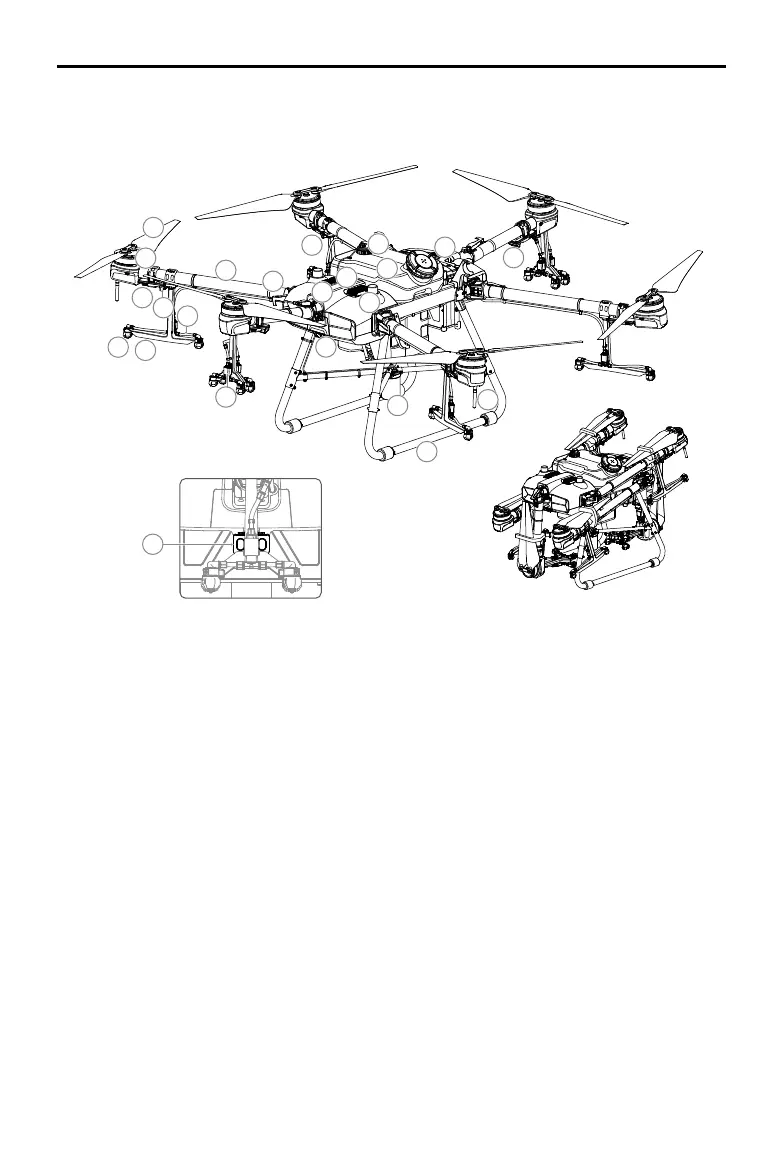

Aircraft Overview
1
2
3
5
6
8
9
11
12
14
15
16
17
19
20
21
22
23
13
4
7
18
10
FoldedRear View
1. Propellers
2. Motors
3. ESCs
4. Aircraft Front Indicators
(on the M2 and M6 arms)
5. Frame Arms
6. Folding Detection Sensors (built-in)
7. Hoses
8. Sprinklers
9. Nozzles
10. Electromagnetic Exhaust Valves
11. Omnidirectional Digital Radar
12. Upward Radar (built-in)
13. Heat Sinks
14. Liquid Level Gauge
15. Spray Tank
16. Battery Compartment
17. Forward FPV Camera
18. Backward FPV Camera
19. Landing Gear
20. OcuSync Antennas
21. Onboard D-RTK Antennas
22. Aircraft Status Indicators
(on the M1 and M4 arms)
23. Aircraft Rear Indicators
(on the M3 and M5 arms)
