DJI Mavic 3E/3T User Manual

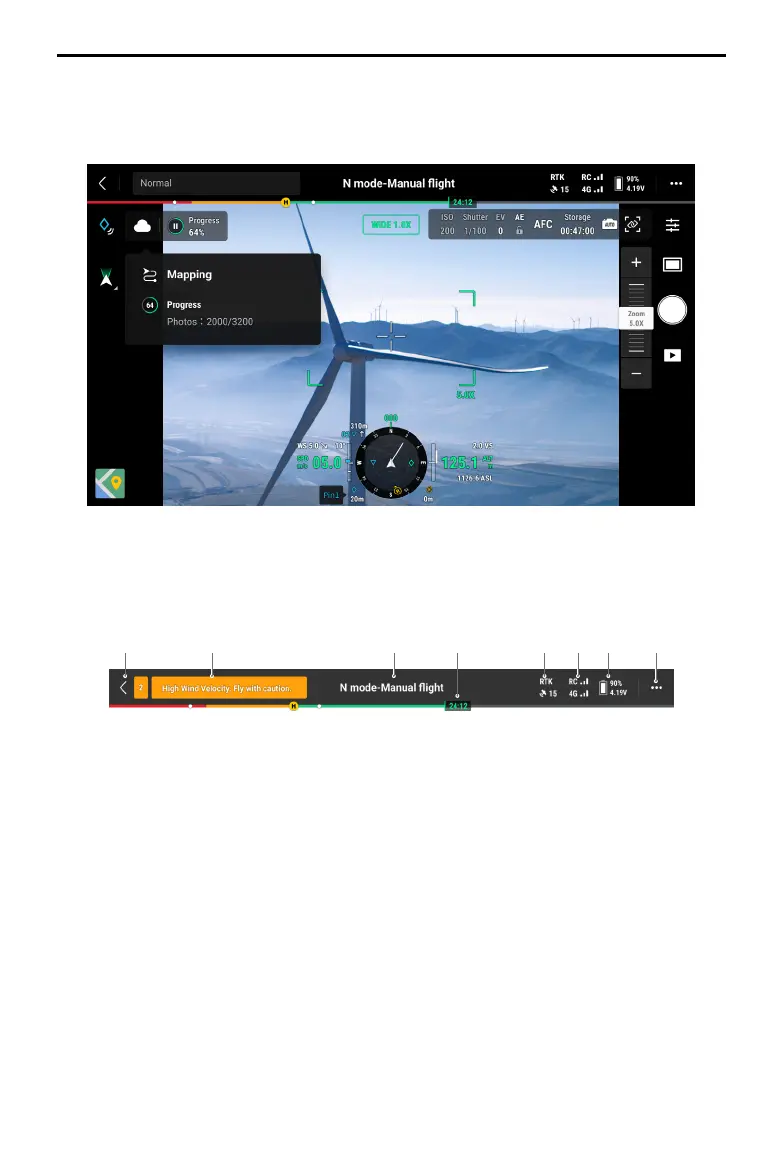

21. Flight Task Status: displays the progress of a flight task in the camera view. Tap the

Pause/Resume button to pause or resume the task and tap the panel to view the flight

task details.

1. Back: tap to return to the home screen of the DJI Pilot 2 app.

2. System Status Bar: indicates the aircraft flight status and displays various warning

messages. If an alert appears during flight, it will be displayed in the system status bar

and continue flashing. Tap to view the message, and the flashing will stop.

3. Flight Status:

a. The flight statuses include: standby, preparing to take off, ready to go, manual flight,

mission flight, pano in progress, landing, vision positioning, etc.

b. When the aircraft is in vision positioning, standby, or manual flight status, the current

flight mode will be displayed, including N, S, A, and T modes.

c. Tap to enter the Preflight Check view.

4. Battery Level Indicator Bar: displays the battery level and the remaining flight time of

the Intelligent Flight Battery. Different battery levels are represented by different colors.

When the battery level is lower than the warning threshold, the battery icon turns red,

reminding the user to land the aircraft as soon as possible and replace the batteries.

Top Bar

1 2 3 4 5 6 7 8

Other manuals for dji MAVIC 3T

Questions and Answers:

Need help?

Do you have a question about the dji MAVIC 3T and is the answer not in the manual?

General

Built-in processor	-
Internal memory	64 GB
Memory card slot(s)	Yes
Compatible memory cards	MicroSD (TransFlash)
AC adapter power	100 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100/240 V
AC adapter output current	2.5 A
Operating temperature (T-T)	-10 - 40 °C
Moving control functions	Backward, Downward, Forward, Upward
Megapixel	20 MP
Sensor type	CMOS
Video resolutions	1920 x 1080, 3840 x 2160, 4096 x 2160 pixels
Optical sensor size	1/2 \
Camera shutter speed	8-1/8000 s
Video formats supported	AVC, H.264, H.265, HEVC, MPEG4
Maximum image resolution	5280 x 3956 pixels
Field of view (FOV) angle	85 °
Supported video streaming modes	1080p
Battery voltage	7.2 V
Battery capacity	5000 mAh
Type	Quadcopter
Product color	Gray
USB ports quantity	1
Maximum speed	6 m/s
Frequency band	2.4 - 2.4835 GHz
Number of rotors	4 rotors
Maximum tilt angle	35 °
Hovering time (max)	45 min
Maximum ascent speed	1 m/s
Maximum weight capacity	- kg
Maximum wind resistance	12 m/s
Maximum operating distance	32000 m
Maximum yaw angular velocity	200 °/sec
