dji RONIN 2 User Manual

4
©
2017 DJI OSMO All Rights Reserved.

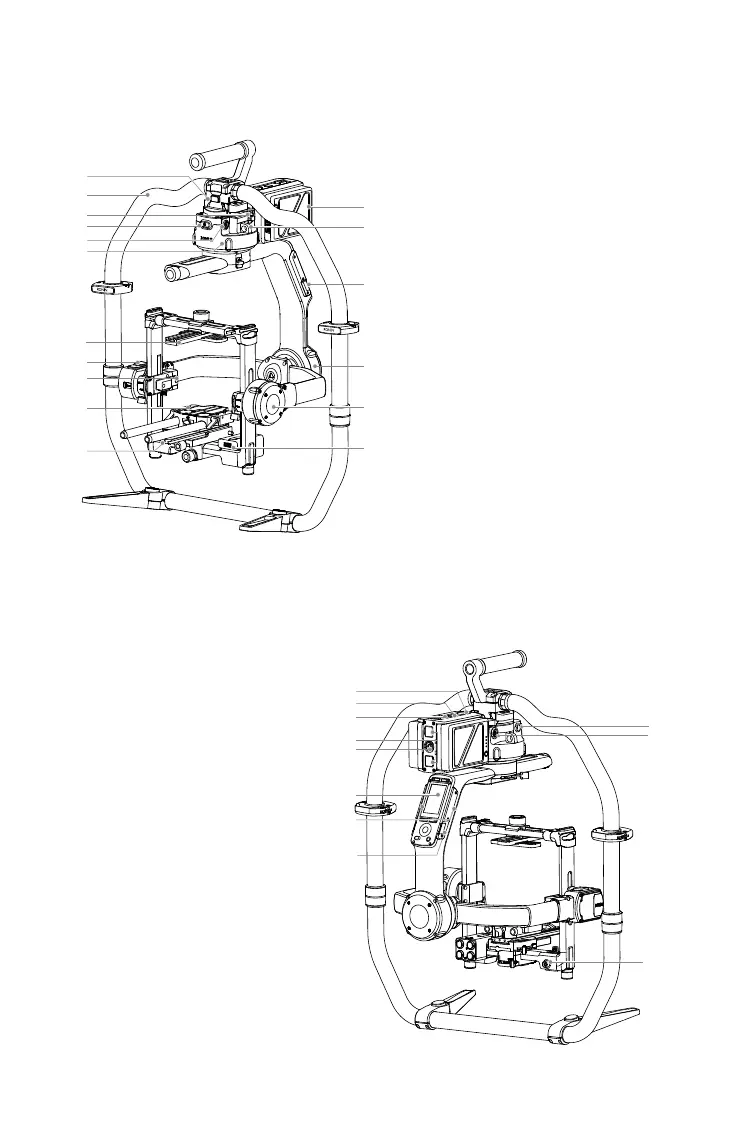

Ronin 2 Diagram
1. Gimbal Dovetail Mount
2. Ronin 2 Grip
3. SDI-Out Port
4. Power Button
5. 14.4 V Accessory Power Port
6. Pan Motor
7. Camera Top Cross Bar
8. Built-in GPS
9. SDI-in Port
10. 15 mm Rod and Focus Rod
Mount
11. Camera Base Plate
12. Power Hub
13. Tilt Motor
14. Roll Motor
15. USB Type-C Port
16. Safety Hole
17. Battery Mount/Intelligent
Batteries
1
2
3
4
5
6
7
8
9
10
11
12
13
15
17
16
14
23
18
19
20
21
22
26
27
28
24
25
18. Battery Mount Release Button
19. Secondary Power Button
20. Battery Eject Buttons
21. 14.4 V P-Tap Port
22. 22.8 V DC-out Port
23. Built-in Touch Panel
24. Built-in Antennas
25. D-Bus Port
26. 14.4 V Accessory Power Port
27. DC-in Port
28. 14.4 V Accessory Power Port

dji RONIN 2 Specifications

General

Gimbal Accuracy	±0.02°
Gimbal Type	3-axis
Pan Range	360°
Operating Frequency	2.4 GHz
Battery Voltage	22.2 V
Compatibility	Various cameras and accessories
Payload Capacity	13.6 kg
Battery Life	2.5 hours
Operating Temperature	-20°C to 50°C
Tilt Range	-135° to 135°
Roll Range	360°
Connectors	USB
Charging Time	Approx. 90 minutes (using DJI Charger)
