Slide Gate Protection
Fence
Operator
Pedestrian
Access
Fence
Sidewalk
Reverse
Loop
Reverse (Open)
Loop
Open Loop
(Optional)
1
1
1
2 3
4

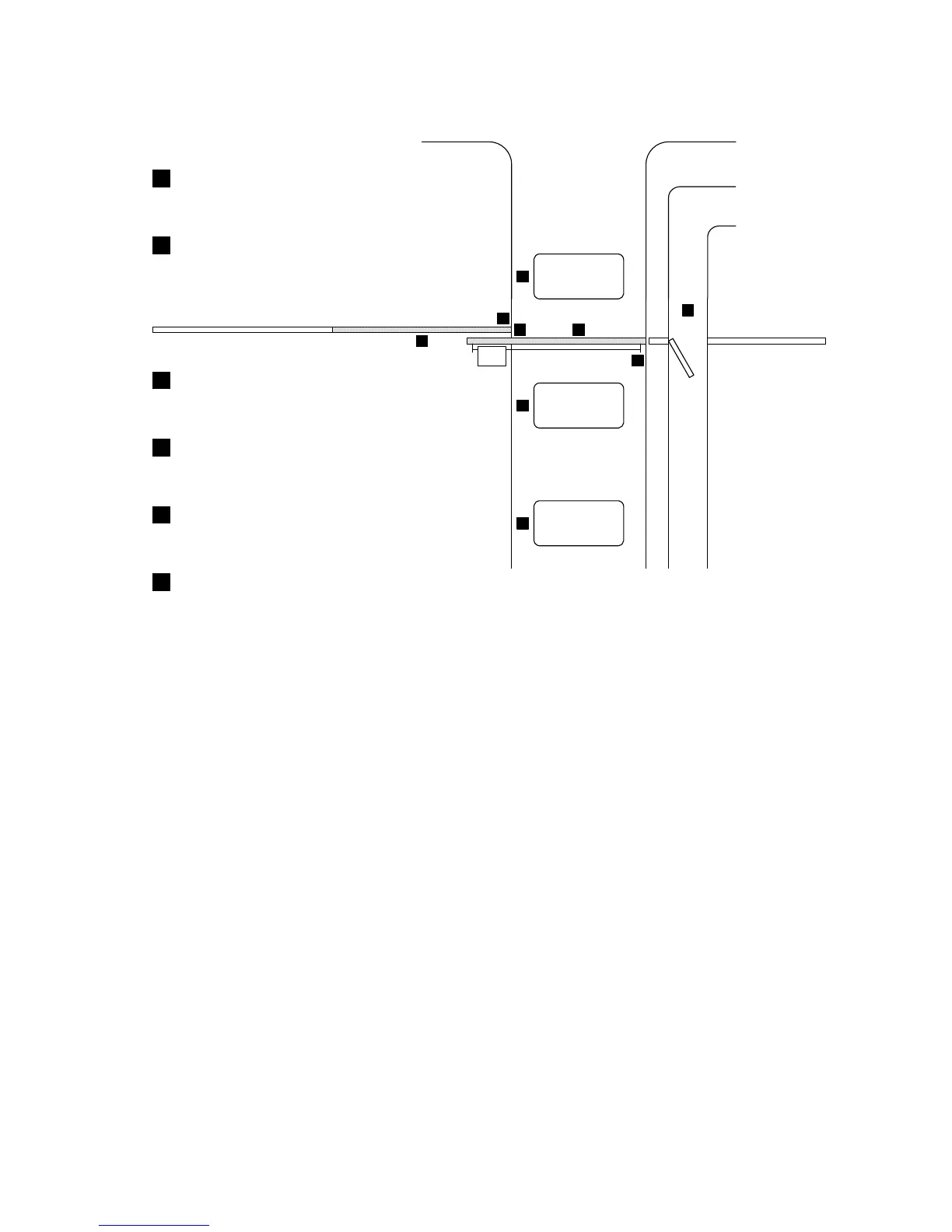

Loops to help minimize the potential of the gate to
close when a vehicle is present. Number and
placement of loops is dependent on the application.
1
Contact sensor installed on the fence to help minimize
the potential of entrapment between the gate and
fence.
2
Non-contact sensor to help minimize the potential
of the gate closing on vehicular or other traffic that
loops cannot sense.
3
Non-contact sensor to help minimize the potential
of entrapment during the back travel of the gate.
4
5
Warning signs are to be placed on each side of the
gate so that they are easily visible from either side
of the gate.
5
5
A separate pedestrian access located so
pedestrians cannot come in contact with the
vehicular gate.
6
6
