2. There are glove compartment travel stops on both
sides of the glove compartment door. Partially close
the glove compartment door and push inward to
release the glove compartment travel stop on one
side and repeat this procedure for the opposite side.
3. Pull the right hand side of the glove compartment
door toward the rear of the vehicle to disengage the
glove compartment door from its hinges.
NOTE:
When disengaging the glove compartment door
from its hinges, there will be some resistance.
4. With the glove compartment door loose, remove the
glove compartment tension tether and tether clip by
sliding the clip toward the face of the glove compart-
ment door and lifting the clip out of glove compart-
ment door.
5. Remove the filter cover by disengaging the retaining
tab and mid way snap that secures the filter cover to
the HVAC housing. Disengage the mid way snap by
pulling the door outward. Unhinge the filter cover on
the right side to fully remove the cover.
6. Remove the cabin air filter by pulling it straight out
of the housing.
7. Install the cabin air filter with the arrow on the filter
pointing toward the floor. When installing the filter
cover, make sure the retaining tabs fully engage the
cover.
CAUTION!
The cabin air filter is identified with an arrow to indi-
cate airflow direction through the filter. Failure to
properly install the filter will result in the need to
replace it more often.
8. Reinstall the glove compartment door on the door
hinge and reattach the tension tether by inserting
the tether clip in the glove compartment and sliding
the clip away from the face of the glove compart-
ment door.
9. Push the door to the near closed position to reen-
gage the glove compartment travel stops.
NOTE:
Ensure the glove compartment door hinges and
glove compartment travel stops are fully engaged.
ACCESSORY DRIVE BELT
INSPECTION
WARNING!
•
Do not attempt to inspect an accessory drive belt
with vehicle running.
•
When working near the radiator cooling fan, dis-
connect the fan motor lead. The fan is temperature
controlled and can start at any time regardless of
ignition mode. You could be injured by the moving
fan blades.
•
You can be badly injured working on or around a
motor vehicle. Only do service work for which you
have the knowledge and the proper equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent
mechanic.

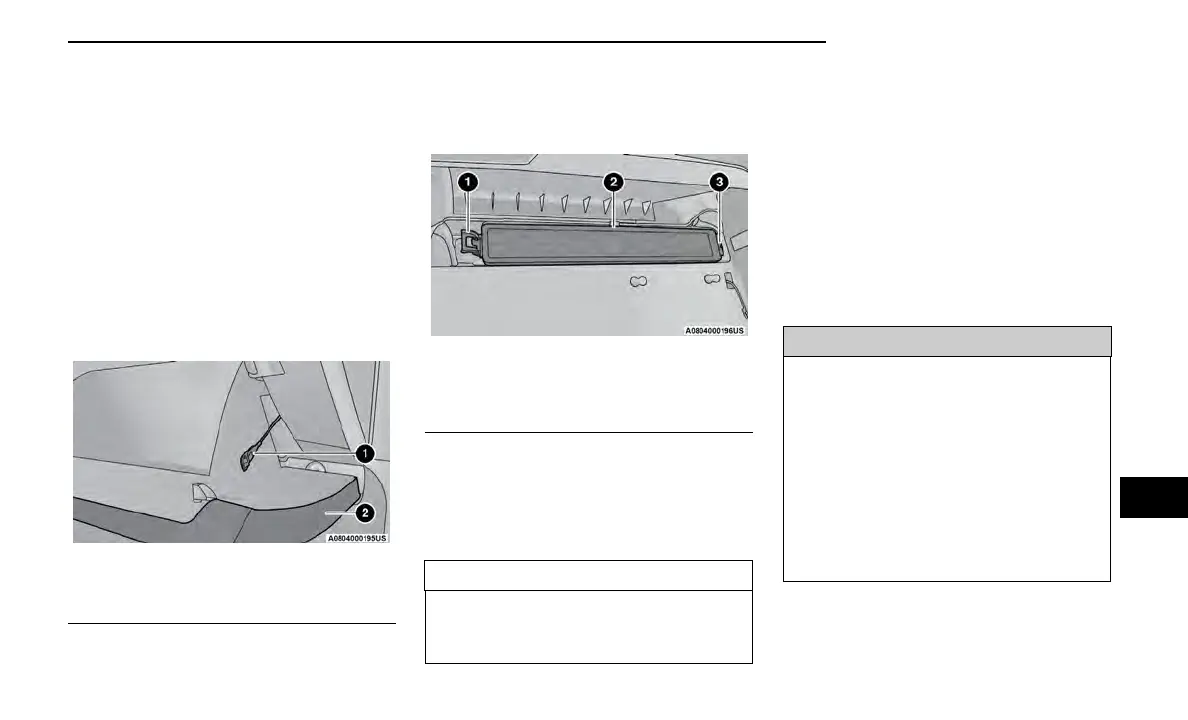

Right Side Of Glove Compartment
1 — Glove Compartment Tension Tether
2 — Glove Compartment Door
Cabin Air Filter Cover
1 — Retaining Tab
2 — Mid Way Snap
3 — Filter Cover Hinge
SERVICING AND MAINTENANCE 217
