INSTRUMENT CLUSTER
DESCRIPTIONS
1. Tachometer
○
Indicates the engine speed in revolutions per
minute (RPM x 1000).
2. Speedometer
○
Indicates vehicle speed.
3. Temperature Gauge
○
The temperature gauge shows engine coolant
temperature. Any reading within the normal
range indicates that the engine cooling system
is operating satisfactorily.
○
The pointer will likely indicate a higher tempera-
ture when driving in hot weather, up mountain
grades, or when towing a trailer. It should not be
allowed to exceed the upper limits of the normal
operating range.
WARNING!
A hot engine cooling system is dangerous. You or oth-
ers could be badly burned by steam or boiling cool-
ant. You may want to call an authorized dealer for
service if your vehicle overheats
page 221.
CAUTION!
Driving with a hot engine cooling system could dam-
age your vehicle. If the temperature gauge reads “H”
pull over and stop the vehicle. Idle the vehicle with
the air conditioner turned off until the pointer drops
back into the normal range. If the pointer remains on
the “H”, turn the engine off immediately and call an
authorized dealer for service.
4. Instrument Cluster Display
○
The instrument cluster display features a driver
interactive display
page 69.
5. Fuel Gauge
○
The pointer shows the level of fuel in the fuel
tank when the Keyless Push Button Ignition is in
the ON/RUN position.
○
The fuel pump symbol points to the
side of the vehicle where the fuel
door is located
page 114.
NOTE:
The hard telltales will illuminate for a bulb check when
the ignition is first cycled.
INSTRUMENT CLUSTER DISPLAY
Your vehicle is equipped with an instrument cluster dis-
play, which offers useful information to the driver.
Opening/closing of a door will activate the display for
viewing, and display the total miles, or kilometers, in
the odometer. Your instrument cluster display is
designed to display important information about your
vehicle’s systems and features. Using a driver interac-
tive display located on the instrument panel, your
instrument cluster display can show how systems are
working and give you warnings when they are not. The
steering wheel mounted controls allow you to scroll
through the main menus and submenus. You can
access the specific information you want and make
selections and adjustments.
LOCATION AND CONTROLS
The instrument cluster display is located in the center
of the instrument cluster.
Scan me

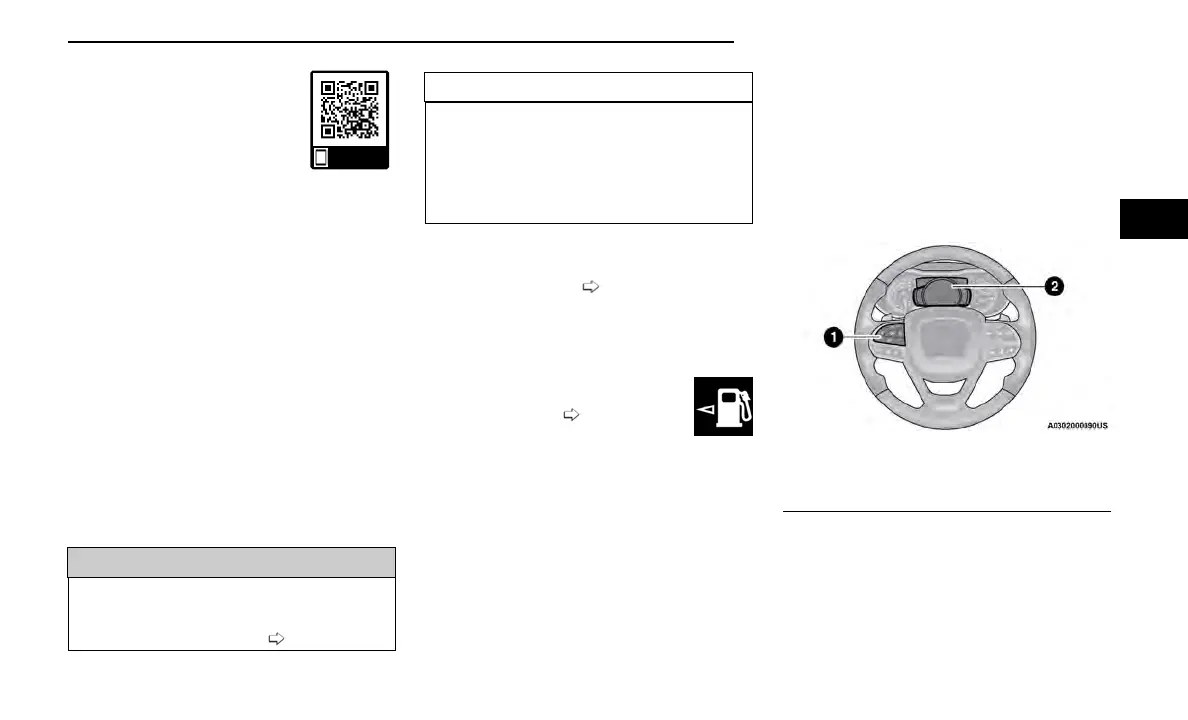

Instrument Cluster Display/Controls Location
1 – Instrument Cluster Display Controls
2 – Instrument Cluster Display Screen
GETTING TO KNOW YOUR INSTRUMENT PANEL 69
3
