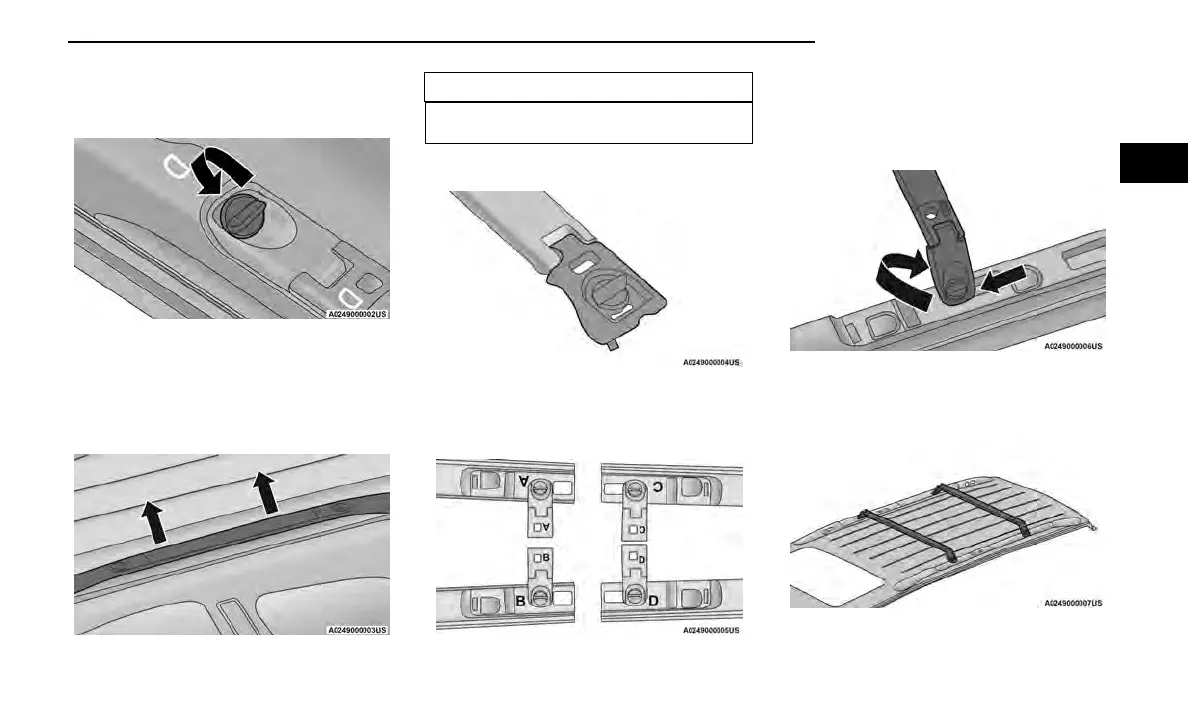

DEPLOYING THE CROSSBARS
1. Starting with one crossbar, completely loosen the
thumb screws at both ends of the crossbar.
NOTE:
The thumb screws cannot be fully removed.
2. Remove the crossbar from the stowed position by
sliding the crossbar towards the center of the roof.
Repeat with the crossbar on the opposite side.
CAUTION!
Use care when removing and handling the crossbars
to prevent damage to the vehicle.
3. Starting with one crossbar, bend down the pivot sup-
ports at each end.
4. Position the crossbars across the roof making sure
the letters on the crossbars align with the matching
letters on the side rail.
5. Slide the crossbar into the deploy position by moving
it towards the matching letter in the side rail. Be
sure the crossbar is fully deployed with the crossbar
pushed as far into the slot as possible. Once the
crossbar is in place, tighten both thumb screws
completely.
6. Deploy and tighten the second crossbar to complete
the deployment of the crossbars.
Thumb Screw
Removing Crossbars
Bending Pivot
Positioning Crossbars
Installing Crossbars
Deployed Crossbars
