FUSES
General Information
WARNING!
•
When replacing a blown fuse, always use an appro-
priate replacement fuse with the same amp rating
as the original fuse. Never replace a fuse with
another fuse of higher amp rating. The use of a
fuse with a rating other than indicated may result
in a dangerous electrical system overload. If a
properly rated fuse continues to blow, it indicates a
problem in the circuit that must be corrected.
Never replace a blown fuse with metal wires or any
other material. Do not place a fuse inside a circuit
breaker cavity or vice versa. Failure to use proper
fuses may result in serious personal injury, fire
and/or property damage.
•
Before replacing a fuse, make sure that the igni-
tion is off and that all the other services are
switched off and/or disengaged.
•
If the replaced fuse blows again, contact an autho-
rized dealer.
•
If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, transmission system) or steering
system blows, contact an authorized dealer.
The fuses protect electrical systems against excessive
current.
When a device does not work, you must check the fuse
element inside the blade fuse for a break/melt.
Also, please be aware that using power outlets for
extended periods of time with the engine off may result
in vehicle battery discharge.
Underhood Fuses
The Power Distribution Center is located in the engine
compartment near the battery jump start posts. This
center contains cartridge fuses, micro fuses, relays,
and circuit breakers. A description of each fuse and
component may be stamped on the inside cover, other-
wise the cavity number of each fuse is stamped on the
inside cover that corresponds to the following chart.
CAUTION!
When installing the power distribution center cover, it
is important to ensure the cover is properly posi-
tioned and fully latched. Failure to do so may allow
water to get into the power distribution center and
possibly result in an electrical system failure.

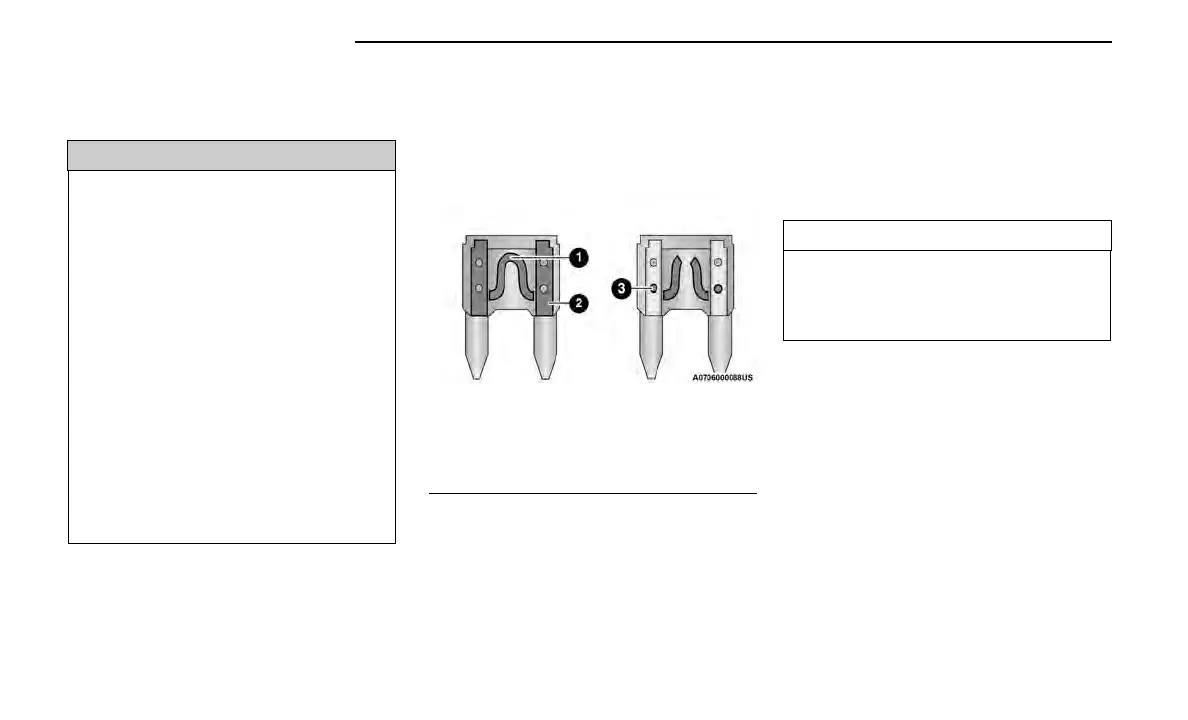

Blade Fuses
1 — Fuse Element
2 — Blade Fuse with a good/functional fuse element
3 — Blade Fuse with a bad/not functional fuse element
(blown fuse)
226 SERVICING AND MAINTENANCE
