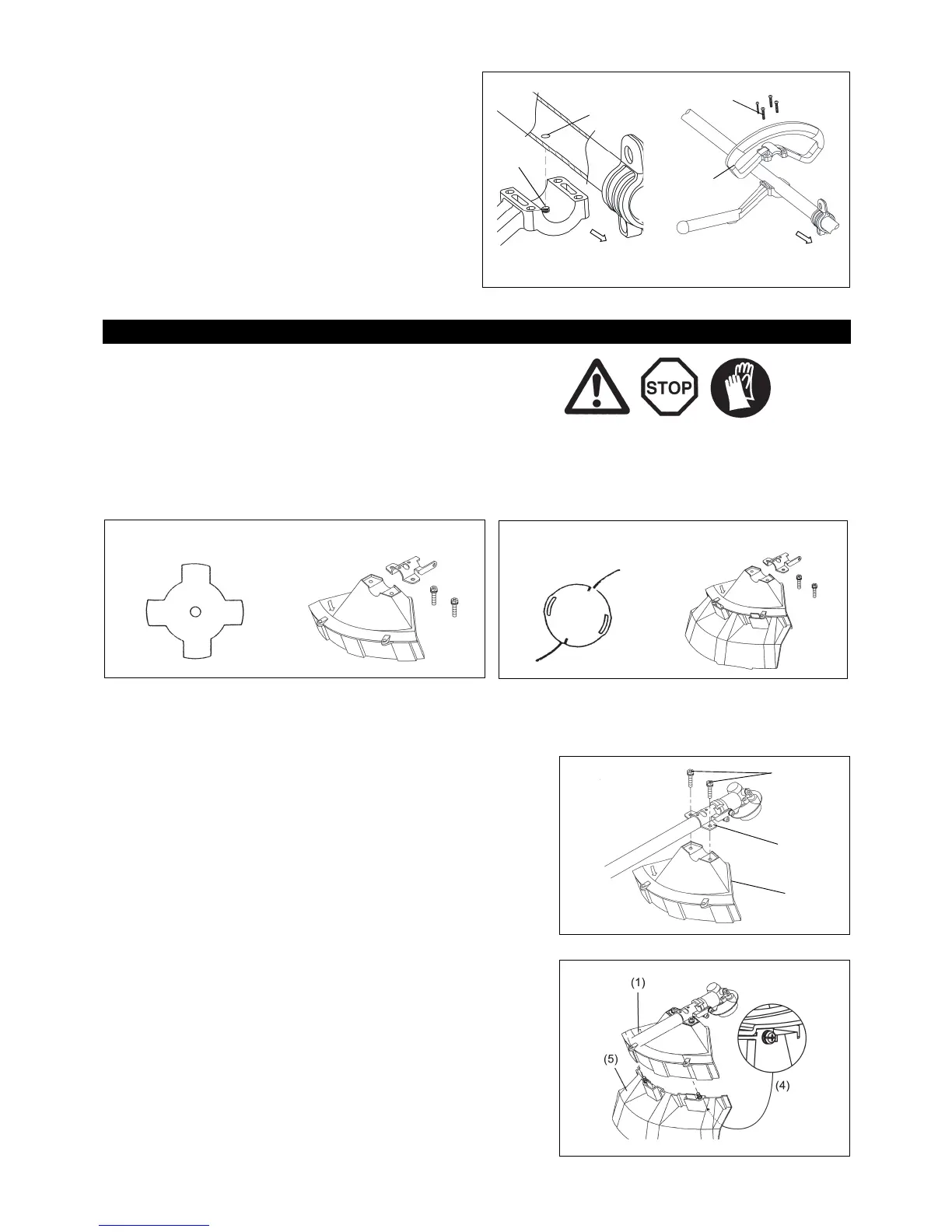

Dolmar MS-27 U - Mounting the protector; For loop handle model

10
For loop handle model
– Put the thread (1) on handle holder into the location hole (2) on tube.
– Fix the assistant handle (3) onto the barrier.
– Tighten the 4 bolts (4) M5 x 30.
To meet the applicable safety standards, you must only use the tool/protector
combinations indicated in the table.
Always use genuine DOLMAR cutter blades/nylon cutting head.
– The cutter blade must be well polished, and free of cracks or breakages. If the
cutter blade hits against a stone during operation, stop the engine and check
the blade immediately.
– Polish or replace the cutter blade every three hours of operation.
– If the nylon cutting head hits against a stone during operation, stop the engine
and check the nylon cutting head immediately.
CAUTION: The appropriate protectors must always be installed for your own
safety and in order to comply with accident-prevention regulations.
Operation of the equipment without the guard installed is prohibited.
– Fix the protector (1) to the clamp (3) with two M6 x 30 bolts (2).
– When using the nylon cutting head, fit the protector (5) into the protector (1),
and tighten them with two screws (4).
Mounting the protector
(2)
(1)
Engine
(4)
(3)
Engine
MS-27 C
Star Blade Protector for metal blades Nylon cutting head Protector for cord cutter
(2)
(3)
(1)
