Page 10
x
3
2
1
4
--->
5
6

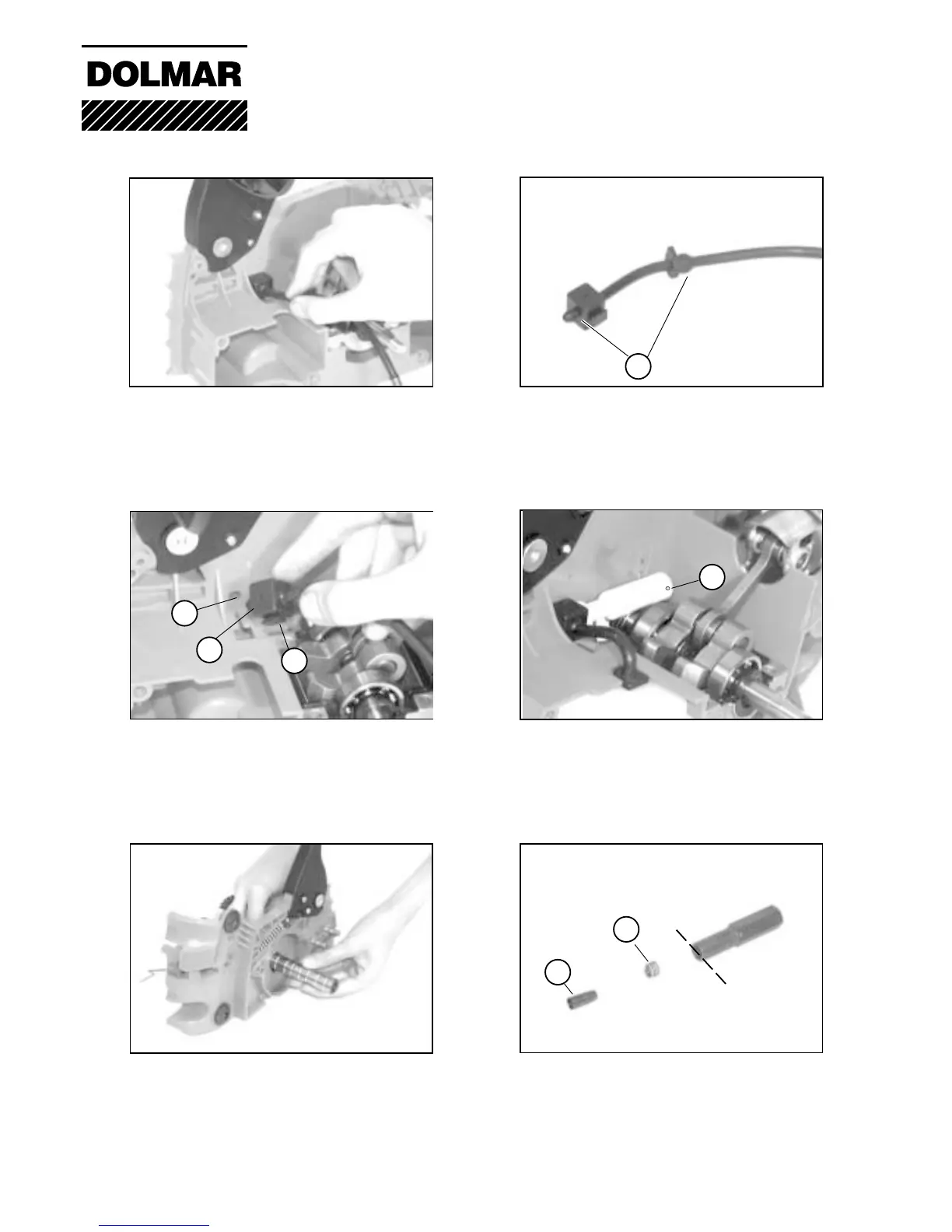

03-04 Removing the oil suction pipe
Remove the oil suction pipe from the
housing.
03-04 Replacing the oil suction pipe
Insert guide tie (1) into the housing
pocket, push connection nipple (2) firmly
into the hole (3).
03-04 Replacing the oil suction pipe
Grease the flange areas (x) for better
sealing and easier assembly with silicone
paste 980.001.100.
03-04 Installing the oil pump
Position oil pump on worm, insert holder
pivot into the hold (4) of the oil pump and
screw up.
03-04 Removing the worm
Twist the removal and assembly tool
950.500.060 onto the worm (left-handed
thread) and remove from the crankshaft.
03-05 Replacing the worm
Twist the worm (5) into the removal and as-
sembly tool until it is flush (left-handed thread).
Position assembly sleeve 944.500.580 (6)
onto the crankshaft. Push the worm onto the
crankshaft as far as it will go.
03 Oil pump
