Page 16

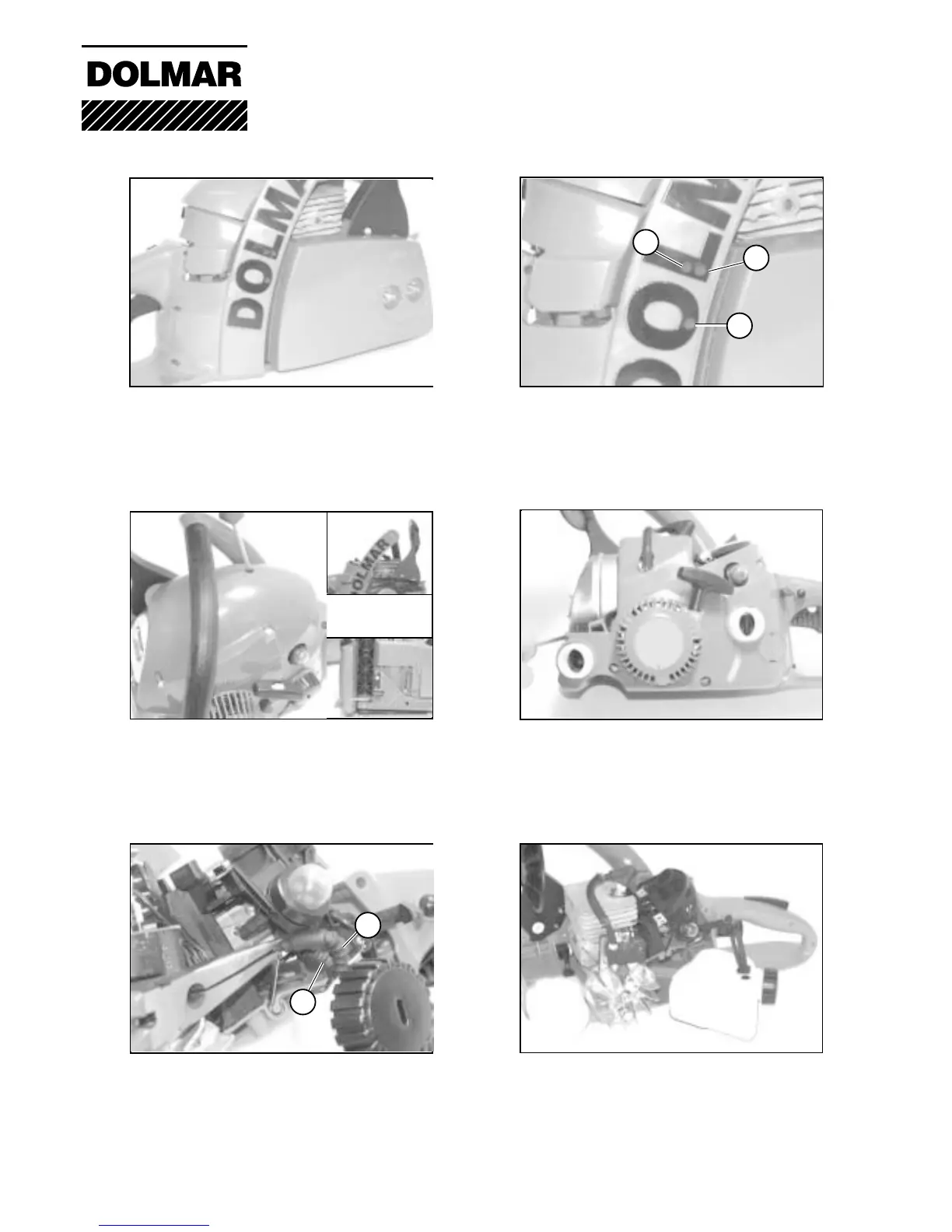

06-02 Removing the carburetor
Remove the motor hood and tubular
handle as described in introduction.
06-02 Removing the carburetor
Empty tanks if necessary. Remove side cover
after loosing the 4 screws. If oil or fuel is left in
the tank, replace tank cover.
06-02 Removing the carburetor
Pull the fuel line to the carburetor (1) and
the hose to the primer (2) off the outlet
using pliers.
06-01 Setting the carburetor
The injector needles L + H and the stop
screw S can be reached via holes in the
tubular handle strut.
S
L
H
2
1
06-02 Removing the carburetor
Pull fuel tank out of the housing opening
and place so that no fuel can leak out.
06-01 Setting the carburetor
For the basic setting, screw in both screws as far as
they will go. Then unscrew both screws 1 turn. If the
motor turns too quickly (taking the chain with it) or too
slowly (the motor dies off), adjust the screw S.
06 Carburetor / intake system
