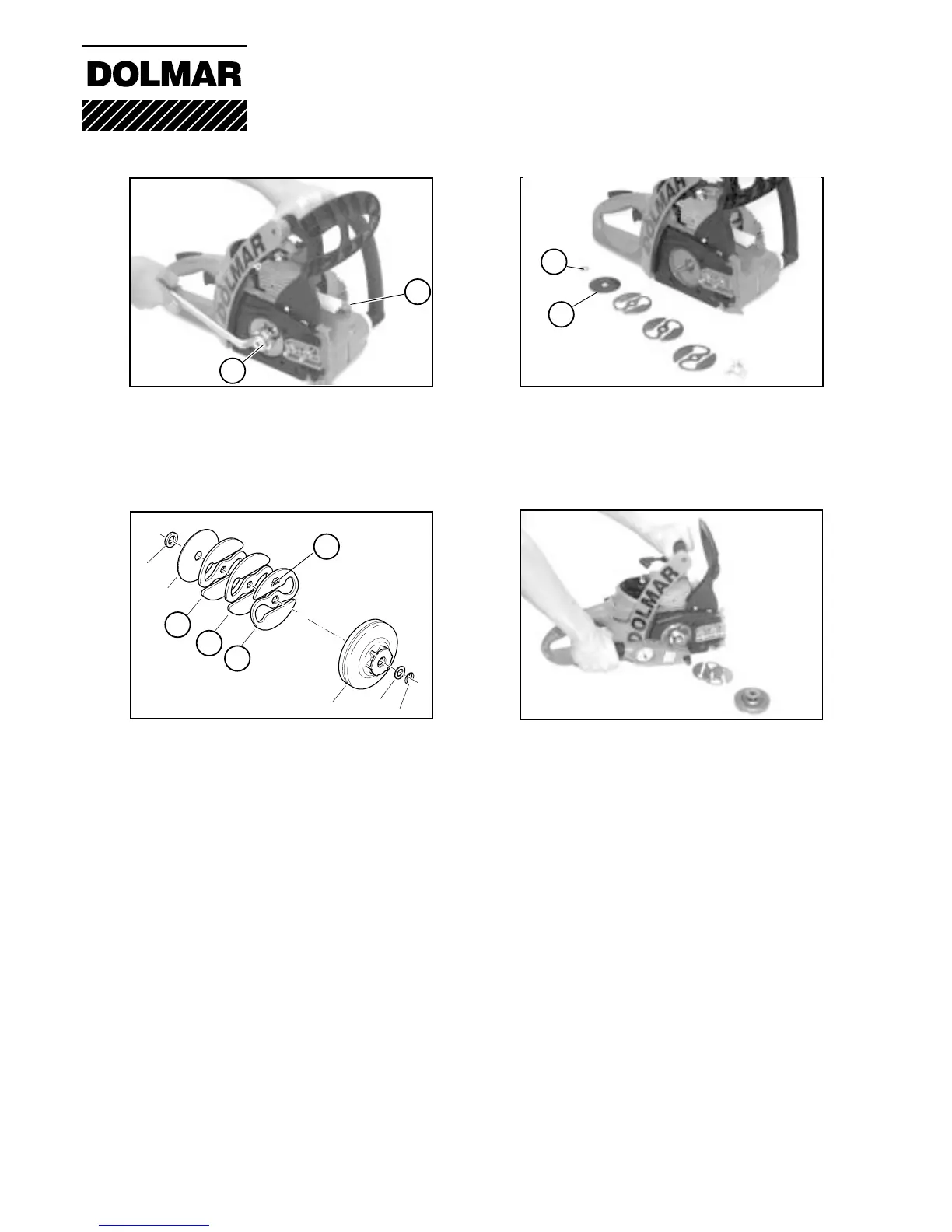

02-01 Removing the centrifugal clutch
Remove exhaust, block motor with piston stop
wedge (1). Loosen blades (2) individually with
special nut 944.500.695.
02-01 Mounting the centrifugal clutch
The thrust washer (3) must be inserted
before the cover washer (4). Make sure
that the assembly sequence is followed
and the blades properly installed.
02-01 Mounting the centrifugal clutch
Blade (5) + (6) w. DOLMAR marking
pointing towards the motor, blade (7) with
marking (8) outwards.
02-01 Mounting the centrifugal clutch
Tighten blades individually with the assem-
bly tool 944.500.695 to 20 +5 Nm.
02 Centrifugal clutch
