Page 21

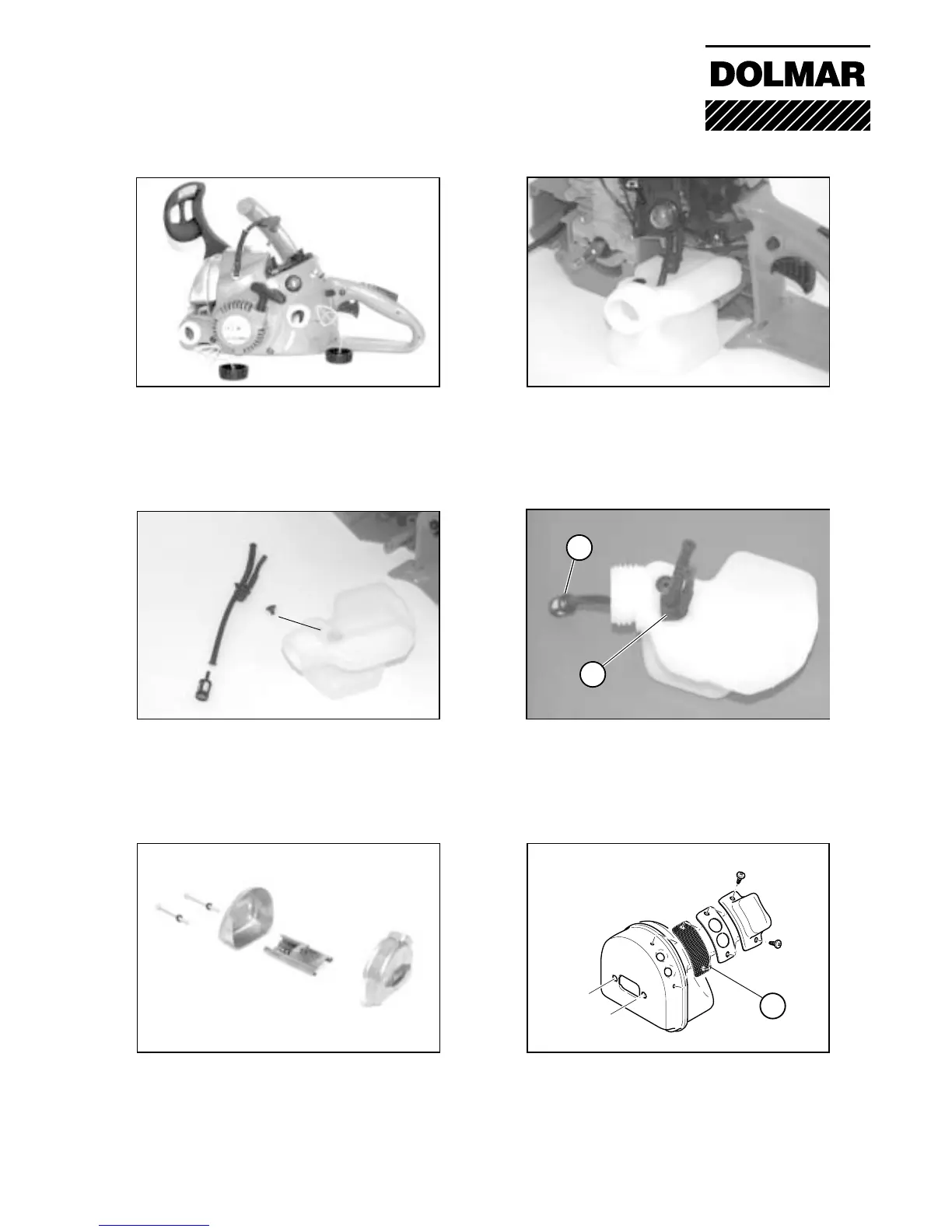

09-01 Removing the fuel tank
Remove the tubular handle, motor hood
and starter cover as described elsewhere.
09-01 Removing the fuel tank
Pull the fuel line and primer line off the
connector on the carburetor and primer
using pliers. Pull slot-in tank out of hous-
ing.
09-02 Ventilation and air supply to tank
The air valve is pressed into a hole in the
tank wall.
09-05 Fuel filter
The suction head (1) at the end of the
suction pipe (2) is inserted into the rubber
shaped hose. replace suction head peri-
odically.
Special parts for
USA, CDN, AUS, NZ
09-08 Removing and mounting the
exhaust
The sound absorber is fixed to the cylin-
der with 2 screws which also fix the inside
parts. After test run, tighten the screws at
12 Nm.
09-08 Cleaning the spark arrester
screen
(if provided)
Remove and clean the spark arrester
screen (3) regularly, or if power is reduced
at the latest.
1
2
3
09 Fuel tank / exhaust
