Page 5
Oil and fuel tank
To remove the starter, the oil and fuel
tank cover must be removed. If a residue
is to be left in the tanks, screw tank cover
back on after removing the starter.
Starter
For all work on the motor, ignition and
carburetor, oil pump and starter, the
starter must be removed after 4 screws
(5) have been removed.
5

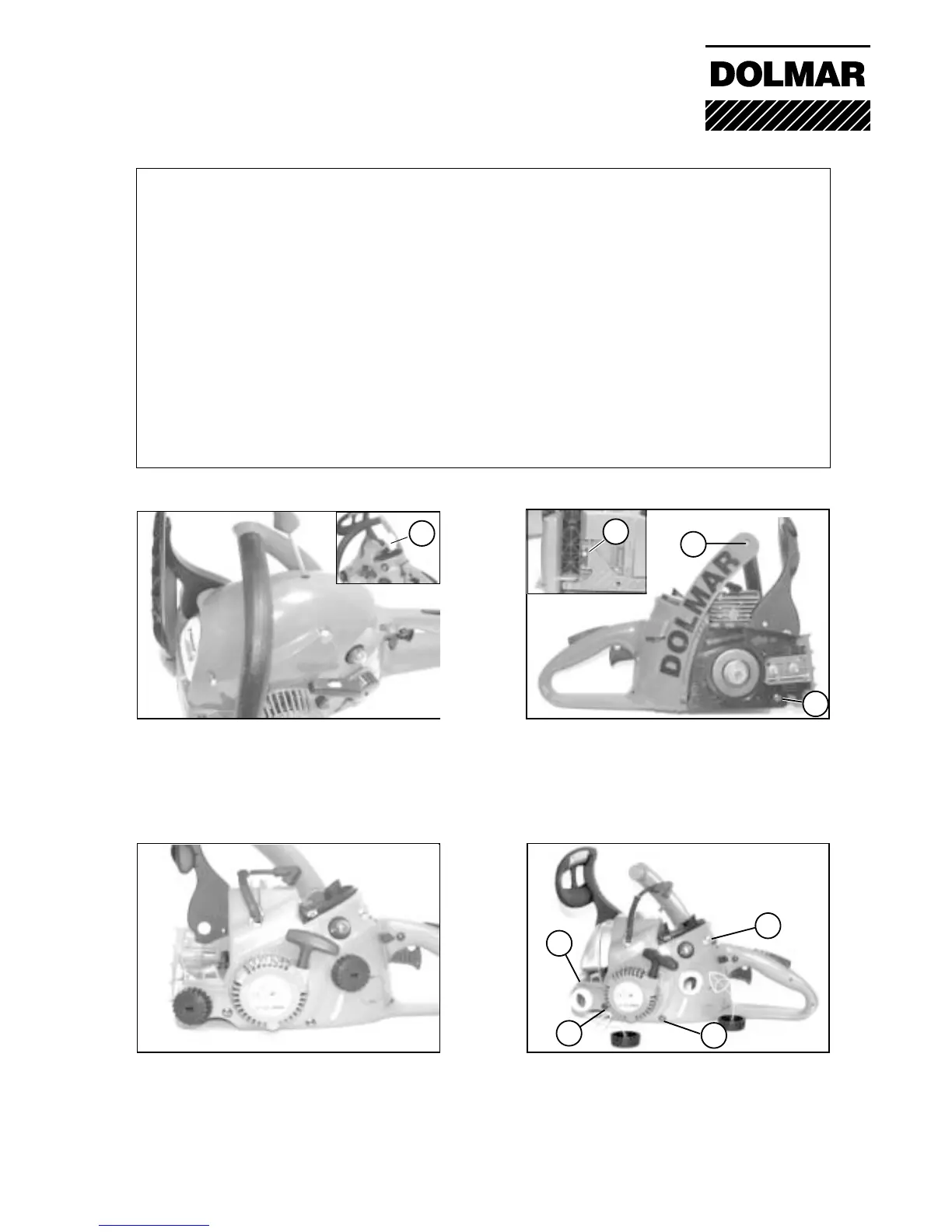

General information on repairing the PS-34
The PS-34 chain saw is a small reasonably chain saw.
The objective in developing this saw was to provide a low-priced appliance that could
be assembled as easily as possible. Many of the design features are therefore based
on the concept of easy assembly.
The following tips summarise our experience in terms of carrying out repairs rapidly.
In general, we recommend that you use an electric screwdriver.
The air filter hood is fixed with 3 screws and
must be removed for all work on the motor. In
order to keep out dirt and foreign bodies,
always close the suction duct which is open to
the top.
1
4
2
3
Remove tubular handle.
The tubular handle is removed if work is
carried out on the carburetor, ignition or
motor. For this, remove 2 screws on the
clutch side (2) + (3), plus (4) on the
underside out of the motor housing.
5
5
5
