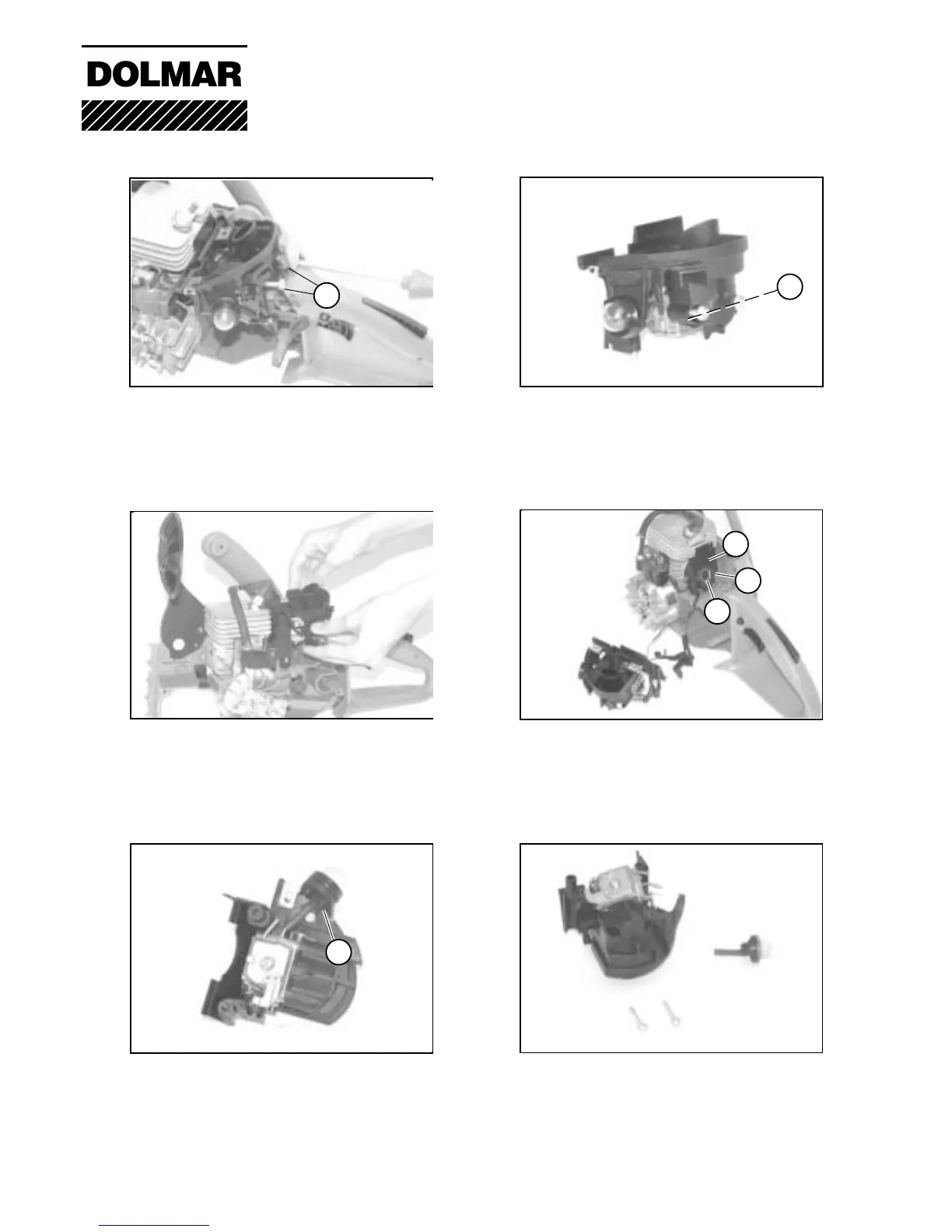

06-02 Removing the carburetor
The carburetor clip (3) with the suction
hose (4) remains on the cylinder. Make
sure that the loose insert (5) does not get
lost.
06-02 Removing the carburetor
Remove connecting muff upwards with a
slight movement to the left.
06-02 Removing the carburetor
Remove carburetor screw and remove the
carburetor from the carburetor carrier,
twisting slightly.
06-02 Removing the carburetor
Loosen 2 horizontal screws (1). The right
screw is reached through the slit between
the tank and the motor housing.
1
06-02 Removing the carburetor
Loosen the two horizontal screws until the
heads are exactly on a level with the
external contour of the connecting muff
(2). Only in this way can the connecting
muff be removed.
2
3
4
5
06-02 Removing the carburetor
Loosen the clip fixing of the primer (6)
and remove with hose.
6
