Page 25

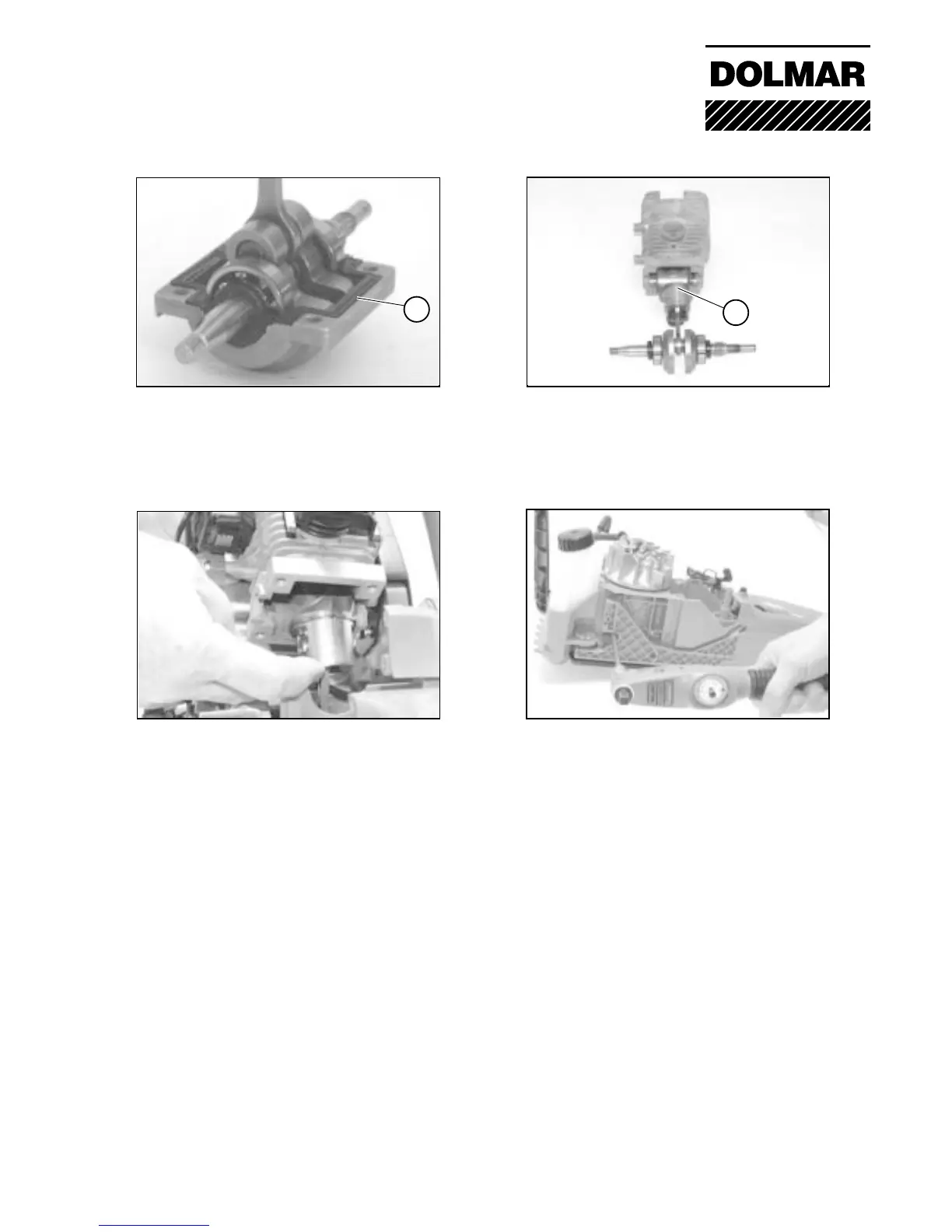

10-01 Mounting the driving mechanism
Replace the crank case seal (1) and
insert dry without sealant.
1
10-01 Mounting the driving mechanism
Position piston ring joint (2) in the direction of
the intake/carburetor side, the arrow on the
piston then points towards the exhaust, the oil
pump worm points towards the right if the
carburetor side is upwards.
7
10-01 Mounting the driving mechanism
The cylinder has a cone so that the piston
can be inserted into the cylinder guide
without tools.
10-01 Mounting the driving mechanism
Tighten the 4 driving mechanism screws
firmly with a force of 12 Nm.
11 Crankshaft
