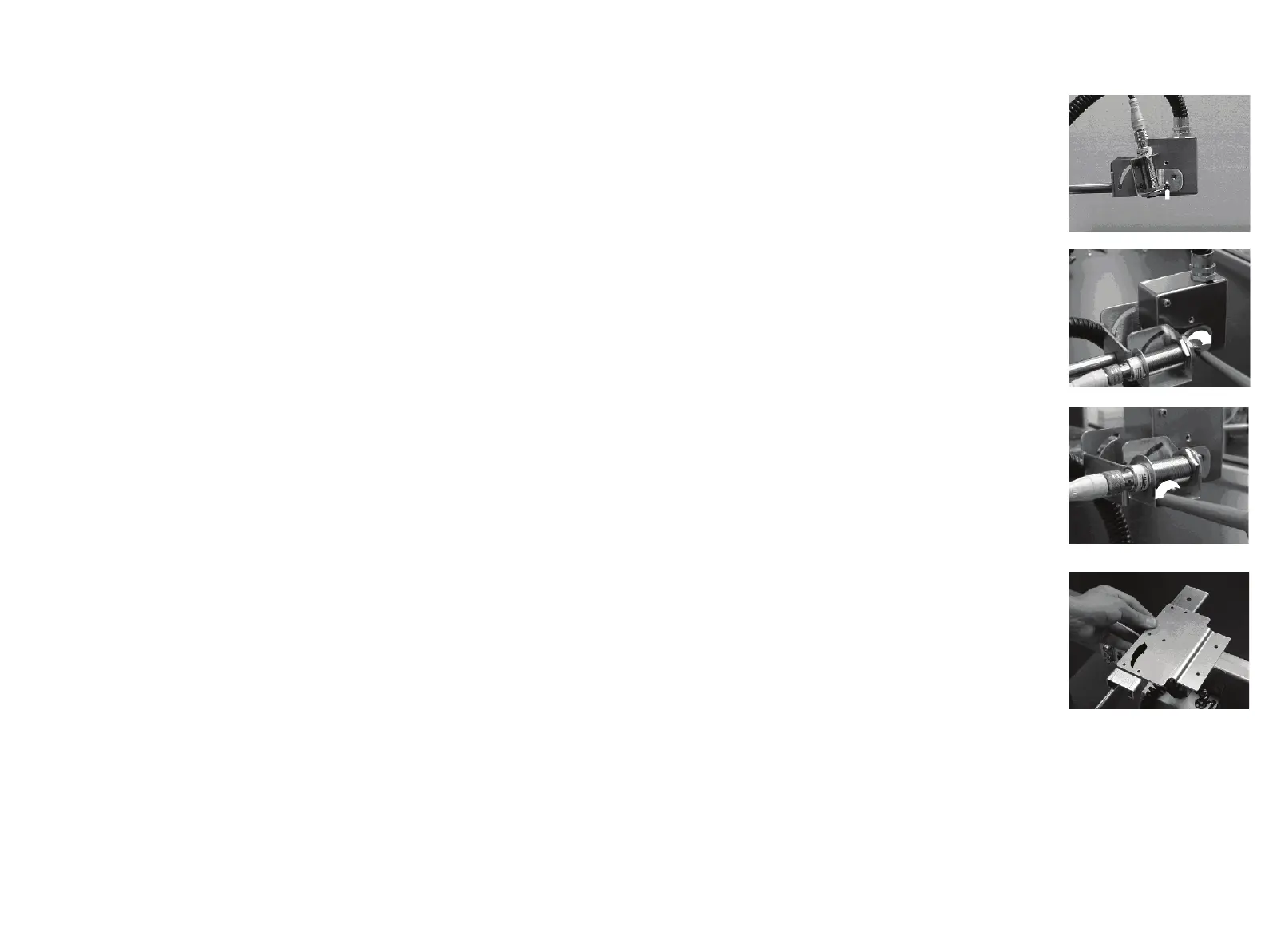

(5) There are two pivot points on the remote
head bracket. The top right position is for
forward and angled printing. The lower left
pivot point (indicated) is the mounting
position for printing down.
(6) Align the fixing holes and the pivot point on
the mounting bracket and refit the screws
enough to secure the head. Do not over
tighten.
(7) The sensor must also be inverted by
slackening the bottom left screw on the
sensor bracket and pushing the sensor up so
that it is facing down, ensuring that the
sensor is not triggered by the conveyor.
(8) The remote head mounting plate must be
removed and turned over to compensate for
the drop in height due to the new pivot
point. The mounting plate has a bend on
one side that increases the head height by
9mm, see step (3) on page 34. To do this,
dismount the control unit, remove and flip
the plate and remount the unit to the vertical
pillar.
