MAINTENANCE
77144 Issue 8 August 2009 133
EVERY 6 MONTHS
WARNING: Eye protection and gloves should be worn.
Every 6 months the entire unit requires a complete examination. Check the
external and internal tubing and connections for signs of ageing, kinking or
leakage. Any worn parts should be replaced.
The ink filter inside the control unit head (C3000(X) and C1000(X) only) and the
ink filters inside the base will also need to be replaced every 6 months as follows:
CAUTION: Remove power to the printer.

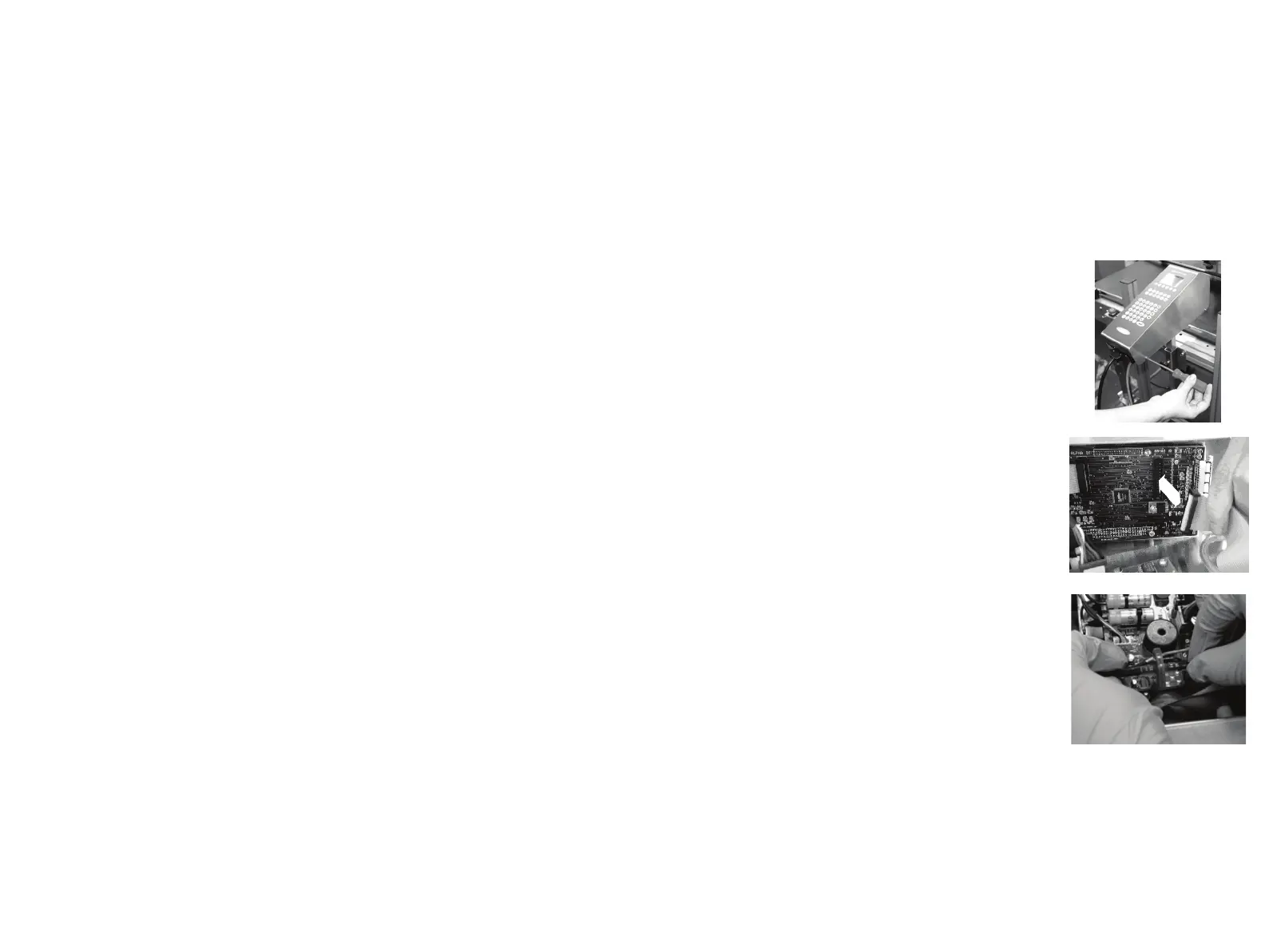

(1) Remove the control unit head from the
mounting post and place on a flat surface.
Remove the four screws around the bottom
of the control unit head and carefully remove
the control unit cover by lifting it straight up.
(2) Disconnect the cover from the power loom.
The cover can sit on its side, do not leave
the cover to hang.
(3) Detach the tubing from both ends of the
filter and remove the filter. Dispose of the
old filter in accordance with local
regulations.
(4) Connect the tubing to the new filter and
ensure the power loom is reconnected.
Replace the control unit.
