MAINTENANCE
134 77144 Issue 8 August 2009
Now replace filters in the base unit as follows:
(5) Open the base door (it may be easier to
remove both the outer and inner door for
access).
(6) Replace the larger 6
μ filter and the two
smaller 5
μ air filters. These filters have twist
fittings
(7) Refit the inner door, if removed in step (5),
including the ink pipe and ink bottle
connector. Check for any ink leaks before
the inner door is secured fully shut.
2L Base Unit:

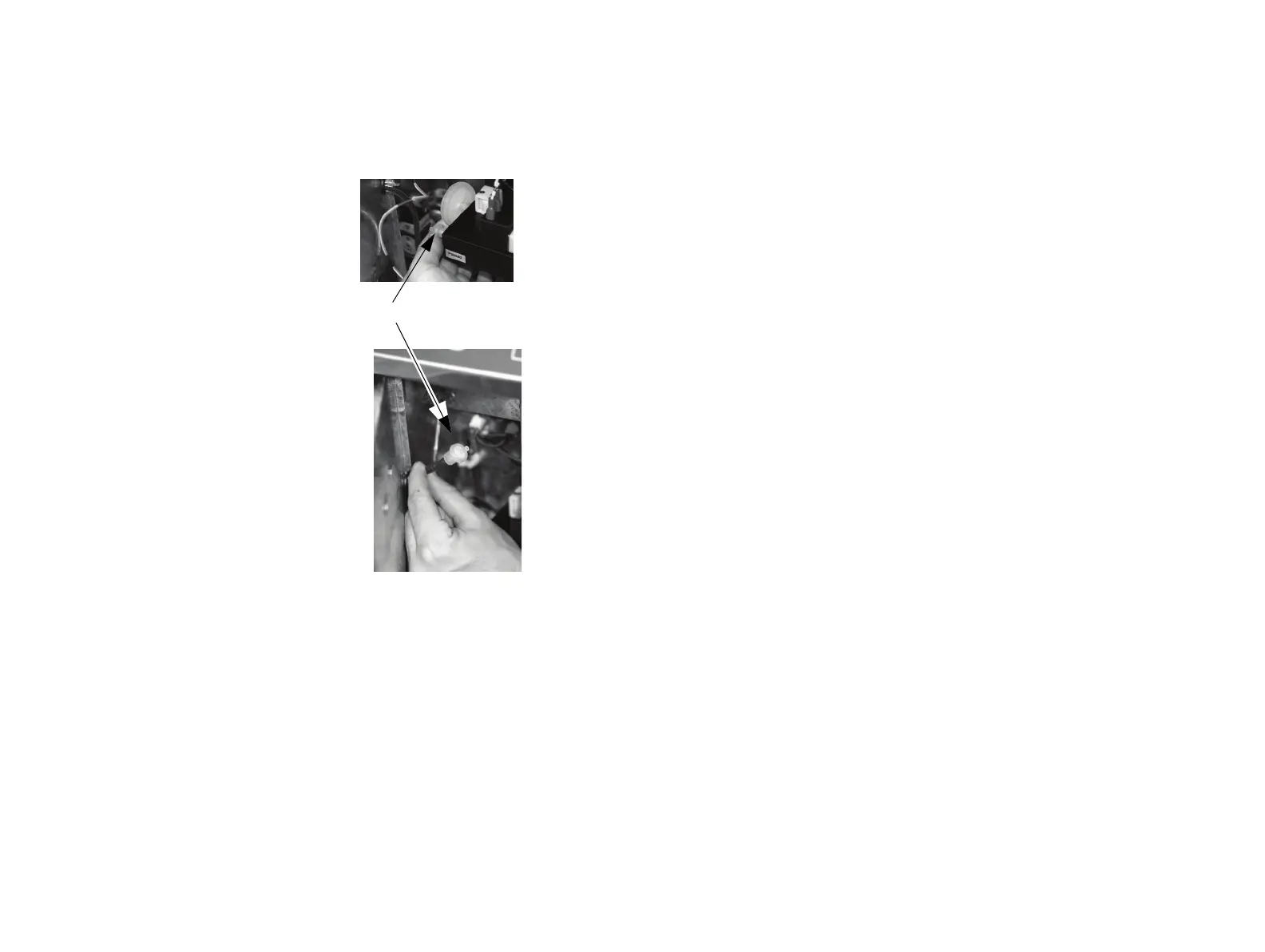

(1) Replace the 50mm diameter filter between
the chamber and the outer pump, in the 2L
Base Unit.
