BASIC OPERATIONS
44
77144 Issue 8 Augu
st 2009
(5)

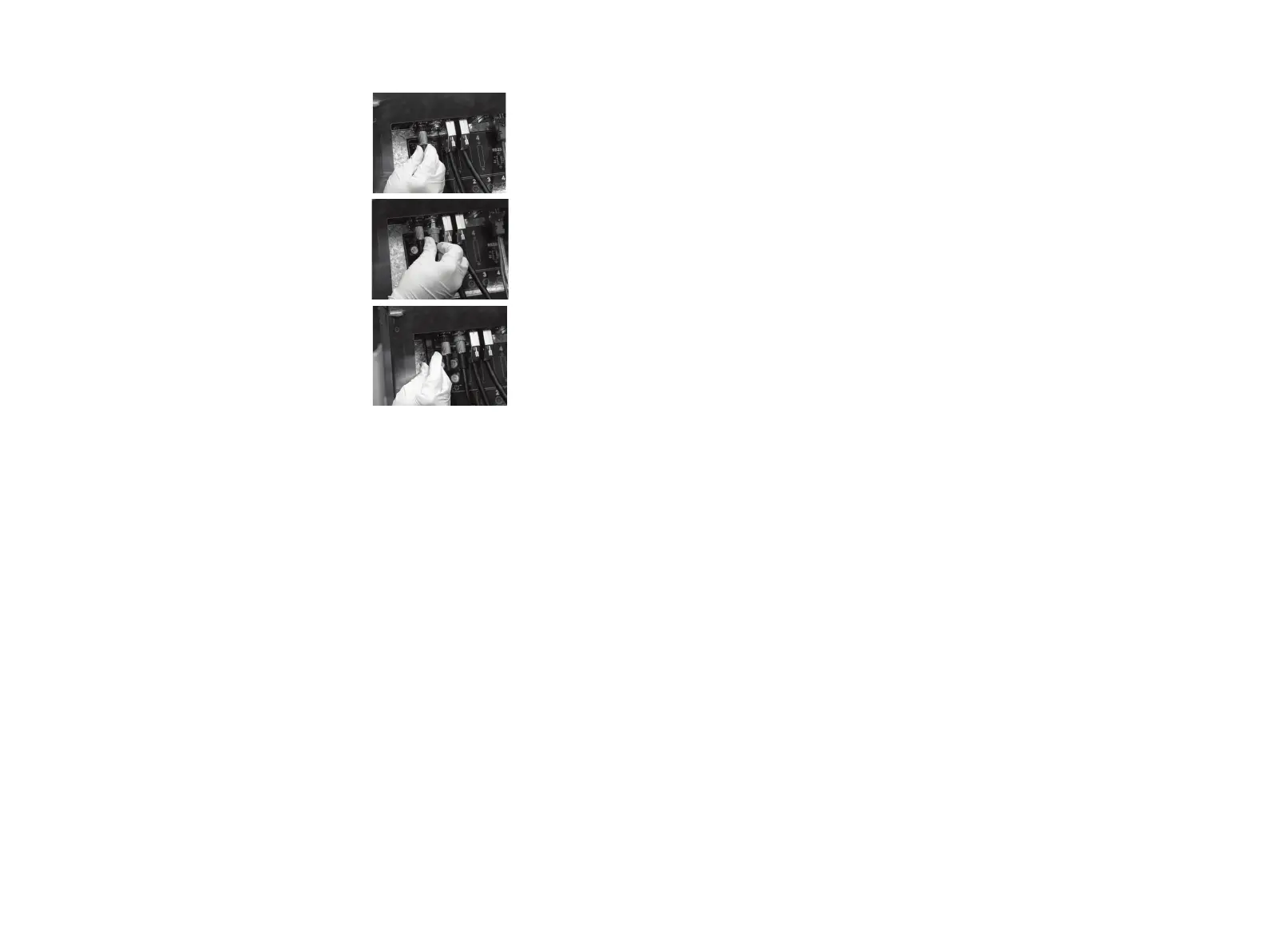

Connect the pr
oduct sensor and shaft
encoder
.
(6)
If used, connect the beacon(s).
(
7
)
P
o
w
e
r
t
o
t
h
e
b
a
s
e
u
n
i
t
i
s
s
u
p
p
l
i
e
d
v
i
a
t
h
e
connector on the r
ear and switched o
n via
the illuminated swit
ch on the side
.
.
43
45
Table of Contents
Operation and Maintenance
3
Ec Declaration of Conformity
4
Table of Contents
5
Safety Information
9
Safety Recommendations
9
Fire Safety
9
Maintenance
9
Ink
10
Eye Contact
10
Skin Contact
10
Ingestion
10
Inhalation
10
Storage and Disposal
10
Introduction
11
Printer Specification
13
Print Head (Remote)
13
Control Unit
13
Base
14
Data Input
14
Environment
14
Base Unit Connectors (MHB)
15
Basic Operations
16
Base Unit Mounting
23
Dual Mounting Bracket
25
Control Unit Head Mounting
26
Control Unit Height Adjustment
27
Rotating the Remote Head 90° - C3000X and C1000X Only
28
Printing at Angles - C6000I Only
30
PRINT HEAD SETUP - C6000V ONLY
32
Setup Procedure
32
Printing at Angles - C3000X and C1000X Only
34
Head Mounted Box Guide
35
Ship Cap Attachment
36
Releasing the Air Flow Vent
37
Replacing an Ink Bottle
39
200Ml Base
40
Litre Base
41
Interconnections
43
Base Unit
43
Control Units
45
Powering up
47
Priming the Print Head(S)
49
C6000V Priming
50
Priming a Rotated Head - C3000X and C1000X Only
51
Auto Prime
52
Number of Prints
52
Duration
52
Timed
52
Event Driven
52
Control Unit Keypad Layout
53
Basic Interface Controls
55
Functions and Menus
56
Keypad Functions
57
Function Keys - C6000 MF Only
58
LCD Screen Icons - C6000 MF Only
58
LCD Screen Icons
60
Interface Map
63
Setting a Print Job
65
Printing a Default Test Message
68
Printing a Saved Message
69
Deleting a Saved Message
71
Programming the Printer
72
Selecting a Language
72
Setting the Clock
73
Rollover Time
75
Enter Number of Shifts
76
Checking Current Box Count
78
Erasing the Control Unit Memory
79
Print Direction
80
Issue 8 August
80
Orientation
81
Ink Cost Calculator
81
Variables
82
Prompted Variable
82
External Variable
82
External Setup
83
Options
85
Message Revert
85
Communications
85
Action Comms
85
Echo Data
85
Satellite Mode
85
Switches
85
Shaft Encoder
85
Shaft Encoder Test
86
Screen Saver
86
Acknowledgement
86
Record Change
86
Bottle out
86
Extra Port
87
Retrieve Mode
87
Sensor
87
Auto Prime
87
IP Settings
87
Formatting Messages
88
Creating a Message
88
Edit Which Message? Sub-Menus
90
Select Alternative Font
91
Entering Text
92
Message Layout
97
Adding Spaces
99
Saving a Message
100
Message Attributes
101
Edit
101
Entering a Sell by Date
101
Real Time Commands
103
Counting
107
Character Map
109
Bar Codes
110
Creating a Bar Code
114
Data Matrix Codes
115
QR Codes
116
Logos (Graphics)
118
Adjusting Parameters
120
Message Parameters
120
Maintenance
129
Routine Maintenance
129
Daily Maintenance
130
Changing the Ink Collection Sponge
131
Every 6 Months
133
Cleaning the Nozzle Plate
135
C6000V Head Cleaning
135
Relocating the Unit
136
C1000X & C3000X Print Head Positioning
137
Dimension Drawings
139
Troubleshooting
159
Operator Notes
164
Message Notes
164
Index
167
Issue 8 August
168
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Domino C6000 plus and is the answer not in the manual?
Ask a question
