BASIC OPERATIONS
46 77144 Issue 8 August 2009

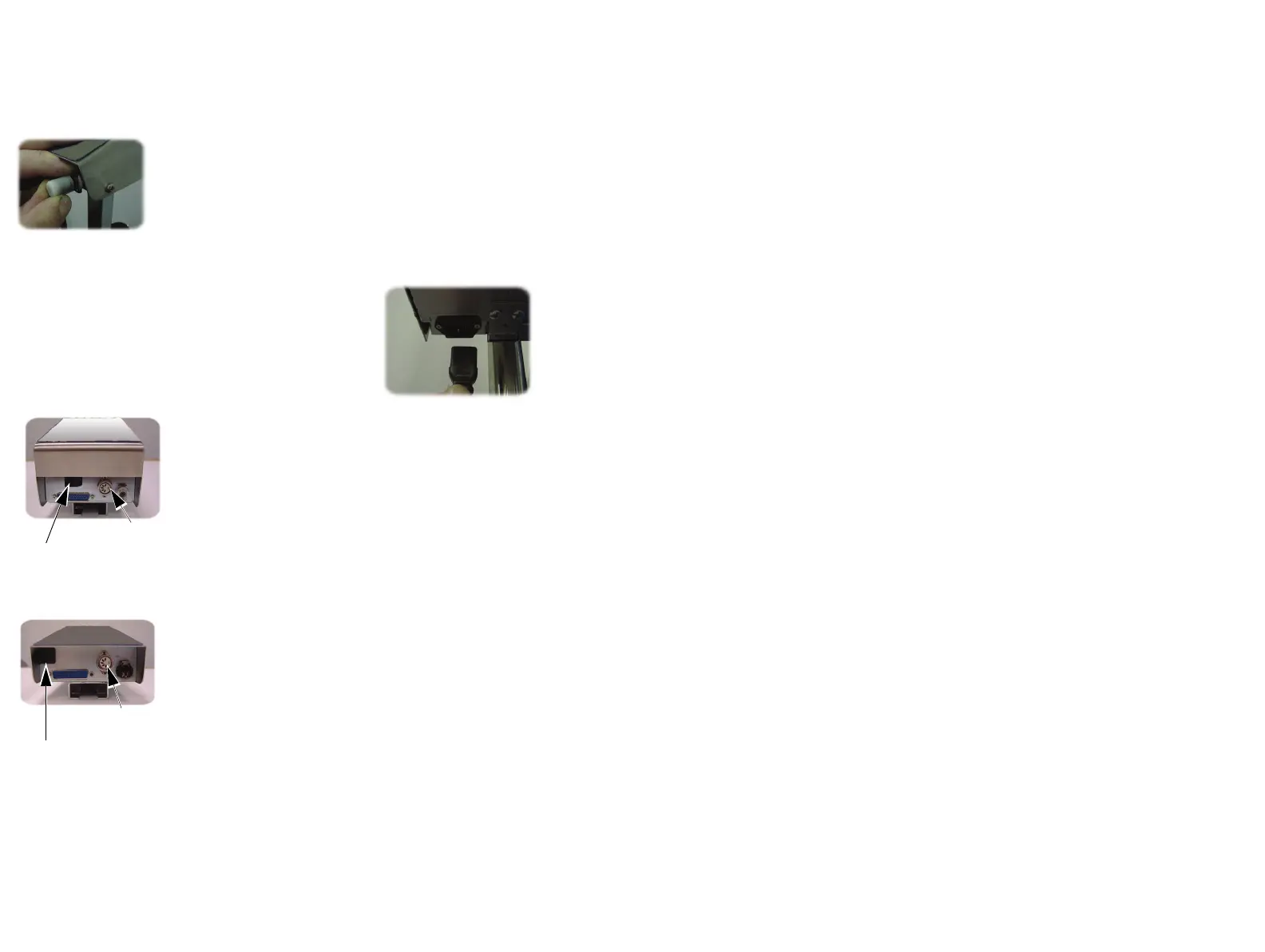

(4) To disconnect the ink line, push the locking plate on
the side of the connection port. The connector will
release with ease. The QR plug and connection port
both contain spring loaded valves that automatically
seal to prevent ink loss.
CAUTION:The ink line should always remain connected when
the printers power is on, if disconnecting the ink line ensure the
power is turned off.
(5) The power is supplied via a connection on the
bottom of the base unit. The power cable should
be connected to a mains supply.
(6)The Ethernet connection is required if
communicating using TCP/IP protocol.
(7)The Multi-head Base Unit supplies all control units
fitted, with the print-go and shaft encoder signals.
(8)On 2L and 200ml bases only. The product sensor is
required for the C6000(i), C6000v, C3000X and
C1000X which connects into the sensor 5 pin DIN
socket.
C6000(i), C6000v
C3000 & C1000
Sensor
Socket
Sensor
Socket
Ethernet
Connection
Ethernet
Connection
