Tire pressure monitoring system
4.3-11

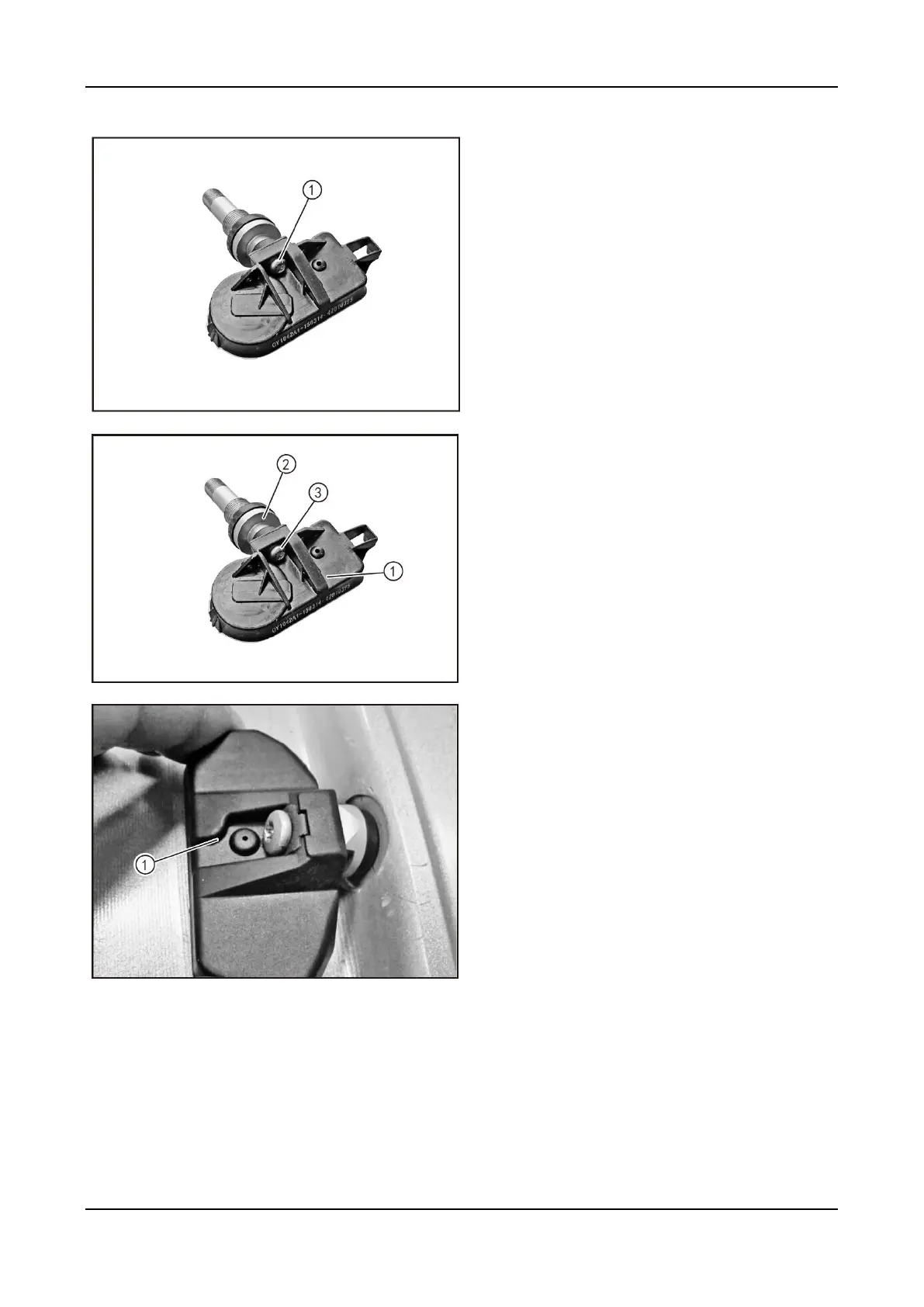

• Remove the fixing bolts (1) of the tire
pressure sensor with a T10 screwdriver bit
to separate the tire pressure sensor from the
valve.
2- Refitting
• Position the tire pressure sensor (1) and the
valve (2) to refit them in place.
• Tighten the connecting screws (3) of the
valve and the tire pressure sensor with a
T10 screwdriver bit.
• Align the tire pressure sensor (1) with the
mounting holes of the valve to refit it in
place. By applying pressure (you can hold
the sides of the sensor by hands), the
gasket on the valve is tightly fitted to the rim
mounting plane.
