Vehicle System Specification 17

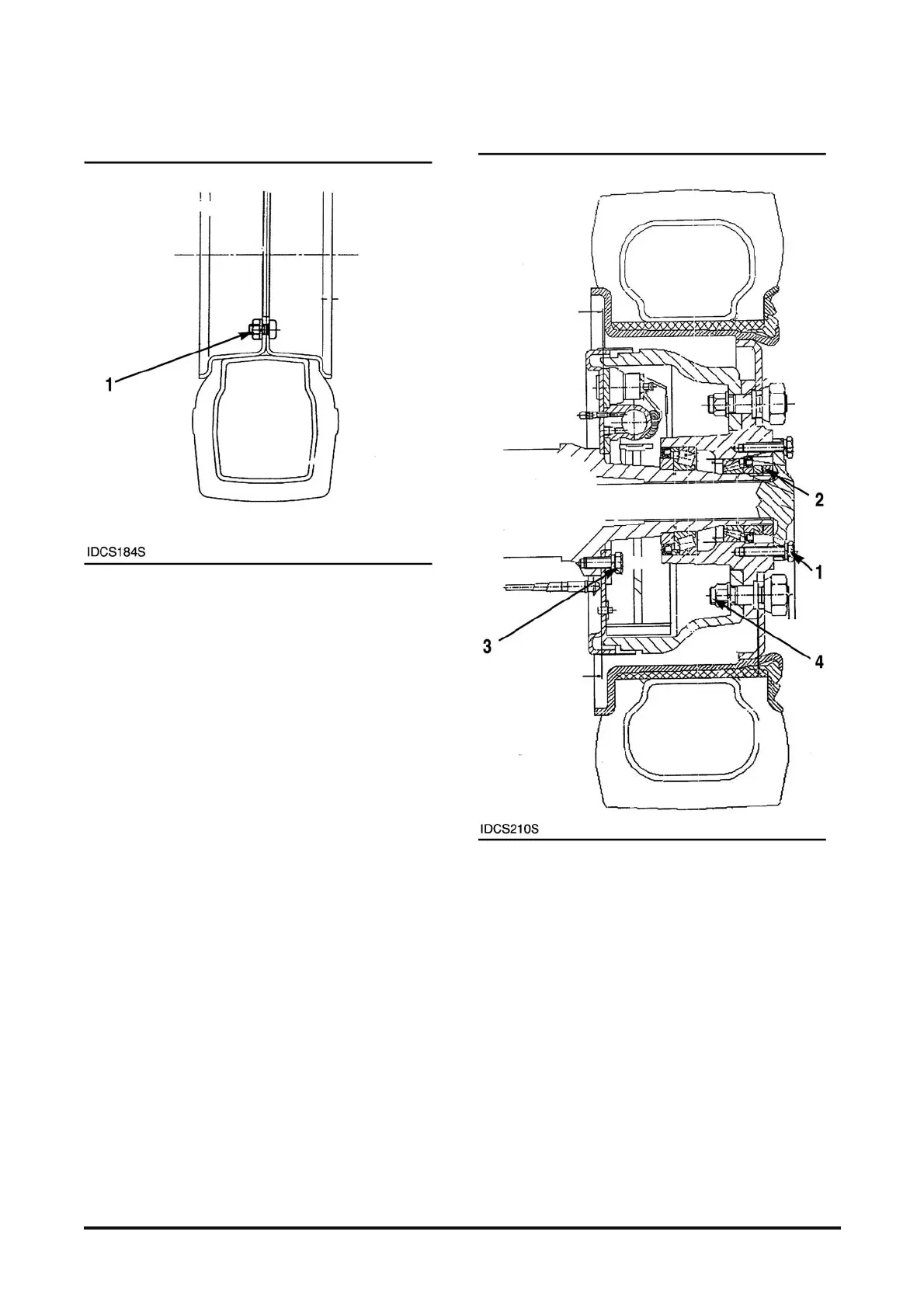

Steer Wheel Mounting
(1) Torque for bolts and nuts that hold steer wheel
.................................. .120±20 N·m (90±15 lb·ft)
Shoe Brake
(1) Axle shaft bolt...............110±10N·m(81±7.4 lb·ft)
(2) Nut.............................200±10N·m(148±7.4 lb·ft)
(3) Torque for bolts that hold plate to final drive
cover.........................180±30N·m(133±22 lb·ft)
(4) Torque for nuts that hold brake drum to hub
.................................460±20N·m(339 ±15 lb·ft)
